Juwel 10
- For tractors from 150 - 450 hp
- 3 - 7 furrows
- Body spacing 90, 100 or 120 cm
No soil too heavy
The 3 - 7 furrow Juwel 10 is specially designed for heavy conditions and large tractors with up to 450 hp and can be an alternative to the semi-mounted plough. Like the Juwel 8, it is available with OF equipment for onland or in-furrow ploughing. For safer transport and to reduce the load on the tractor, special top link damping and a transport function are available.

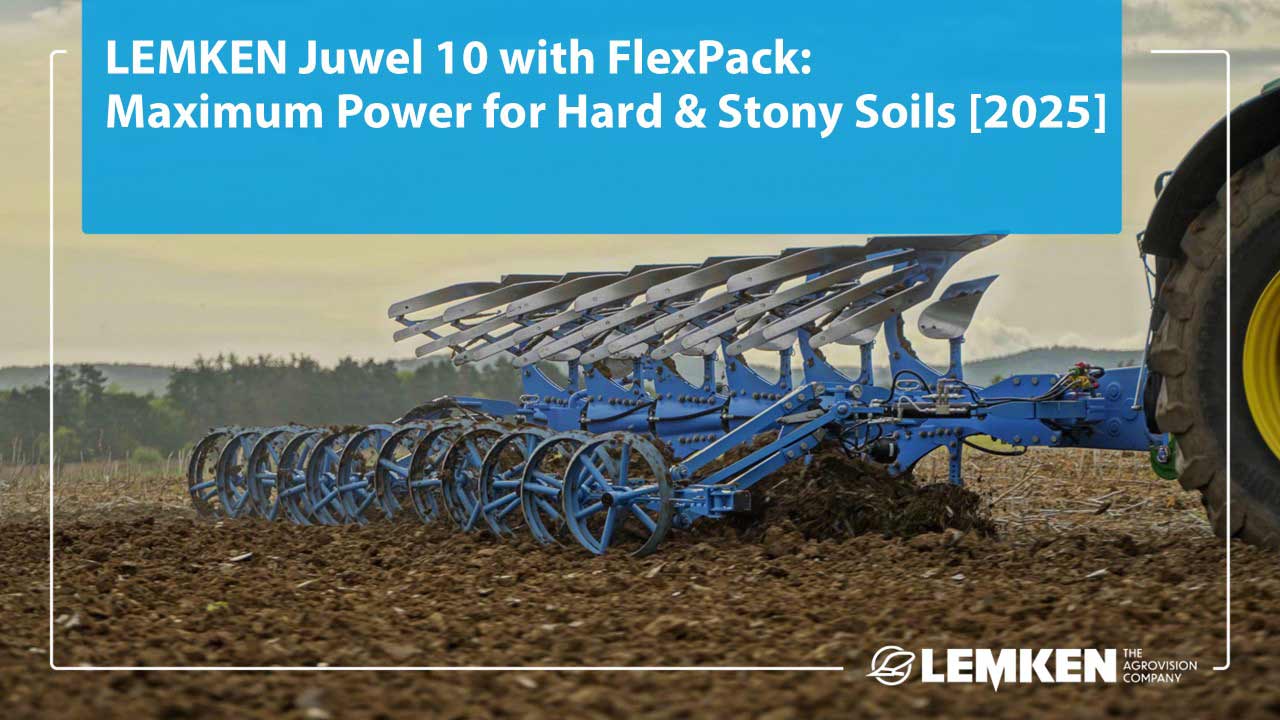

Videos
- Frame dimension 160 x 160 x 10 mm
- Frame height 80 cm, 85 and 90 cm as option
- Body spacing 90, 100 or 120 cm
- Also available with hydraulic overload protection OptiStone (U-versions)
- Choice from an extensive range of plough bodies, skimmers and other equipment
- Also available in OF version for onland and in-furrow ploughing
- Memory turnover device for particularly convenient adjustment available
![Juwel 10 frame strength Juwel 10 frame strength](/fileadmin/_processed_/4/9/csm_juwel-10-rahmenstaerke_3488551c76.jpg)
Design adapted to large tractors
- Lower and upper link points moved further up
- Optimal lower and upper link position with large tractor tyres
![Juwel 10 turnbuckle Juwel 10 turnbuckle](/fileadmin/_processed_/8/0/csm_juwel-10-spindel_f4f106b79d.jpg)
Top link damping protects the machine
An optional damping cylinder in the plough headstock reduces tractor strain and protects both tractor and implement components at headlands and during road transport.
- Less load on the tractor
- Safe and comfortable driving
- Protects the components of the tractor and the plough for a long service life
![Juwel 10 top link damper Juwel 10 top link damper](/fileadmin/_processed_/2/5/csm_juwel-10-oberlenkerdaempfung_8cfc4bc8f2.jpg)
Convenient transport function
In combination with a uni wheel and hydraulic frame swivelling, the Juwel 10 M / M V is also available with special transport equipment,
- The frame swivelling ram offsets bumps in uneven terrain.
- The front steering pin serves as the pivot point.
- No need to uncouple the upper link.
- Safe and comfortable road transport
![Juwel 10 transport Juwel 10 transport](/fileadmin/_processed_/5/3/csm_juwel-10-transport_35008ab8e6.jpg)
Select a model
- M = Mechanical tilt adjustment
- V = Hydraulic working width adjustment
- U = Hydraulic Non-Stop overload safety device OptiStone
Technical data
Juwel 10 M 6 90 | Juwel 10 M 6+1 90 | Juwel 10 M 4 100 | Juwel 10 M 4+1 100 | Juwel 10 M 5 100 | Juwel 10 M 5+1 100 | Juwel 10 M 6 100 | Juwel 10 M 6+1 100 | Juwel 10 M 4 120 | Juwel 10 M 4+1 120 | Juwel 10 M 5 120 | Juwel 10 M 5+1 120 | Juwel 10 M U 6 90 | Juwel 10 M U 6+1 90 | Juwel 10 M U 5 100 | Juwel 10 M U 5+1 100 | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Power requirements (hp) from - to | 210 - 350 | 240 - 400 | 150 - 250 | 180 - 300 | 180 - 300 | 210 - 350 | 210 - 350 | 240 - 400 | 150 - 250 | 180 - 300 | 180 - 300 | 210 - 350 | 210 - 350 | 240 - 400 | 180 - 300 | 210 - 350 |
Power requirements (kW) from - to | 154 - 257 | 176 - 294 | 110 - 184 | 132 - 221 | 132 - 221 | 154 - 257 | 154 - 257 | 176 - 294 | 110 - 184 | 132 - 221 | 132 - 221 | 154 - 257 | 154 - 257 | 176 - 294 | 132 - 221 | 154 - 257 |
Weight (kg) | 1 850 | 2 080 | 1 432 | 1 666 | 1 651 | 1 885 | 1 870 | 2 104 | 1 480 | 1 726 | 1 711 | 1 945 | 2 204 | 2 434 | 1 946 | 2 239 |
Article number | 80 4503L | 80 4504L | 80 4505L | 80 4506L | 80 4507L | 80 4508L | 80 4509L | 80 4510L | 80 4511L | 80 4512L | 80 4513L | 80 4514L | 80 4549L | 80 4550L | 80 4547L | 80 4548L |
Working width per furrow (cm) | 30 - 45 | 30 - 45 | 33 - 50 | 33 - 50 | 33 - 50 | 33 - 50 | 33 - 50 | 33 - 50 | 40 - 60 | 40 - 60 | 40 - 60 | 40 - 60 | ||||
Number of furrows | 6 | 6+1 | 4 | 4+1 | 5 | 5+1 | 6 | 6+1 | 4 | 4+1 | 5 | 5+1 | 6 | 6+1 | 5 | 5+1 |
Body spacing (cm) | 90 | 90 | 100 | 100 | 100 | 100 | 100 | 100 | 120 | 120 | 120 | 120 | 90 | 90 | 100 | 100 |
Basic equipment
- Hydraulic turnover device UniTurn M 130
- Double acting turnover device
- Box section frame 160 x 160 x 10 mm
- Setting Centre Optiquick©
- Lower link attachment Cat. 3 (or Cat. 3N=L2 Z3 or Cat. 4N=L3 Z4) with 7 furrows: Cat. 4N=L3 Z4
- Tools and shearbolts
- Stand
- Underframe clearance 80 cm
- Two-piece shares (option: hard-faced one-piece stone shares)
- Hard-faced points (optional in angled version)
- Shape of Dural bodies B, C, D or W
The availability and basic equipment of the machine may vary depending on the country. Please contact your dealer.
