Compact-Solitair 9 HD

  • Nominal hopper volume from 3 500 L to 5 000 L
  • From 4 m to 6 m working width
  • Tractors between 140 - 300 Hp | 103 - 221 kW

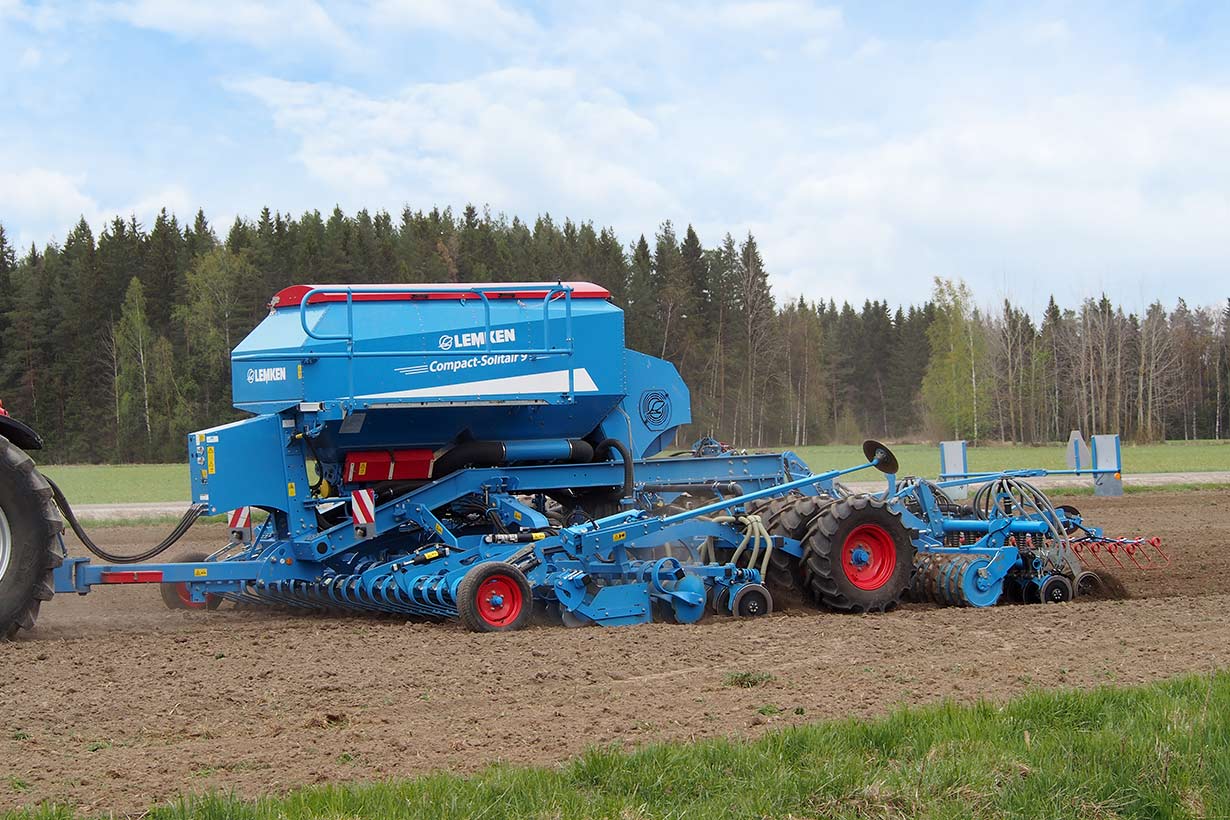

Compact-Solitair 9H standstill

Compact-Solitair with simultaneous fertilising

With summer cereals in regions with brief vegetation periods, in particular, significant increases in profits can be realised with drill combinations that place grain and fertiliser simultaneously. In both conventional and minimum tillage cultivation, a speedy seedling development is achieved.

Contact your distribution partner!

Overview - Compact-Solitair 9 HD

Advantages of Compact Solitair 9 HD

  • The two-part, variable hopper can be used for both seed and fertiliser.
  • Heliodor compact disc harrow tools are used for seedbed preparation.
  • 400 mm diameter double disc coulters place fertiliser, behind the cultivation section, and allow depth to be adjusted independently of other parts of the machine. Their coulter pressure can be increased to a maximum of 200 kilogram.
  • The large tyre packer wheels guarantee optimum reconsolidation of the seedbed.
  • The low-maintenance OptiDisc double disc coulters, with depth control wheel and row distance of 167 mm, guarantee exact seed delivery with uniform seed depth.
  • The arrangement of the tools, and the delivery of the fertiliser between the seed rows, ensure that all the plants receive an optimum amount of fertiliser while also helping to reliably avoid any cauterisation of the plant roots - thereby providing the ideal conditions for speedy growth.
  • Easy operation of all functions with the Solitronic machine control vial the LEMKEN graphic terminal LVT 50 or an ISOBUS terminal (option).
  • An integrated trapeze packer roller for the pre-reconsolidation of the seed rows is available.

Select a model

  • K = Foldable
  • HD = Heliodor, Fetiliser (double hopper)

Technical data

Compact-Solitair 9/400 HD 167
Working width (cm) 400
Power requirements (hp) from - to 140 - 240
Power requirements (kW) from - to 103 - 176
Weight (kg) 4 283
Article number 750 5132
Tank capacity (litres) 3 500
Row spacing (mm) 167 / 334
Number of seed coulters 24

Basic equipment

  • Without lighting equipment
  • Without brake system
  • Lower link attachment Cat. 3N=L2 Z3 (or Cat. 3)
  • Working section with notched concave discs, Ø 465 mm, two rows
  • Stepless hydraulic depth adjustment for compact disc harrow
  • Tyre packer roller 420/65 R 20, 1.064 mm (radial tyres)
  • Headland management
  • Hydraulically driven fan with filter Ø 230 mm
  • Electronic seed drill operation with operation terminal LVT-50
  • Maintenance-free double disc coulters OptiDisc M, up to 45 kg coulter pressure per coulter
  • Cushioned double disc coulter Ø 400 mm with hard metal scrapers for fertilizing
  • Two-part hopper for seed and fertilizer with a capacity of 3.500 l (partition 60:40, 50:50 or 40:60 available) with outside located seed and fertilizer distributors
  • Lateral folding hopper cover
  • Mechanical switch of width sections
  • Hopper sieve
  • Electronic hopper level indicator for seed and fertilizer
  • Electrically driven seeding and fertilizer shaft
  • Pulse wheel Ø 340 mm
  • Digital scale with case
  • Fertilizer grid
  • Lateral loading platform for seed and fertilizer
  • Battery mounting set 4 m

The availability and basic equipment of the machine may vary depending on the country. Please contact your dealer.
