Catch crop and granulate spreader MultiHub
- Easy operation via an ISOBUS terminal
- Convenient calibration
- In combination with seed drill technology: width section control to avoid overlaps

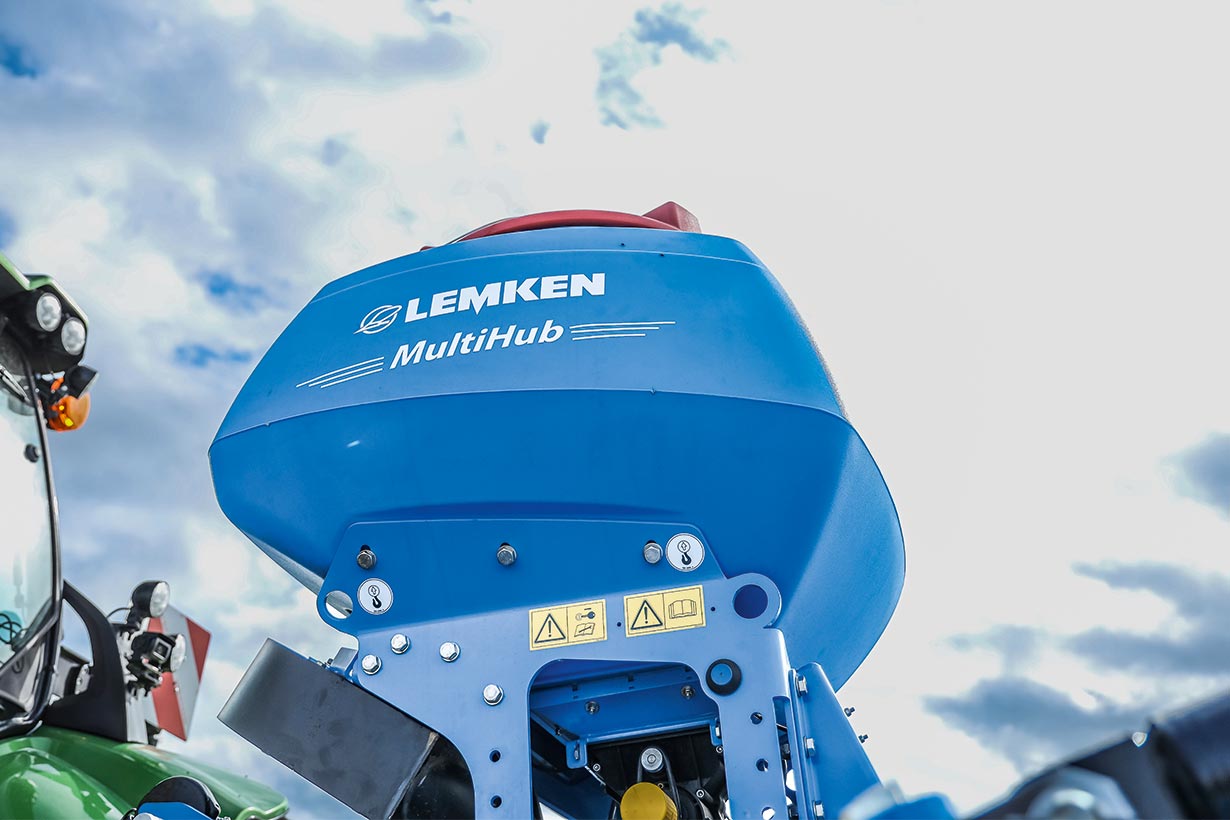

LEMKEN offers the MultiHub for catch crops, which is versatile and economical to use by reducing passes and combining applications. This mounted implement is suitable for both sowing catch crops during stubble tillage and spreading fine seeds or granulates directly with the main seeds from a seed drill.
Advantages of intercrop seeding
- Improved soil health
- Better nutrient retention
- More biodiversity
What makes the MultiHub special
- It can be equipped with width section or half-side control to avoid overlaps and save seed.
- Width section control can be operated directly from the tractor cab via the ISOBUS terminal and machine software.
- When used with a seed drill, the MultiHub has the same number of width sections as the seed drill. The view is fully integrated into the seed drill user interface as an additional seeding line.
- When the MultiHub is used with a trailed tillage implement, one half can be deactivated.
Perfect distribution
Depending on the working width and combination implement, up to four width sections can be switched automatically. Width sections are controlled via a metering motor and a diverter valve. This prevents overlaps and reduces seed costs.
To ensure precise transverse distribution in the soil flow across the full working width, even in adverse weather conditions, a hydraulically driven fan transports the seed to the distributor heads of the individual width sections and then to the splash plates.
Always the right rate
Depending on the hopper volume, either one or two metering units are installed, which are equipped with up to two seed lines. When the MultiHub is combined with a seed drill, metering is started via the machine control. Various metering shafts ensure that the right amount of seed is delivered at all times.
| MultiHub 200 | MultiHub 500 | |
|---|---|---|
| Weight (kg) | 60 | 80 |
| Tank capacity (litres) | 200 | 500 |
- iQblue MultiHub: Preparation for operation with any ISOBUS Terminal (only basic functions TECU and UT) (ISOBUS Terminal not included)
- Metering wheel set (optional precision seed wheel, seeds, micro granule, fertiliser)
- Quick-change system for metering wheels
- Pressure-resistant hopper and cover
- Electronic hopper level indicator
- Electrically driven metering shaft
- Power supply via ISOBUS implement socket on the tractor
- Seed hoses
- Calibration pushbutton
- Lifting signal via trailer with semi-mounted or via TECU with mounted soil cultivation implements
- MultiHub 200 combinable with Heliodor 9, Rubin 10 MR, Karat 10 (U), Solitair M
- MultiHub 500 combinable with Heliodor 9 KA, Rubin 10 TF, Karat K(U)A, Solitair DT
The availability and basic equipment of the machine may vary depending on the country. Please contact your dealer.
