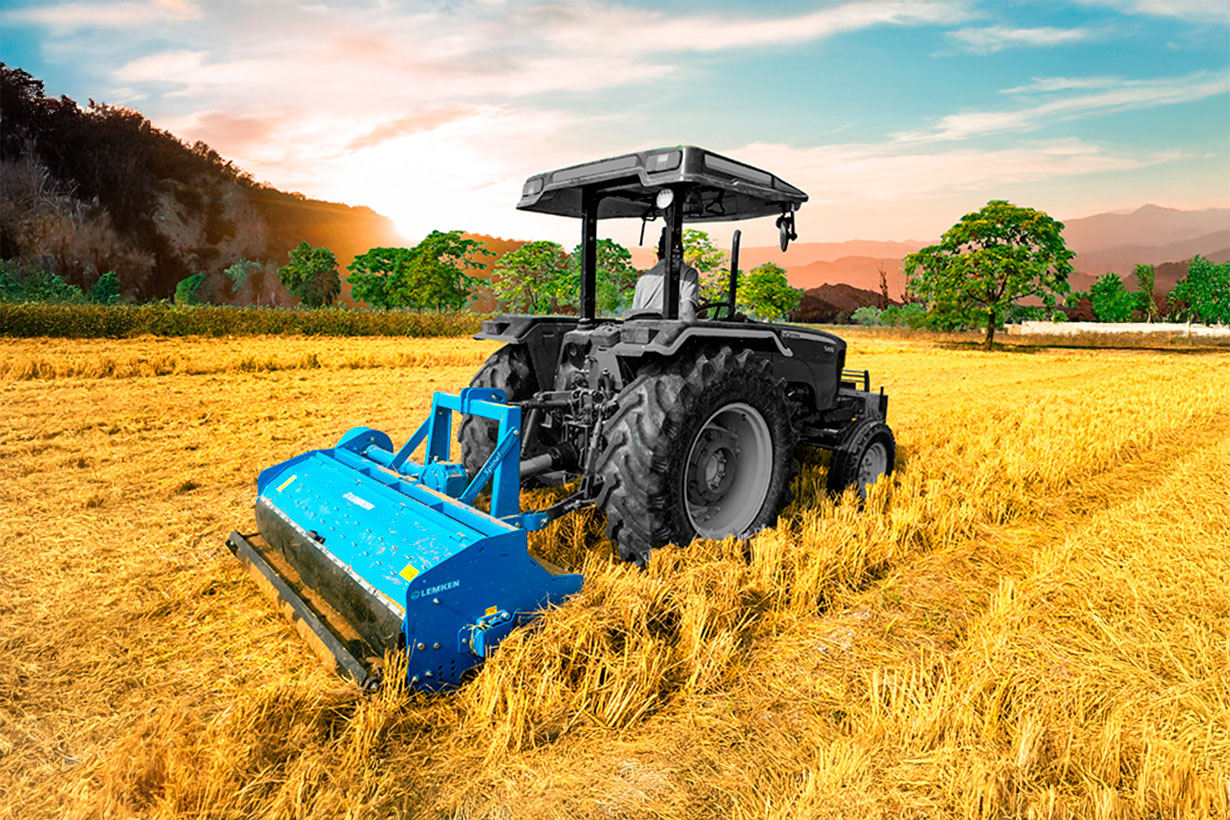

Perfect Solution for Crop Residue Management

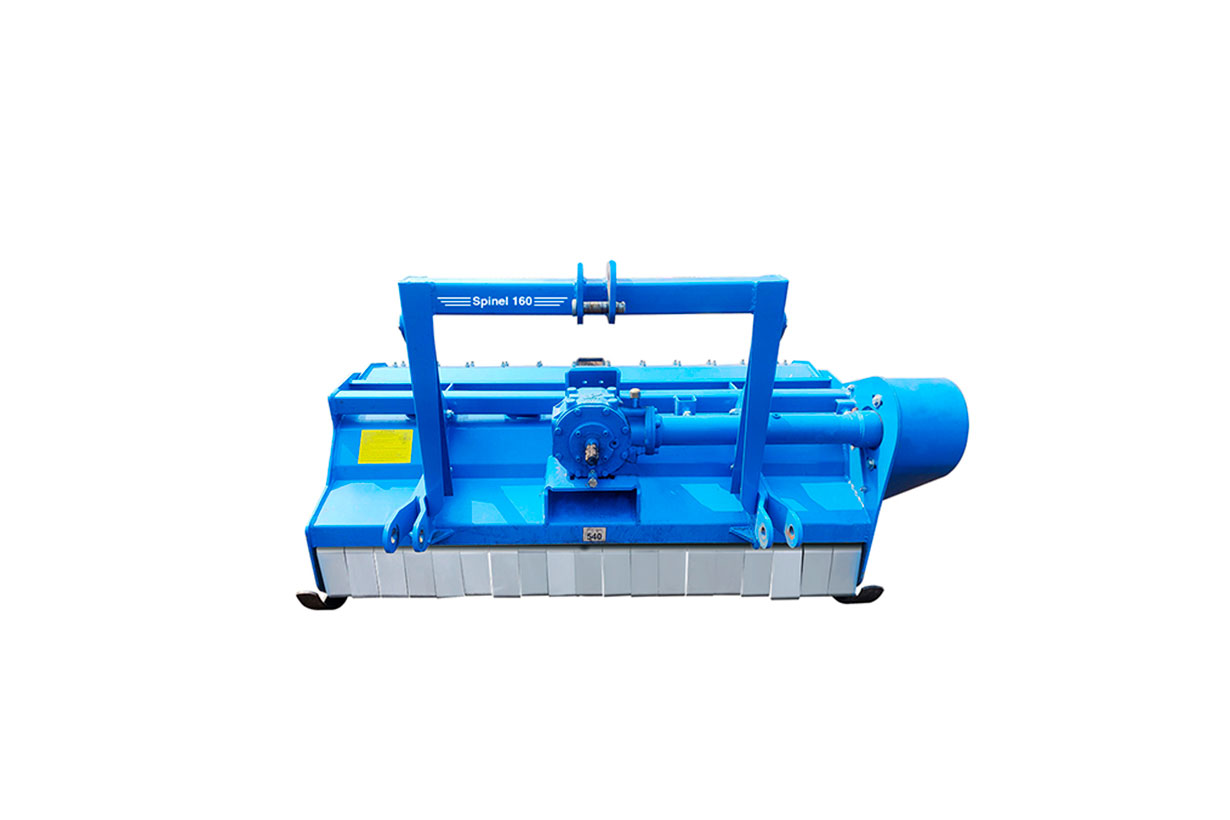

The LEMKEN Spinel Mulcher offers the ideal solution for efficient and safe crop residue management.

Designed with robust German engineering, Spinel ensures high chopping performance, operational safety, and minimal maintenance, making it the preferred choice for progressive farmers.

Features

  • Designed with Compact and Efficient Mulcher chamber.
  • Seamless alloy steel tube Rotor shaft for high strength.
  • Heavy duty Spiral Bevel Gear Box.
  • Less Vibration low Noise Level Operations.
  • Height adjustable roller.

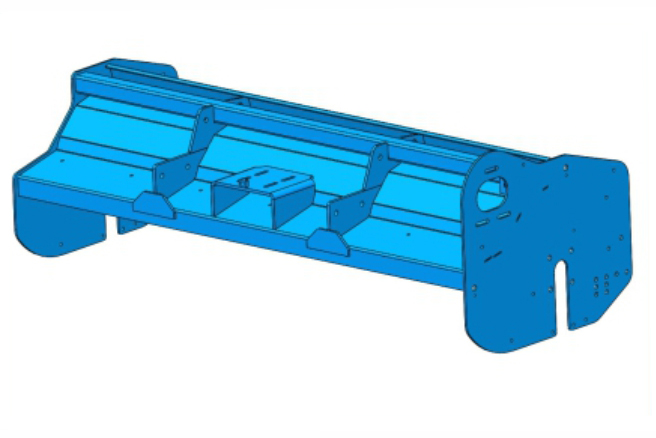

Compact and Robust Design.

Spinel is designed as Single piece Box, which enhances chopping efficiency, strengthened by addition square tube which is best in class.

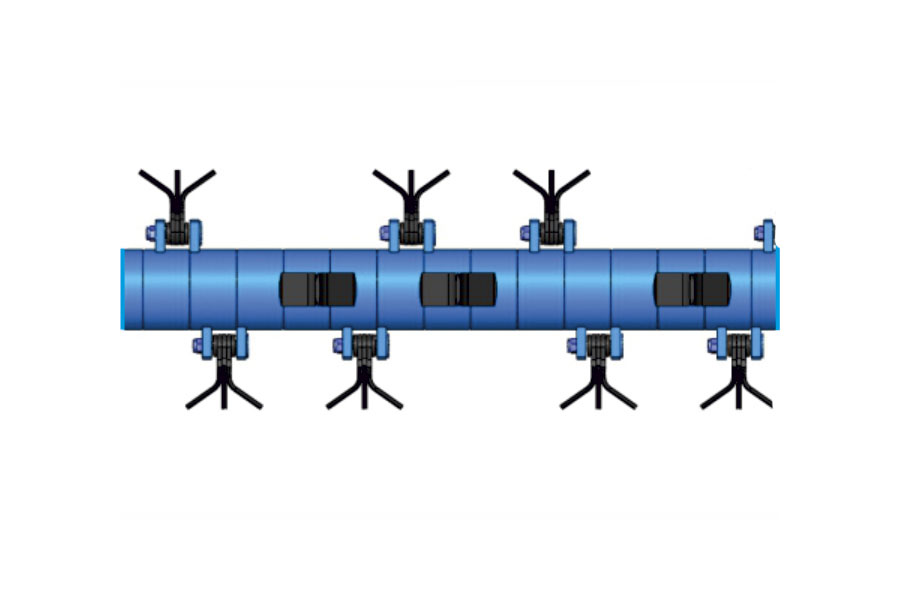

Perfectly Balanced Seamless Rotor Shaft.

Rotor shaft is made from seamless tube of Alloy steel and perfectly balanced electronically at high RPM which gives strength and noiseless operations.

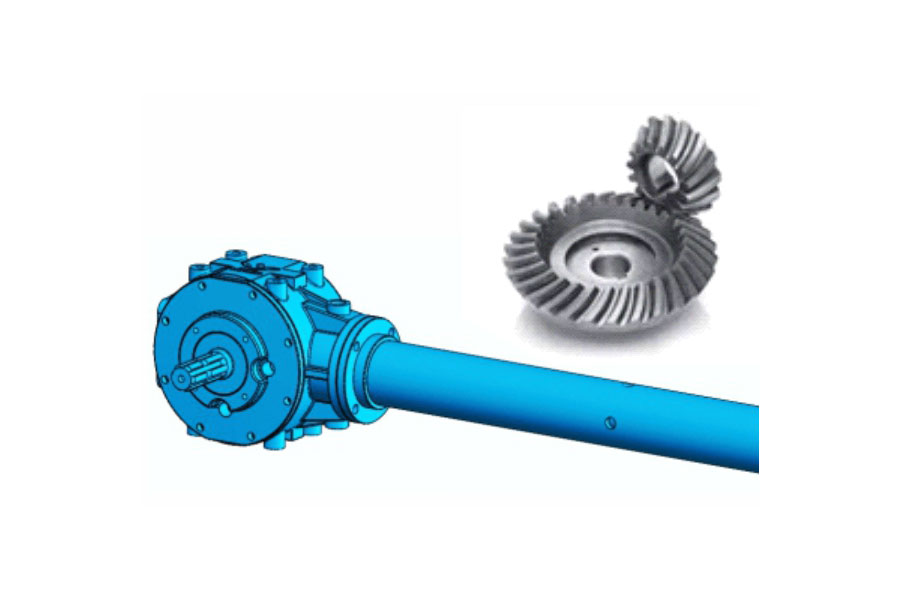

Heavy Gearbox with Spiral Bevel Gear.

Spinel Gear box is specially designed with spiral Bevel gear. The helical design of gear profile produces less vibration and noise than conventional straight bevel gear.

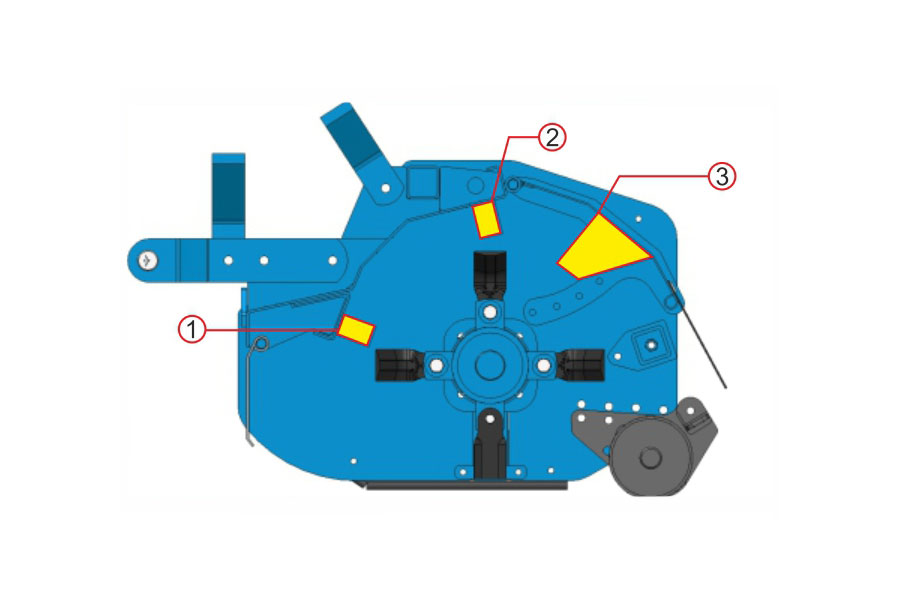

Extra pair of Arrester Blades.

3Nos. of arrester blades mounted inside the Mulcher chamber provides precision cut of crop residue which results in speedy degradation of organic matter (Arrester set can be easily removed according to the need of crop residue like Sugarcane & Banana).

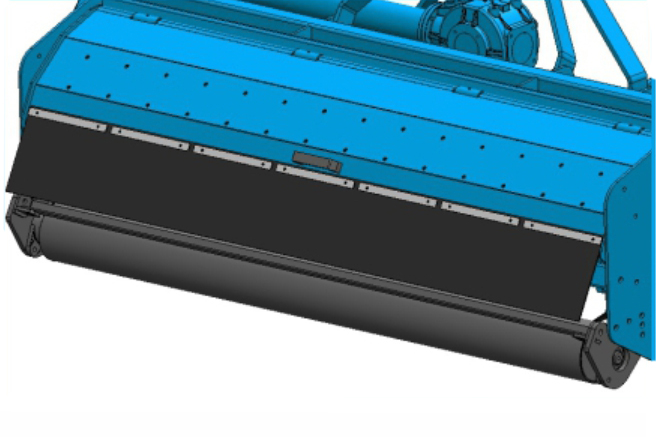

Adjustable Roller.

For different field condition height of roller can be adjusted using the different combination of holes on side plates.

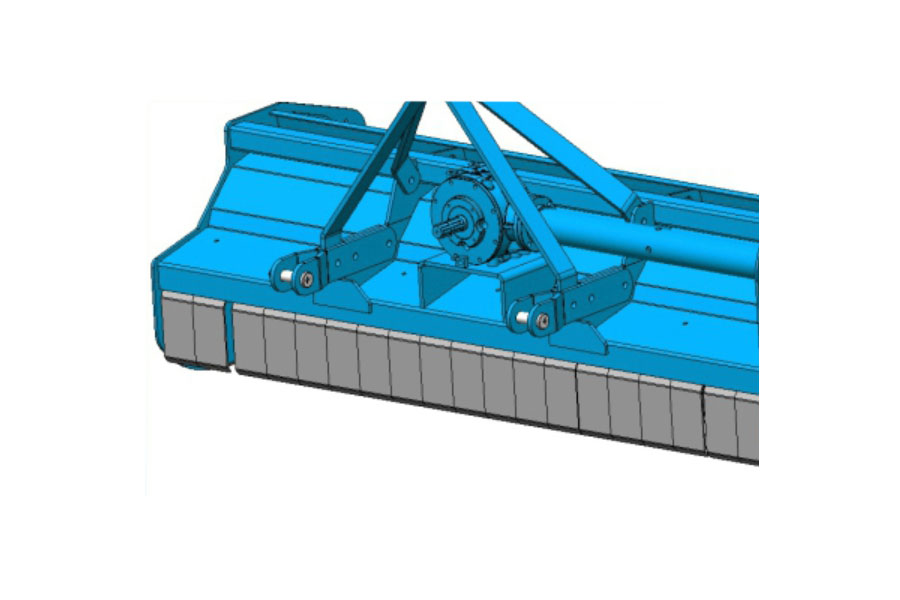

Long Shield for Protection.

Long shield provides better protection against possible accident from chopped residue. It ensures all residue stays with in Mulcher chamber as well as easy forward movement of machine.

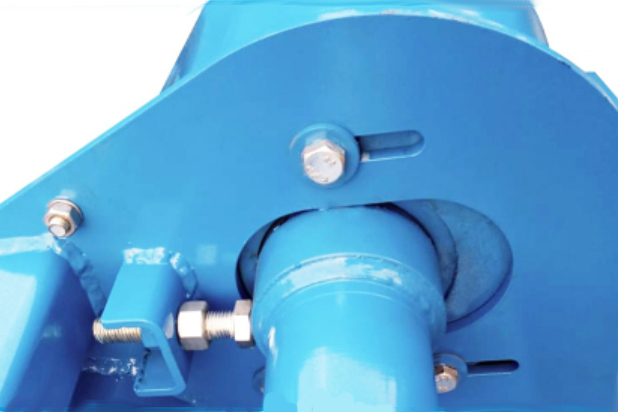

Ease of Adjustment.

Simple and Easily accessible studs for Quick Belt tension adjustments.

Technical Data.

Model Working Width Types of Blades Hammer Blade Weight Tractor HP Required Suitable Crop
Y- Blade Straight Blade
Spinel 160 1.6 M 36 18 18 500 Kg 45 & above All crops including Cotton,       Sugarcane & Banana
Spinel 200 2.0 M 44 22 22 540 Kg 50 & above Paddy, Wheat, Maize, Bajra, Vegetables, Cotton, Sugarcane
Spinel 250 2.5 M 60 30 30 735 Kg 55 & above All crops including Cotton,       Sugarcane & Banana
All specifications, dimensions and weights are subject to continuous technical development and are therefore not binding. The weight specifications always refer to the basic equipment, subject to change.

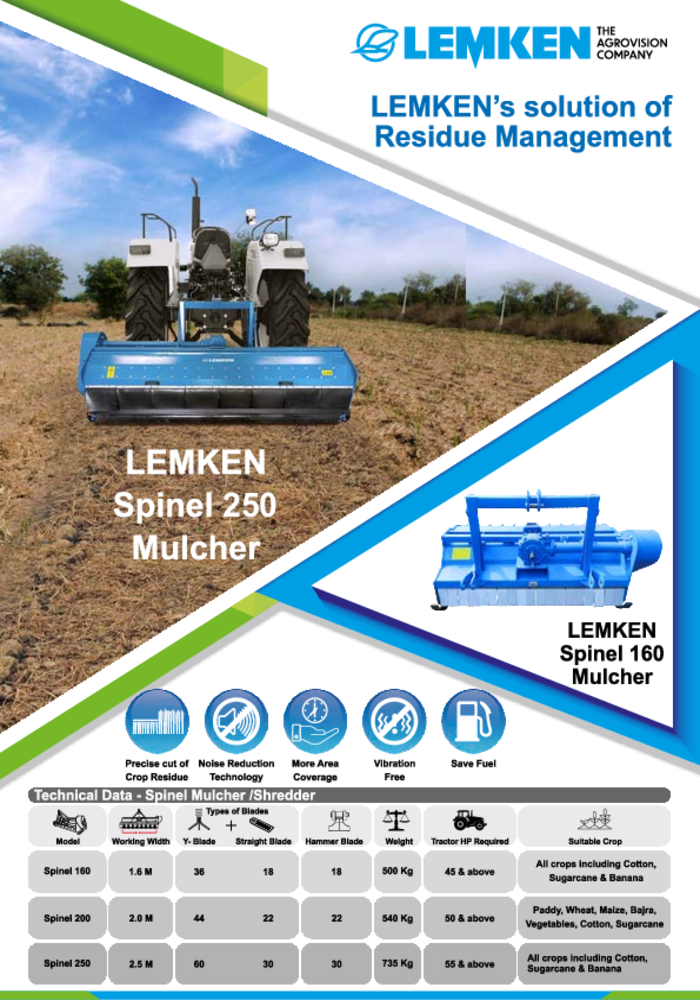

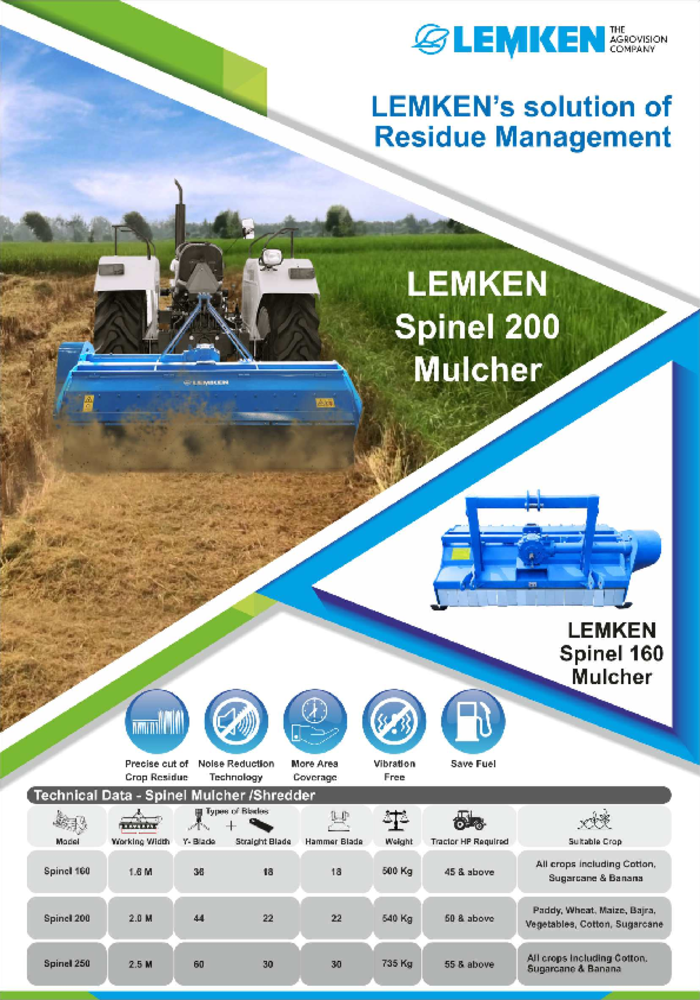

leaflets
