Perfect Engineering for Superior Seedbed Preparation

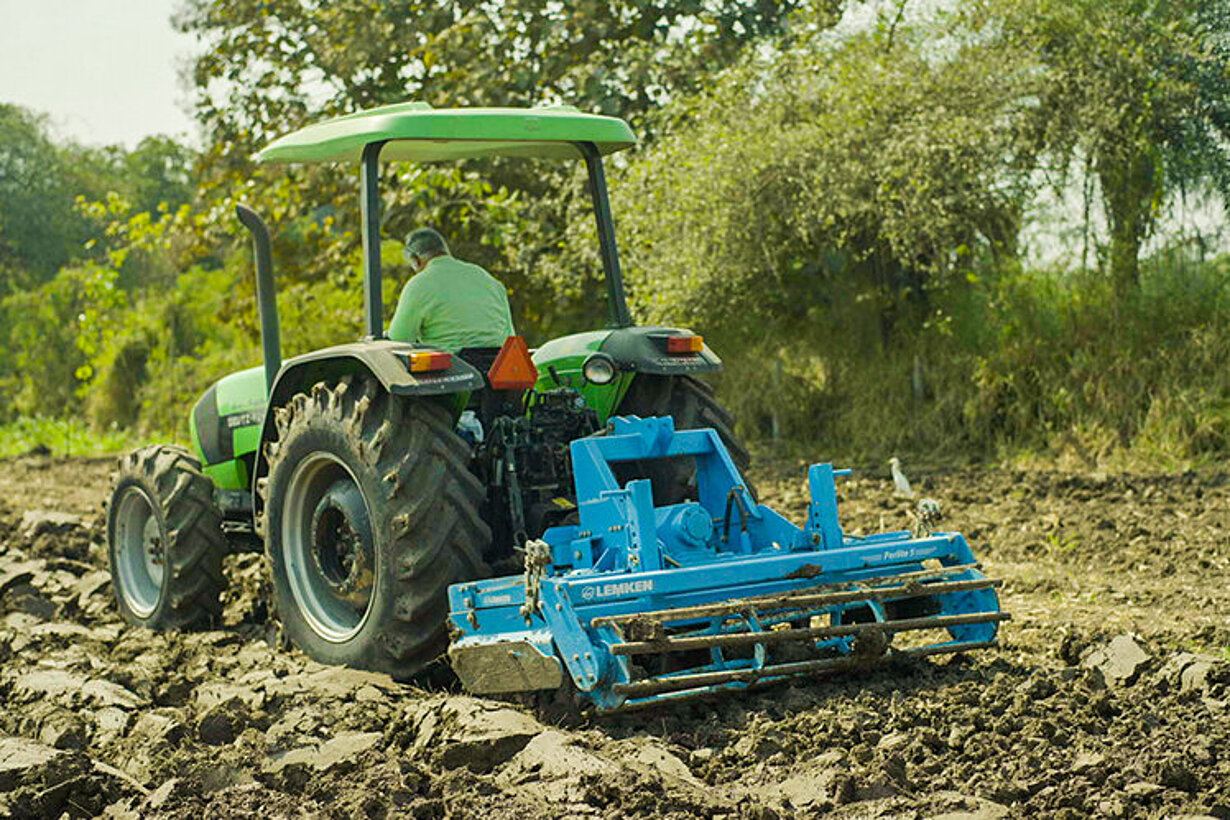

The LEMKEN Perlite Power Harrow is a versatile and highly efficient implement designed for optimal seedbed preparation across all soil conditions.

By mixing, leveling, and granulating the soil to a consistent working depth, it creates the perfect environment for uniform seed germination.

Ideal for tractors in the 40–75 HP range, the Perlite Power Harrow offers precision, performance, and durability to modern agriculture.

Features

  • It levels the surface left by the primary soil cultivation uniformly resulting in seedbed for better seed germination...
  • Modular design offers a vertical rotation without creating compaction on the soil or field.
  • The leveling bar with adjustable holes regulates the flow of soil...
  • The adequate re-consolidation of the soil is supported by variable depth control tube bar roller for providing precise working with...
  • The side shields on each side equipped with special spring prevent the outer tines from creating ridges as well as for stone protector...
  • Overload protective system is provided in the PTO shaft to prevent implement from damage...
  • Each rotor is having its own gear & bearings arrangement to make the machine trouble free...

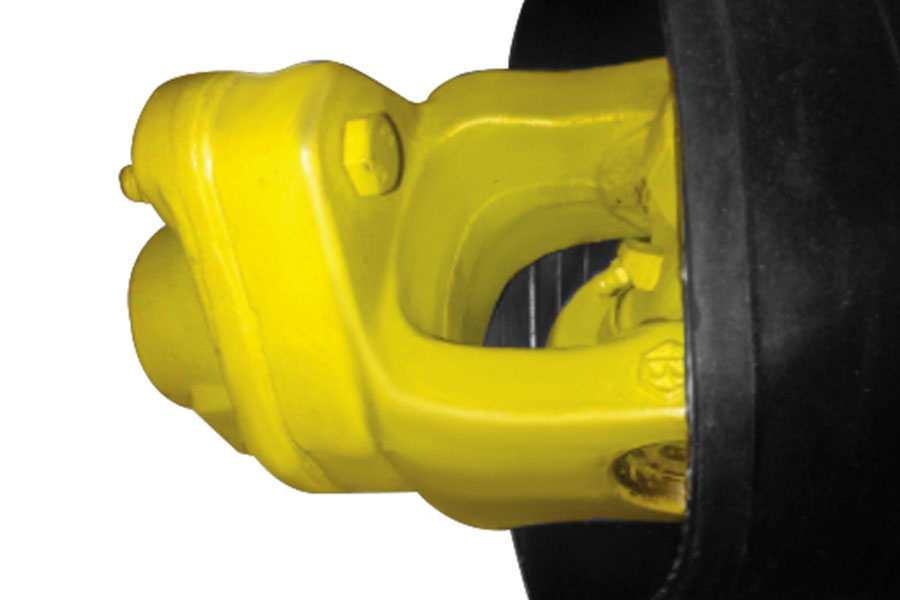

Overload Security.

A shearbolt in PTO shaft coupler prevents against overload damages.

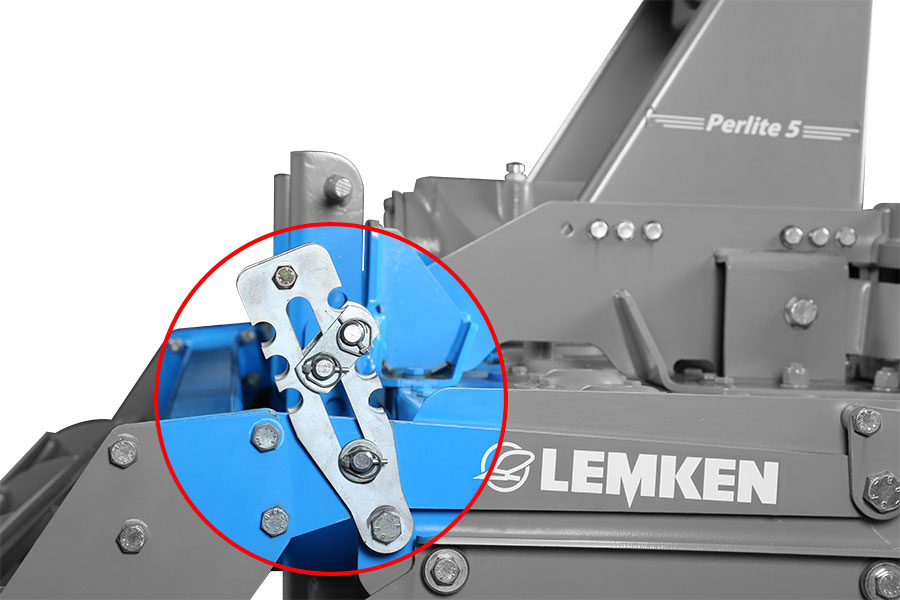

Adequate Consolidation.

The variable depth control tube bar roller helps in reconsolidation of soil. The roller without central axis provides the better formation of the soil without blockages even in sticky soil.

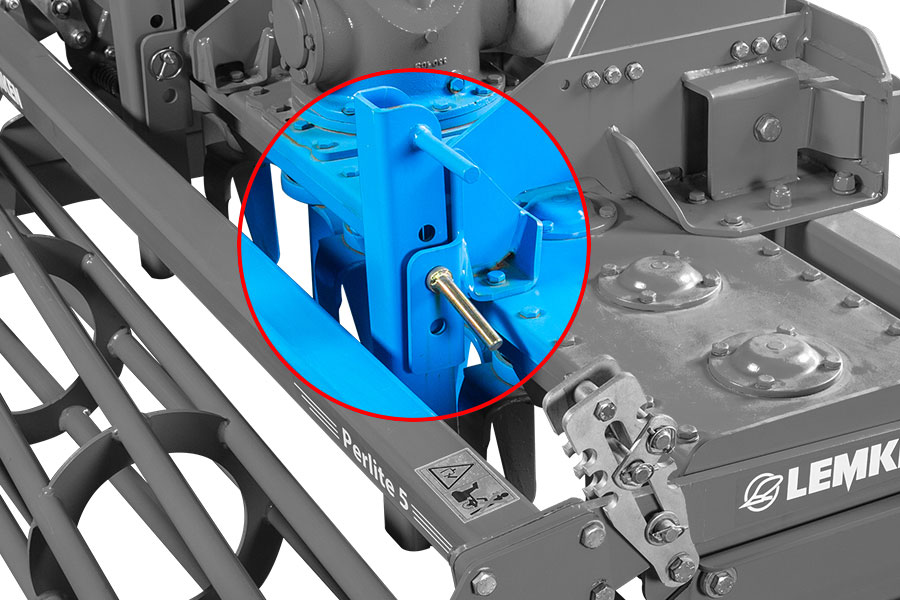

Levelling Bar For Regulating The Flow Of Soil.

The adjustable levelling bar behind the tines requlates the flow of soil and s optimizes the efficieny of tines. It helps in the proper structure of the soil for better seedbed preparation.

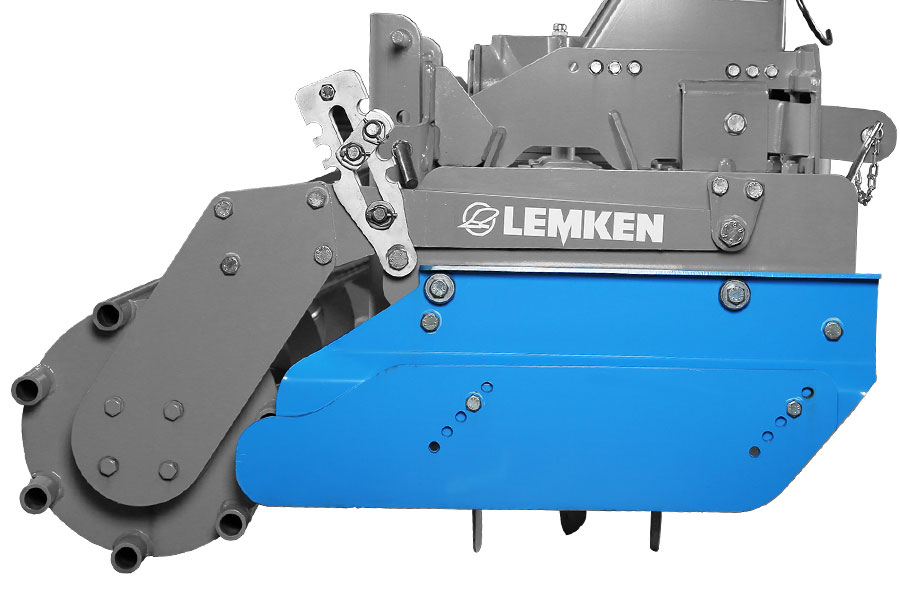

Side Shield.

The side shields on each side equipped with special spring prevents the outer tines from creating ridges and also protects from flying stones.

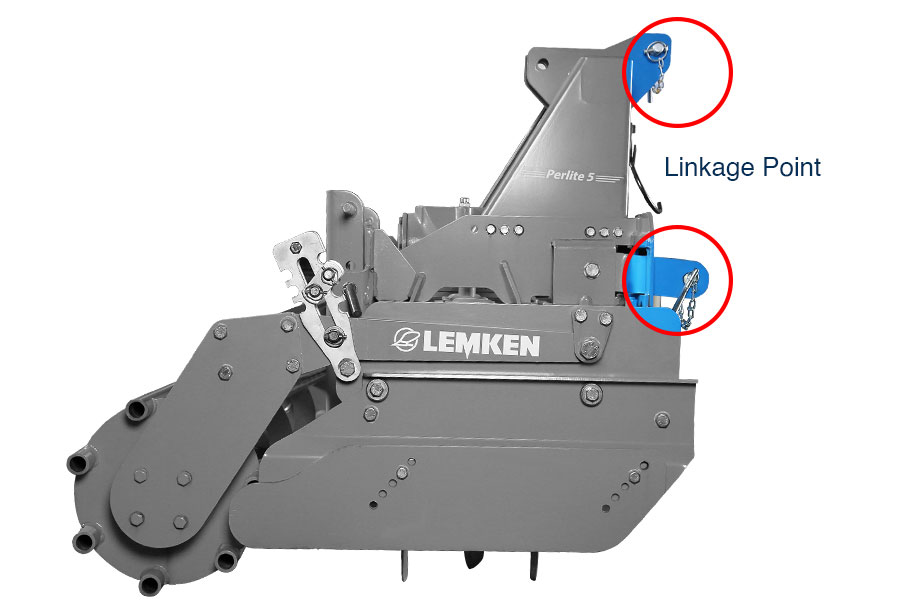

Three Point Linkage.

The multiple top link pin options for the CAT 1 and CAT 2 make it versatile machine.The swinging lower linkage attachment work as a shock absorber and makes Perlite perfect for the seedbed formation despite uneven lands.

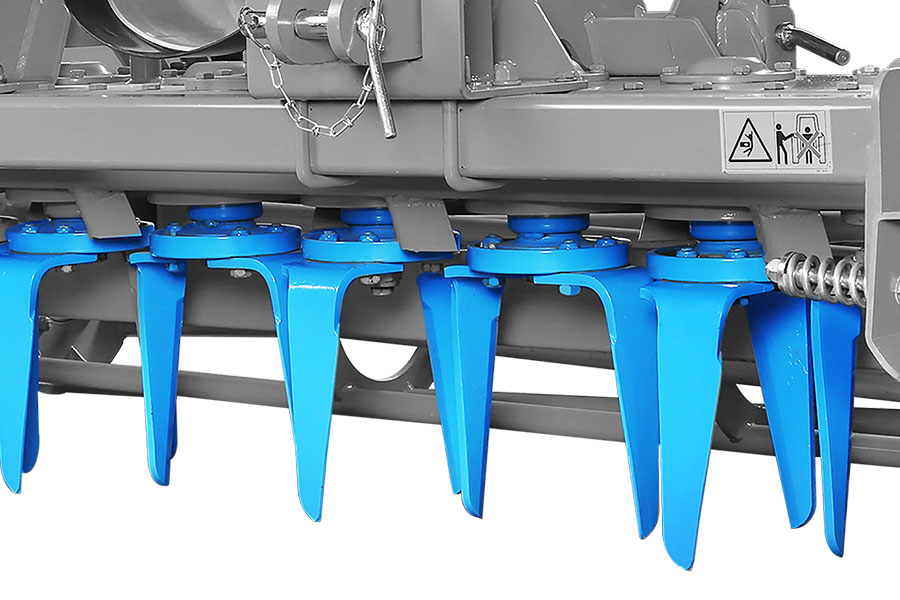

Vertical Rotation Blades.

The vertical rotating blades work without creating any compaction on the soil. The 260 mm long & 12 mm wide, special alloy steel tines guarantee better performance and long life. The arrangement of rotors creates very smooth operation and uniform load on the tractor PTO. Each rotor has its own gear & bearings arrangement to make the machine trouble free. The bolted tines are easy to replace and it is efficient machine for seedbed formation.

Model Perlite 5-175 Perlite 5-200
Working width in CM 170 200
Number of Rotors 7 8
Approx weight in Kg (With rollers) 570 620
PTO RPM 540 540
Rotor speed @ 540 270 270
Tractor Output HP 55-65 65-75
KW 42-49 50-56
All specifications, dimensions and weights are subject to continuous technical development and are therefore not binding. The weight specifications always refer to the basic equipment, subject to change.

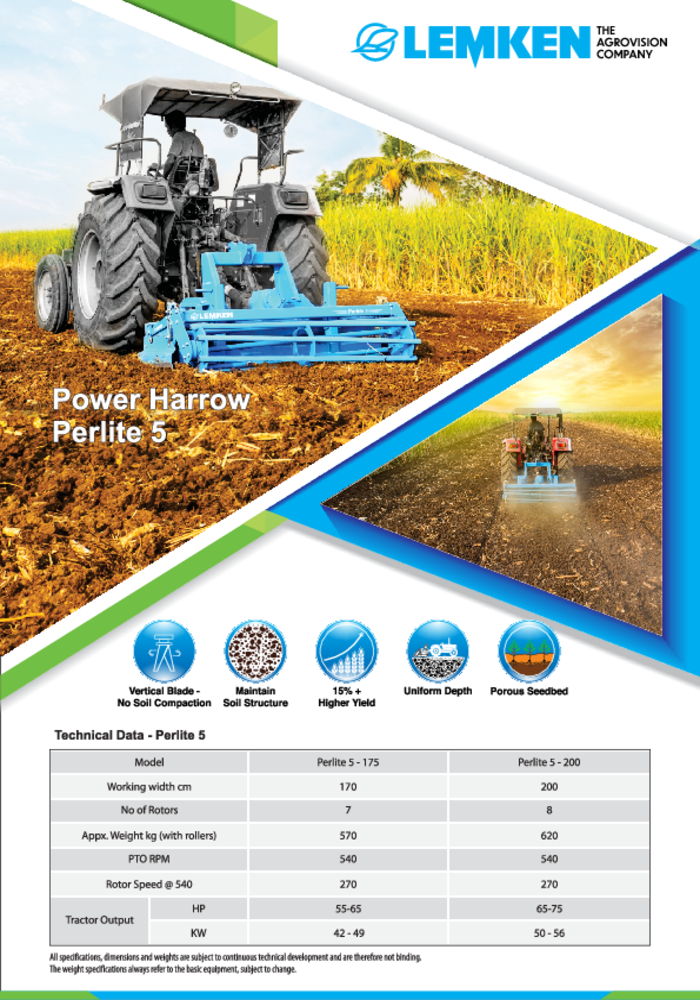

Leaflets
