Achat 70
Perfect Machine for Stubble Cultivation
Optimized for Indian Fields. Built to Perform.

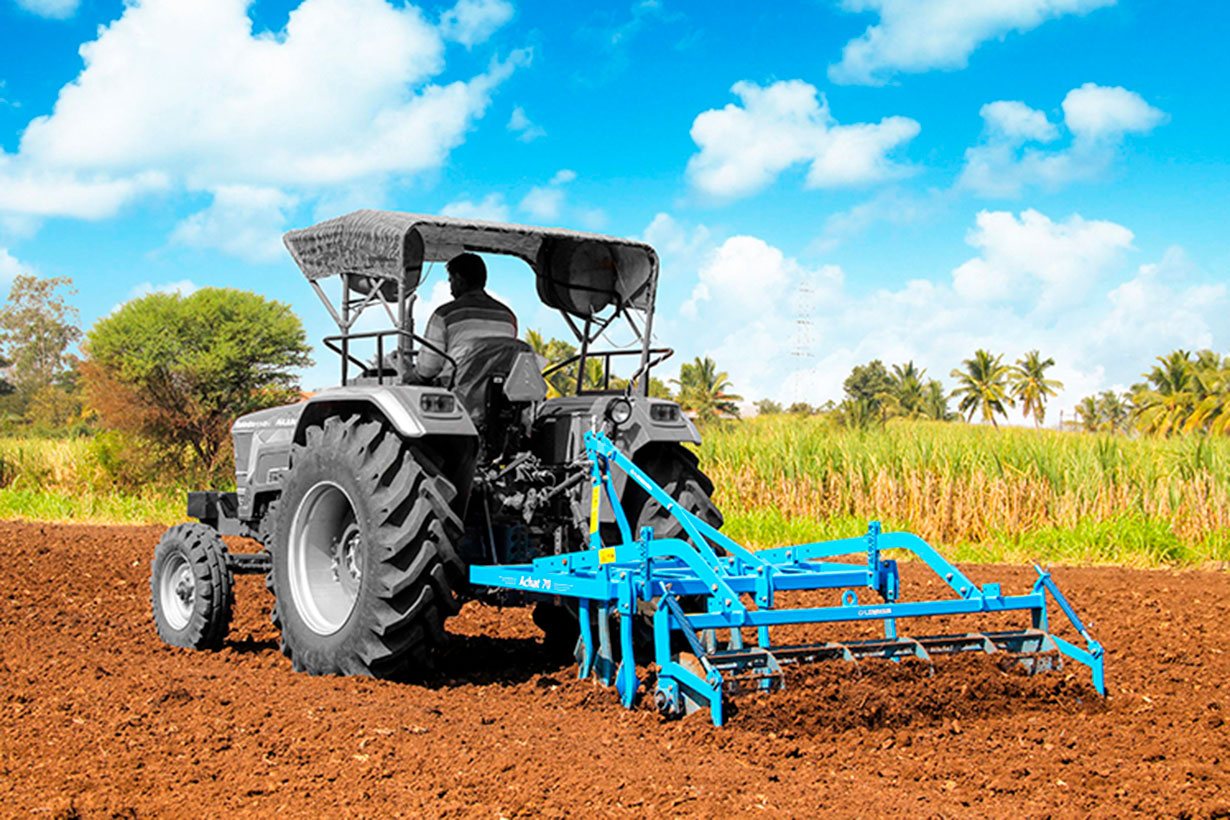

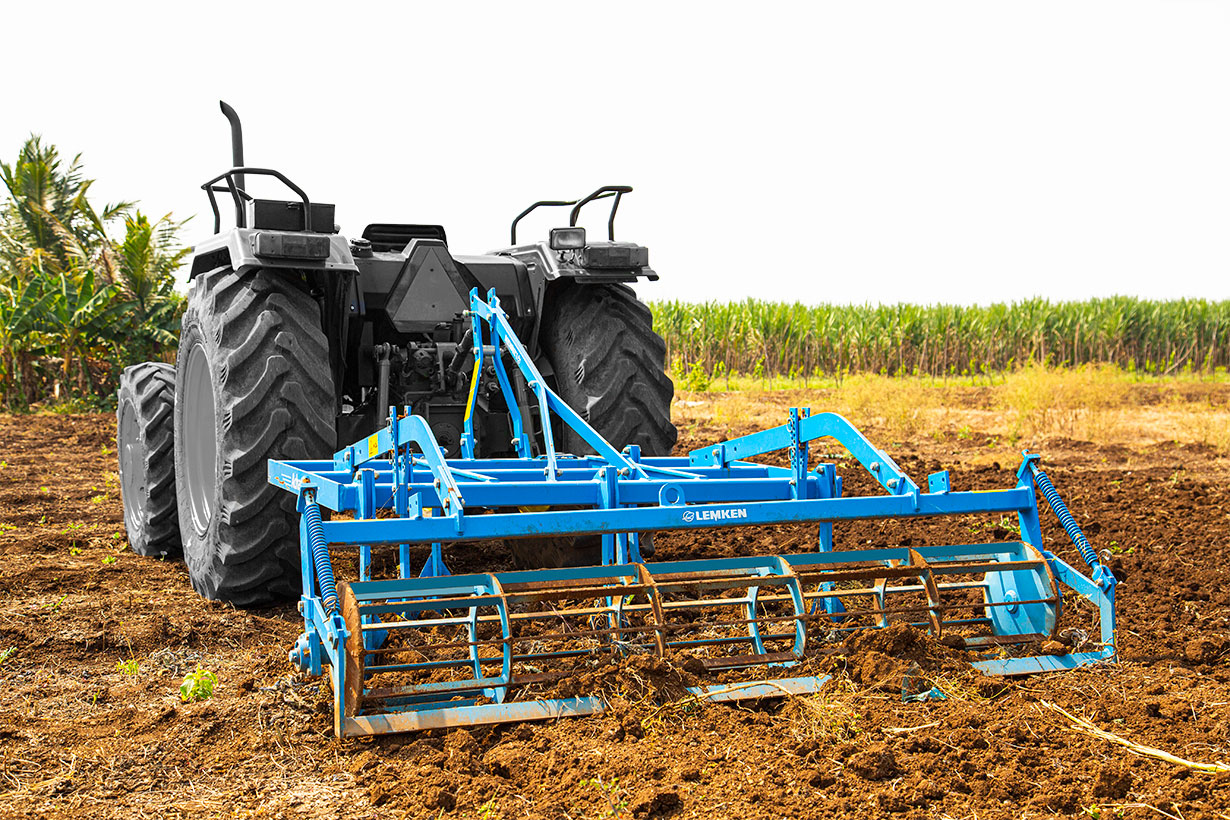

The LEMKEN Achat 70 is an advanced tine cultivator designed to meet the growing demand for efficient stubble cultivation. Engineered to mix soil and straw thoroughly, it enables the incorporation of crop residues and organic fertilizers at optimal depths, improving soil health and preparation for the next crop cycle.
Whether you are working with heavy residues, compact soil, or shallow topsoil, the Achat 70 ensures clog-free, uniform, and precise cultivation—all while minimizing operational effort.
Features
- Precise depth control without spanner work.
- Efficient crumbling & re-consolidation of soil.
- Uniform distribution of residues & clog free operation.
„A great product isn't just a collection of features. It's how it all works together.“

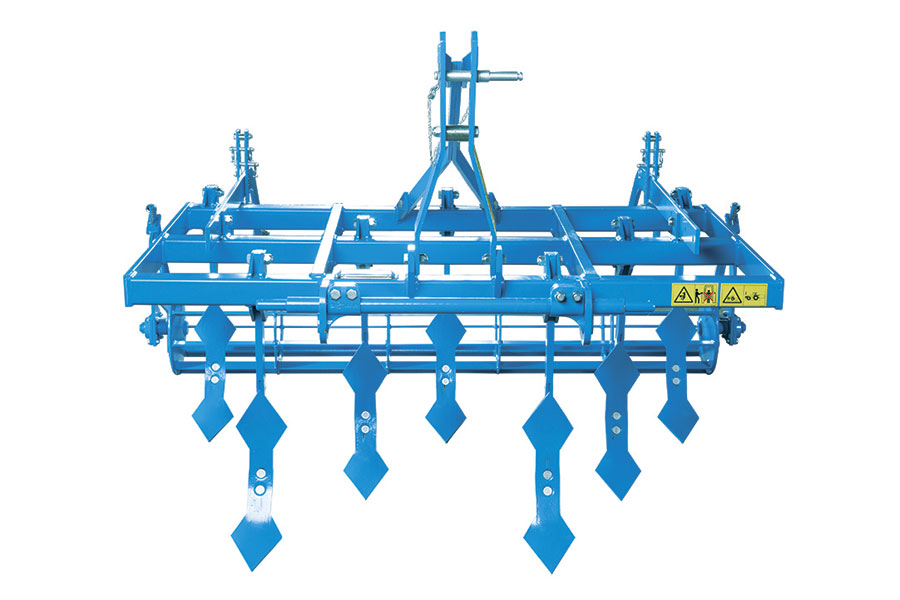

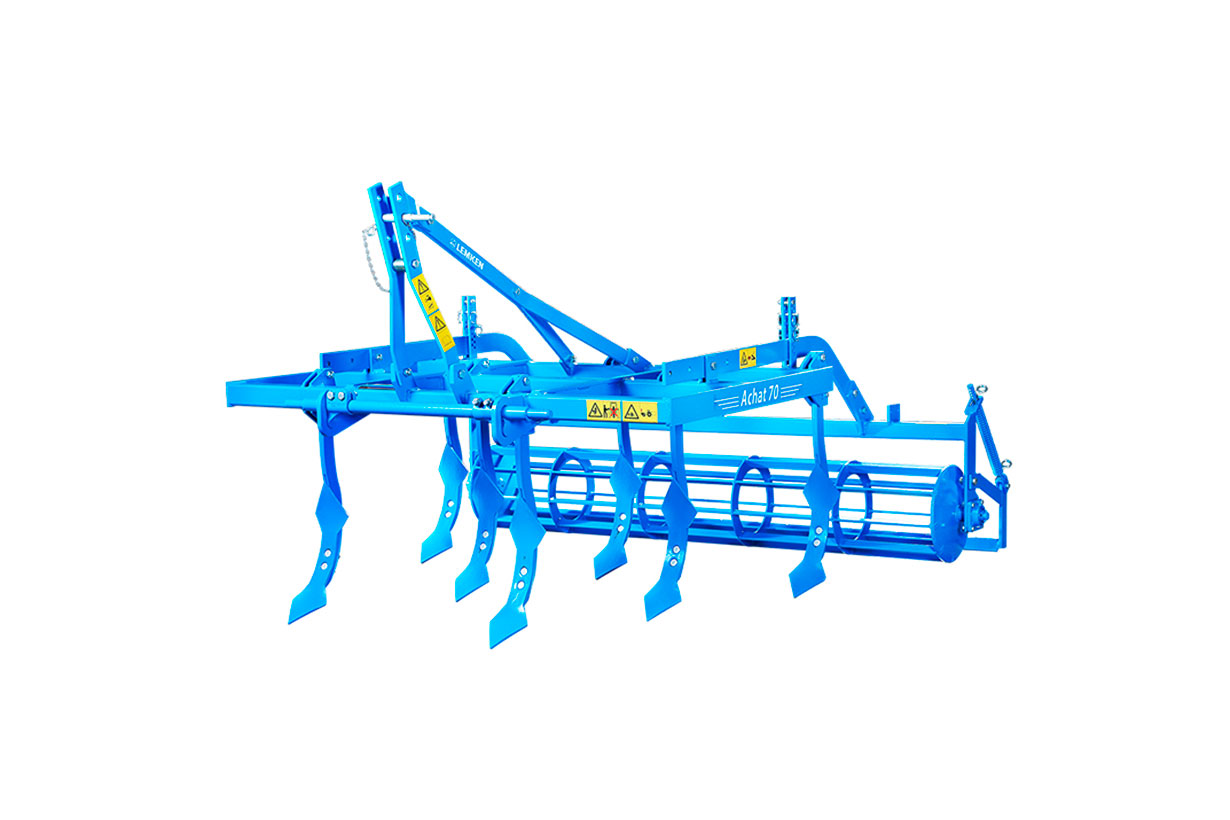

Unique 3-Row Design
The three-beam structure with generously spaced tynes (75 cm inter-tyne distance) allows the cultivator to handle high volumes of crop residue and weed material. The optimized arrangement ensures a straight pulling line and effective field performance.

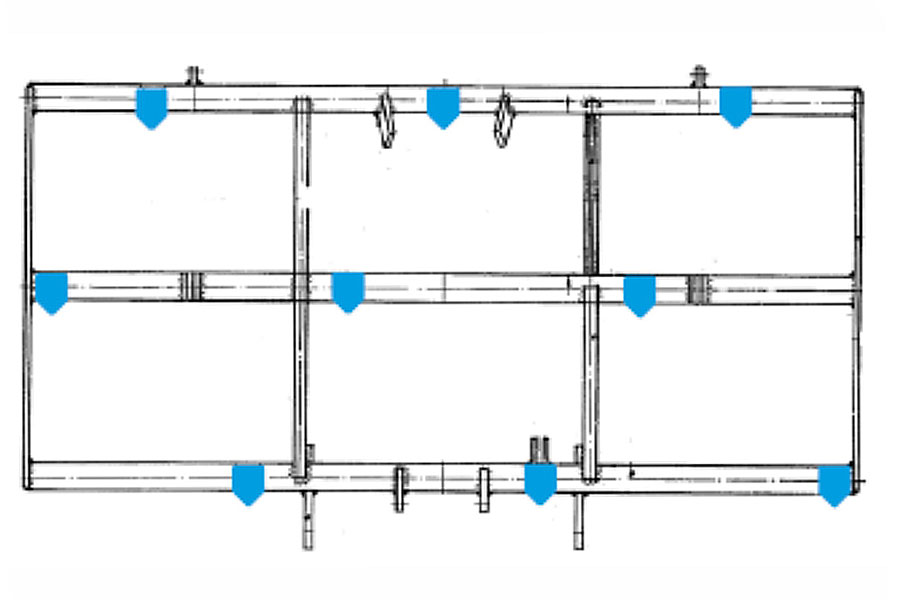

High Inter-tyne distance.
Achat 70 comes with three beam structure with maximum distance in between them. Each tyne mounted on beam is placed 75 cm apart from each other. which allows maximum movement of crop residue without clogging of the implement.

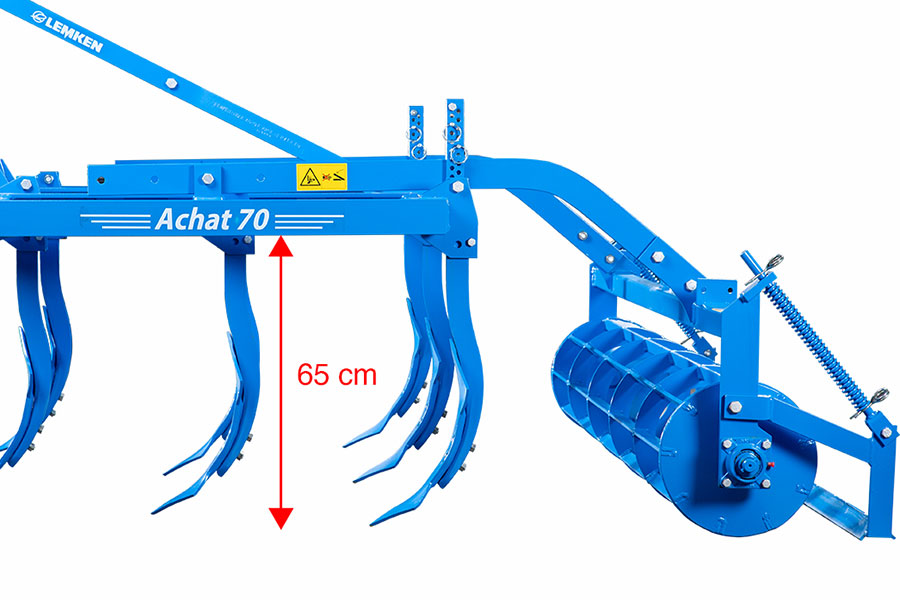

Higher Underframe Clearance.
Achat has good clearance height of 65 cm and tynes arranged at 25 cm from each other for clog-free operation. With the result the same implement can be used from shallow to deep cultivation. All soil capillaries are broken preventing the soil from drying out.

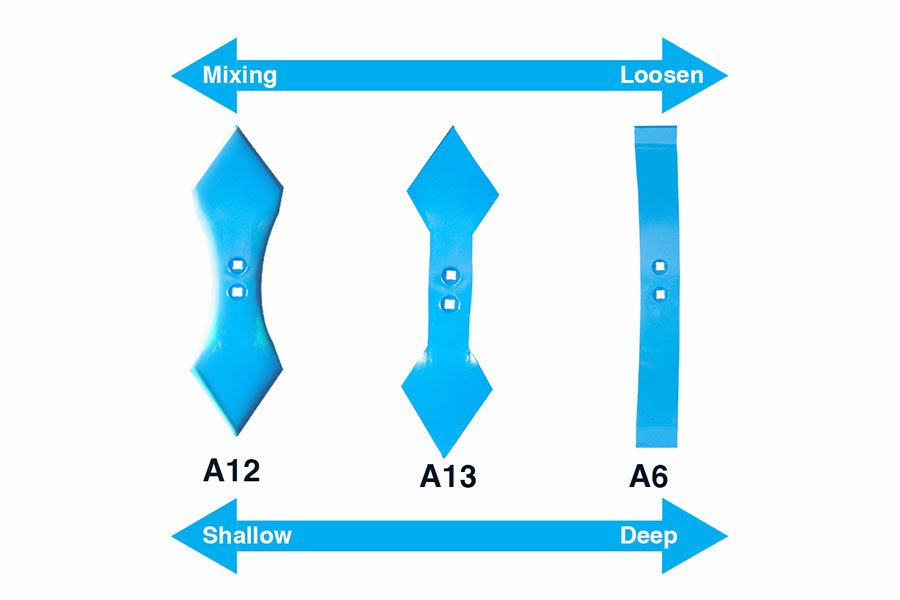

Loosening, Mixing &Crumbling.
Different variety of reversible shares with easy attachment for consistently good penetration and improved mixing for shallow working & better mixing & crumbling for optimum mixing & crumbling for deep loosening.

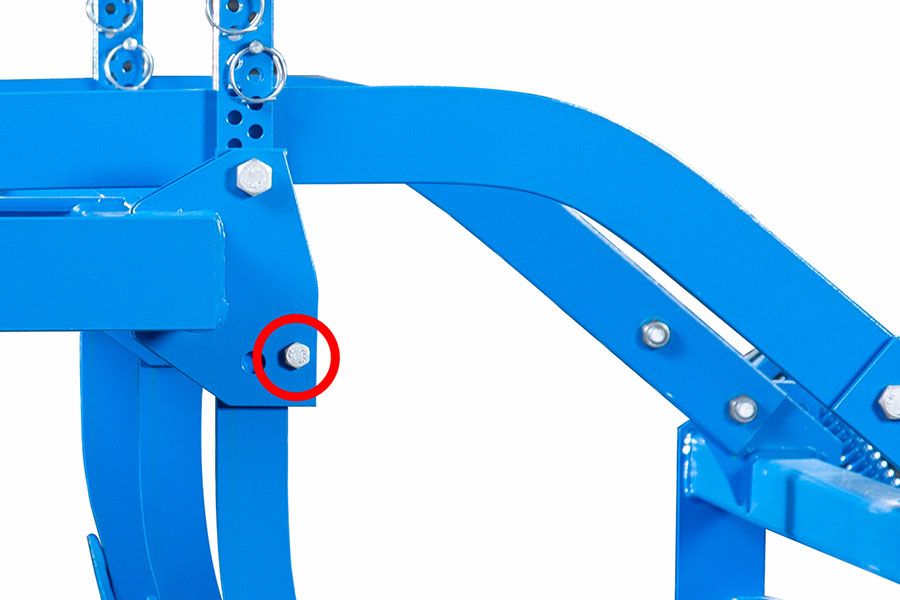

Overload Security.
Even where the share point is firmly caught under the stone, tree root or rock ridge, all the LEMKEN implements are protected against damage by an additional shear bolt device as standard. The new shear bolt can be easily & quickly replaced, thus the work will not suffer.

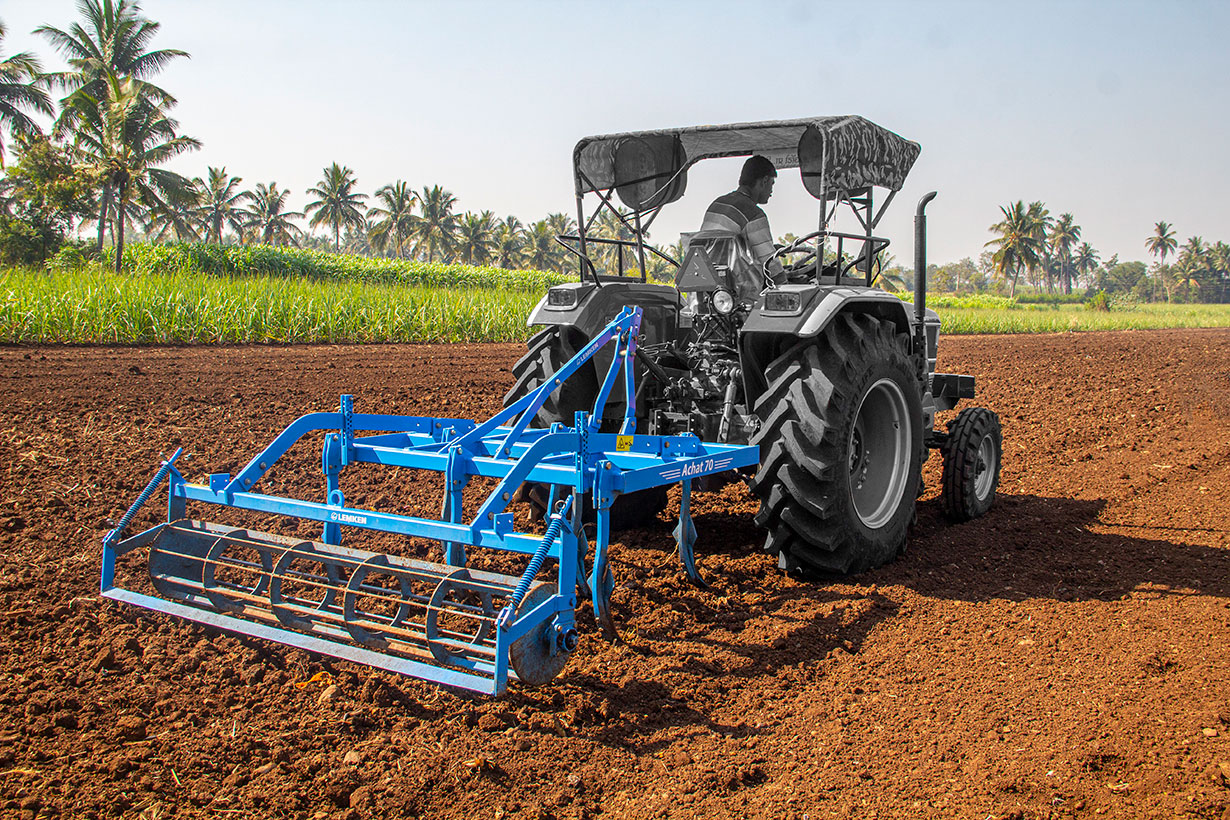

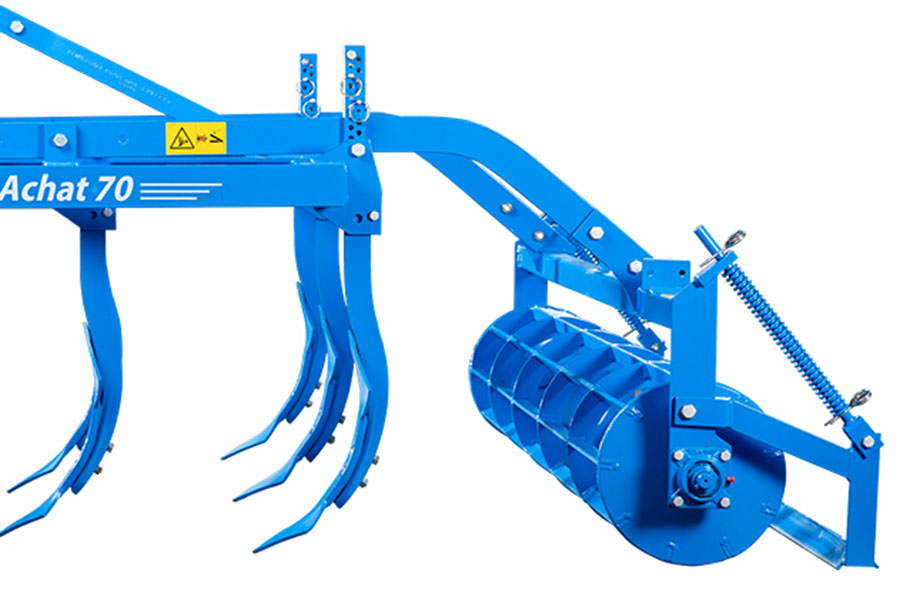

Precise Working Depth.
The Achat is equipped with 340 mm roller suitable to deliver the following benefits:- Precise depth control without spanner work. The adjustment is made with the pin in a series of holes at the rear of the machine efficient crumbling & reconsolidating of soil uniform distribution of residues & clog free operation the maintenance free sealed ball bearing guarantee the maximum service life.

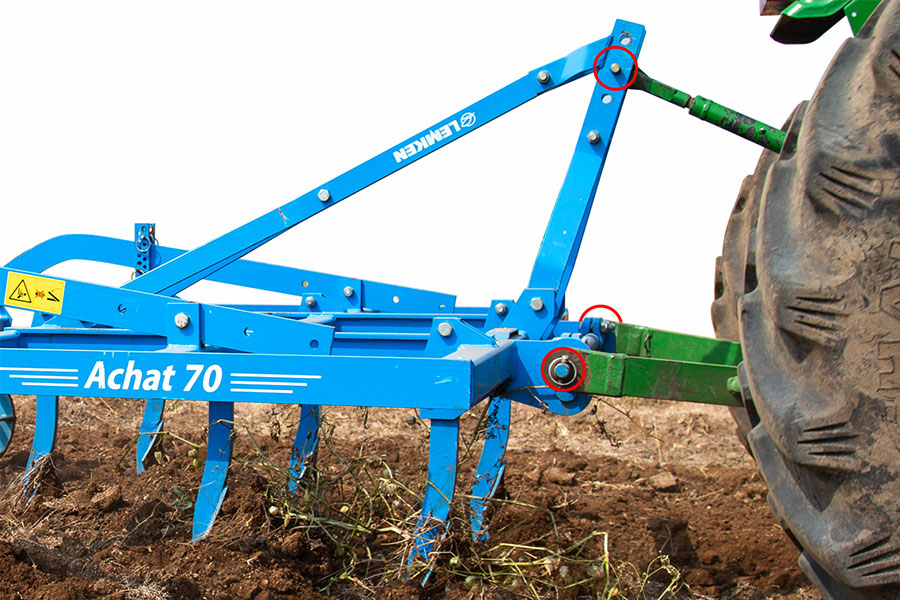

Three Point Linkage.
The easy three point linkage arrangement along with height adjustable drawbar and multiple holes for top link attachment, make the implement perfect for any available tractor and minimize the pulling forces. Thus LEMKEN makes it easy for the farmer to simply match the system to variety of requirements.

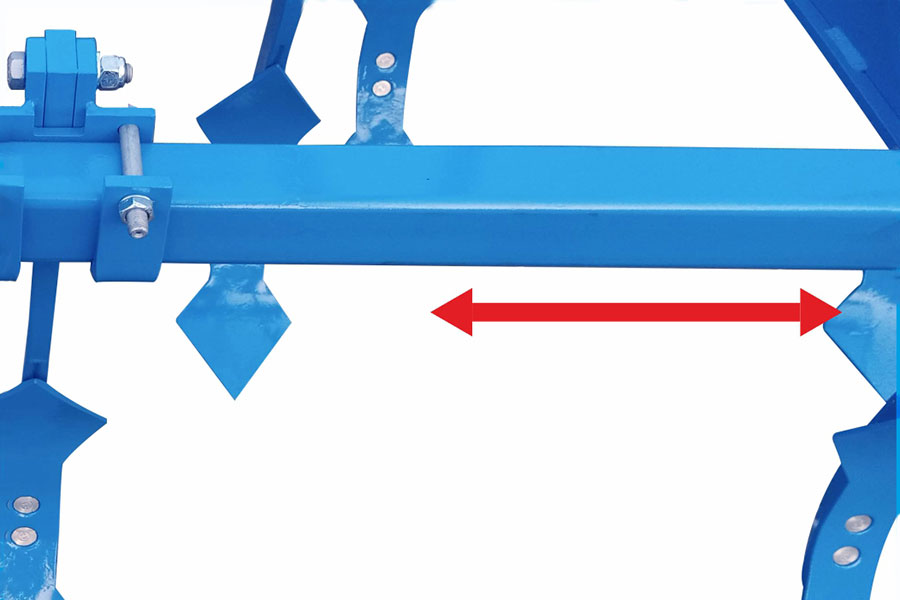

Adjustable spacing of tynes.
Tynes spacing of Achat 70 can be adjusted as per requirement of field operations. Besides tynes positions, number of tynes can be added or removed as per requirement.

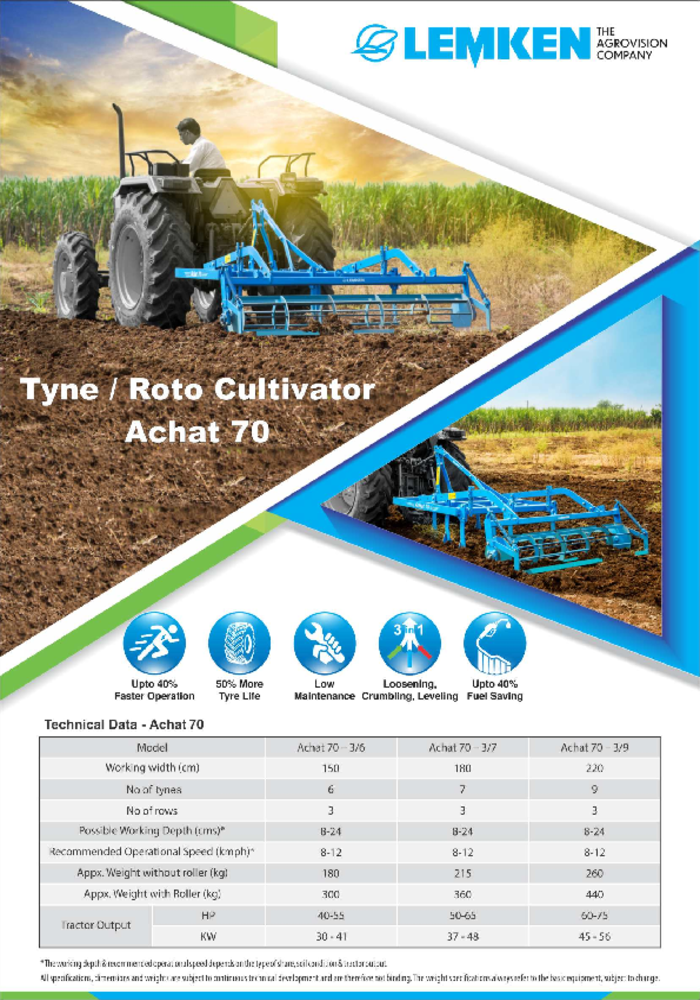

| Model | Achat 70 - 3/6 | Achat 70 - 3/7 | Achat 70 - 3/9 | |
|---|---|---|---|---|
| Working width (cm) | 150 | 180 | 220 | |
| No of tynes | 6 | 7 | 9 | |
| No of rows | 3 | 3 | 3 | |
| Possible Working Depth (cms)* | 8-24 | 8-24 | 8-24 | |
| Recommended Operational Speed (kmph)* | 8-12 | 8-12 | 8-12 | |
| Appx. Weight without roller (kg) | 180 | 215 | 260 | |
| Appx. Weight with Roller (kg) | 300 | 360 | 440 | |
| Tractor Output | HP | 40-55 | 50-65 | 60-75 |
| KW | 30-41 | 37-48 | 45-56 | |
