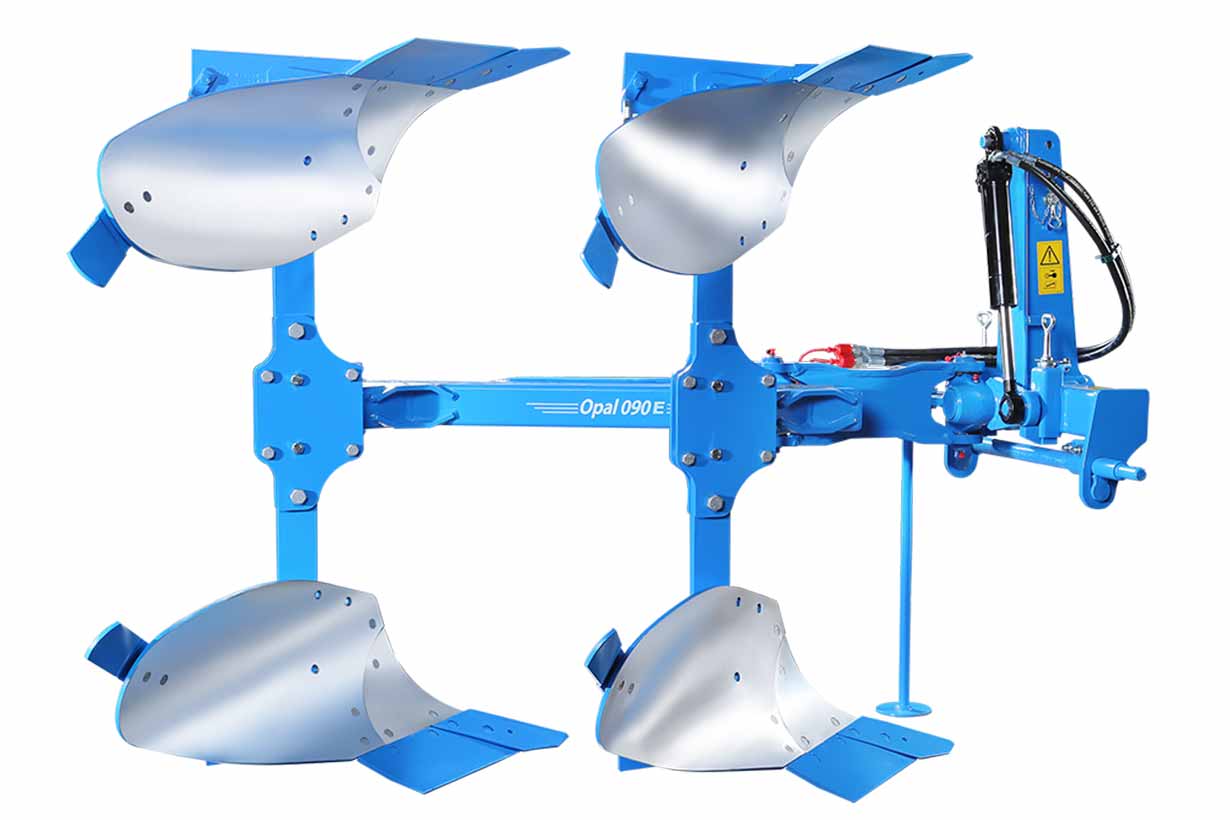

Opal 090 E

  • From 2 to 4 furrows
  • For Tractors 50 - 90 HP

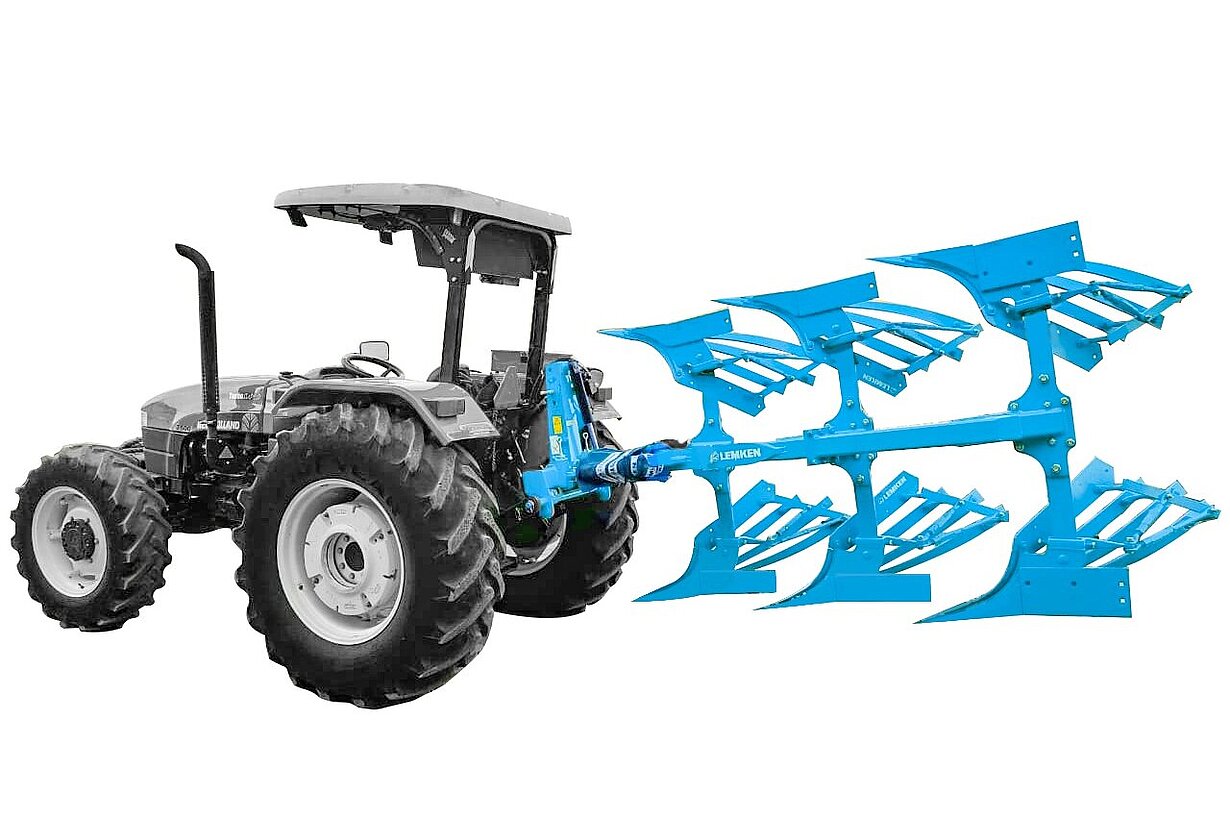

  • Slatted Body Option Available

Perfect Technology for Improved Work Quality

Designed to Make Your Work Easier and More Efficient

The LEMKEN Opal 090 E series ploughs are built for farmers who demand efficiency, strength, and consistent performance in the field. Easy to operate and packed with intelligent features, the Opal 090 E ensures all the benefits you expect from a premium LEMKEN machine.

With a wide range of bodies and accessories, we deliver customized solutions to match every soil condition and working requirement. At LEMKEN, quality is reflected in every detail.

Features

  • Large Underframe and Interbody Clearance.
  • Strong Frame: 90x90x7.1 seamless tube.
  • Heavy-Duty Turnover Axle.
  • Adjustable Working Width.
  • Optiquick© Adjustment Centre.

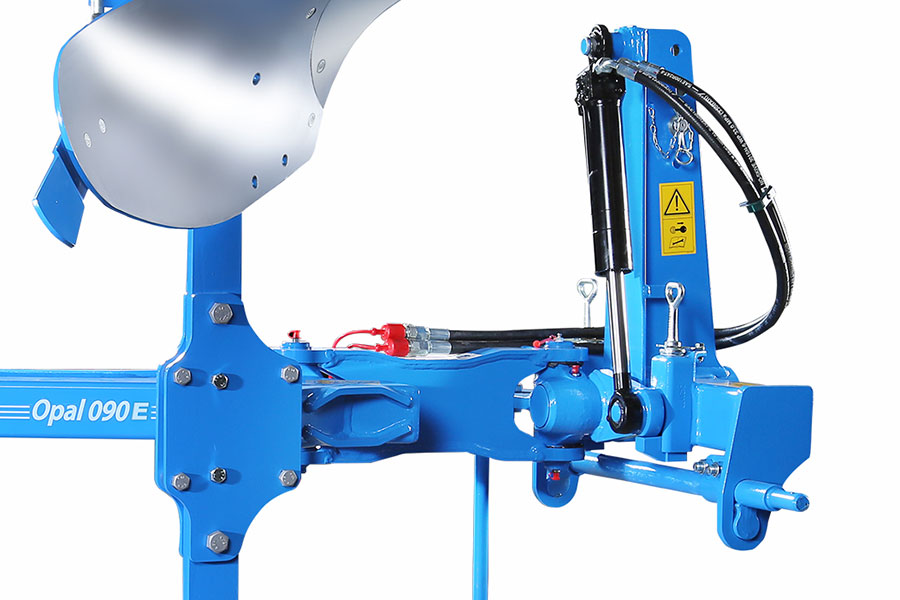

Reliable Turnover Mechanism.

AlI LEMKEN mounted ploughs feature the modern UNITERN hydraulic turnover mechanism with double acting ram which provides precise, safe and quick turnover action. The strong turnover axle with special hardened steel can with stand hard shock loads.

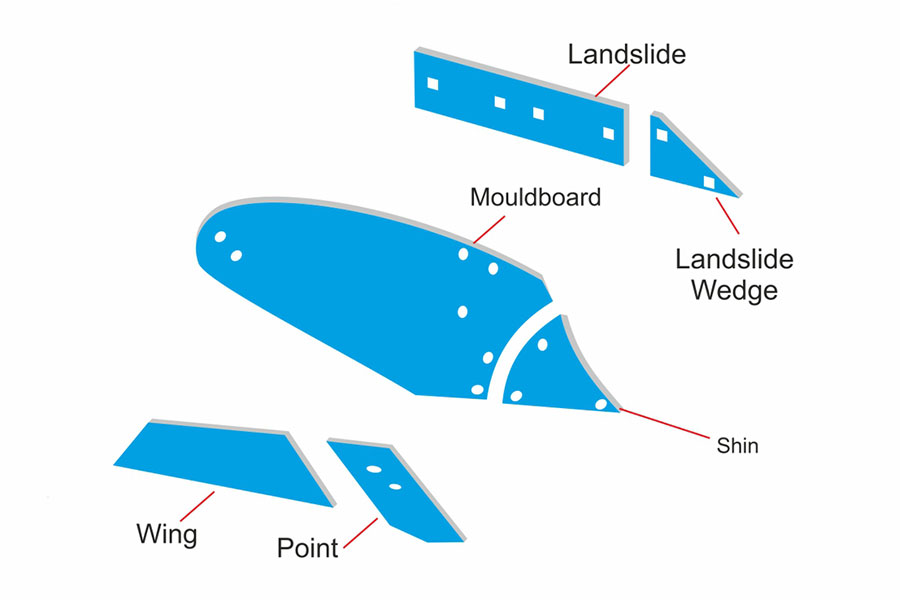

The Plough Body Construction.

Low wear and good entry characteristics are guaranteed for the replaceable share points through their strength, material and form. The landslides are extra broad with the large surface area offering better plough guidance. They can be turned and reversed to give four different wear positions. A special hard metal of the share points gives an up until now unbeatable working life and substantially higher cost effectiveness.

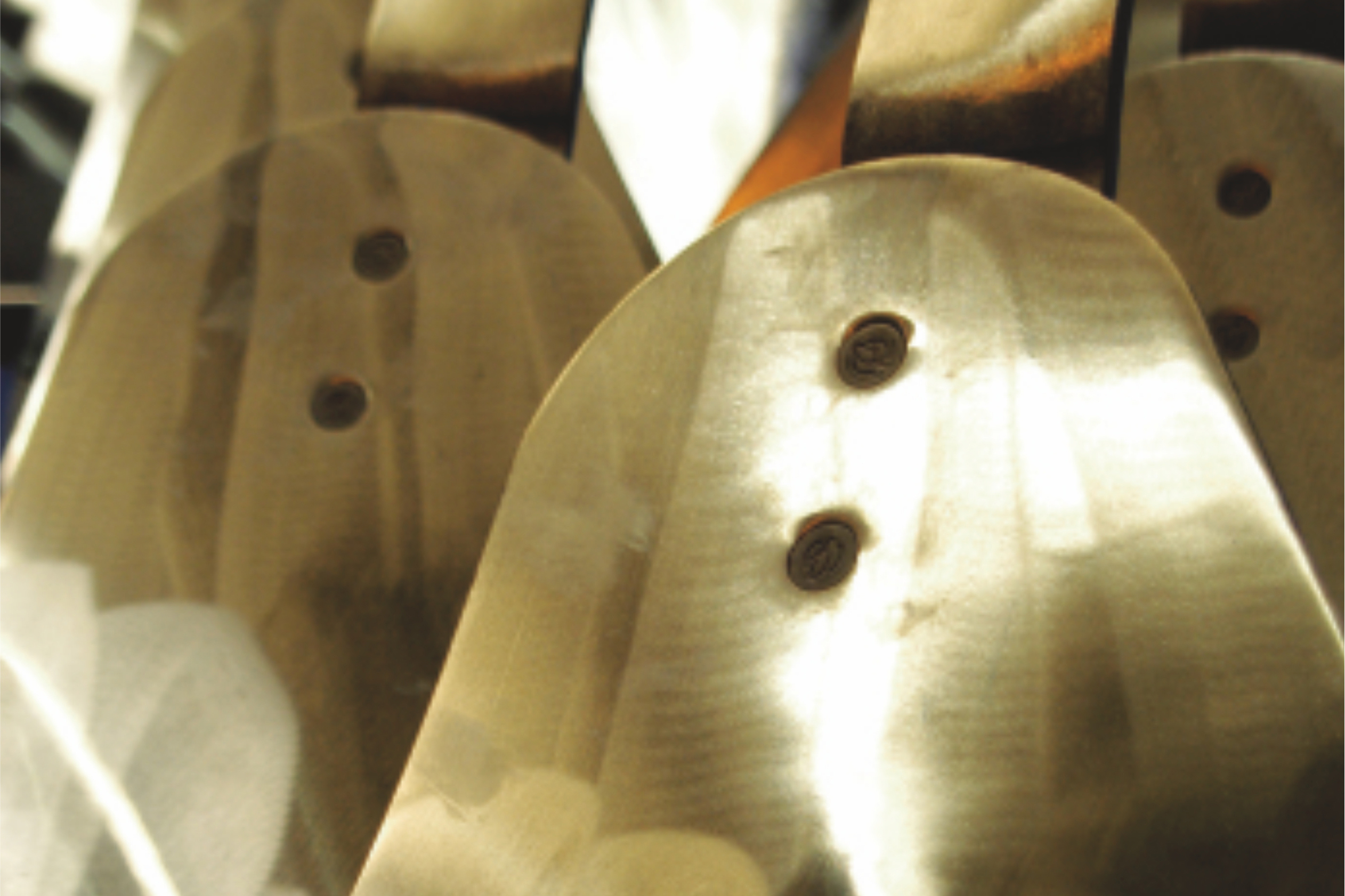

The Plough Body

The plough body is tempered and thus very strong. Each share is adjustable for pitch and thus always allows a good entry of the plough. The smooth progression from share to mould board and the low resistance offered by the shape of the overall plough body reduce tractive force requirement even more.

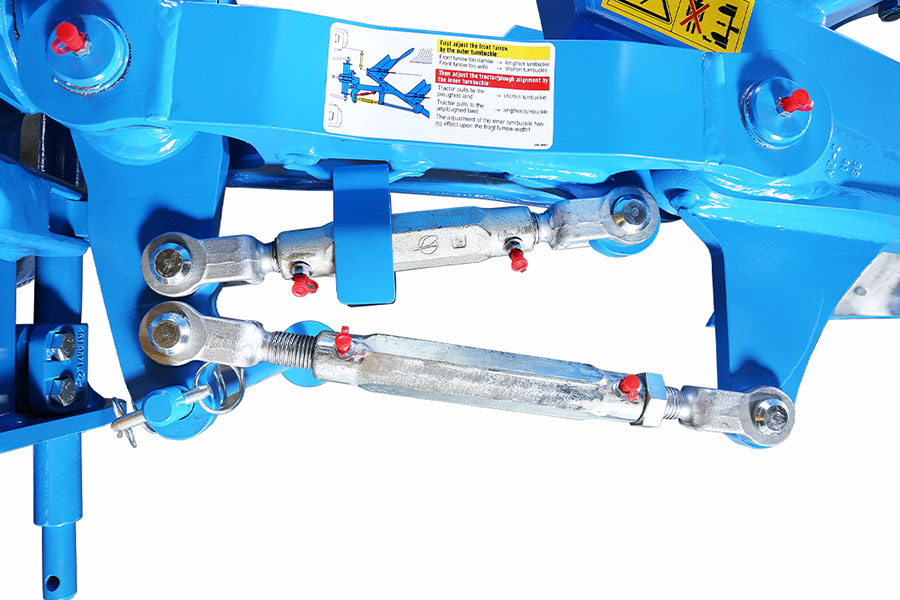

Optiquick Adjustment Setting.

Optiquick allows for the easy & efficient adjustment of front furrow width & tractor pull line, independently of each other. Lateral forces are eliminated in easier way with this optiquick adjustment setting.

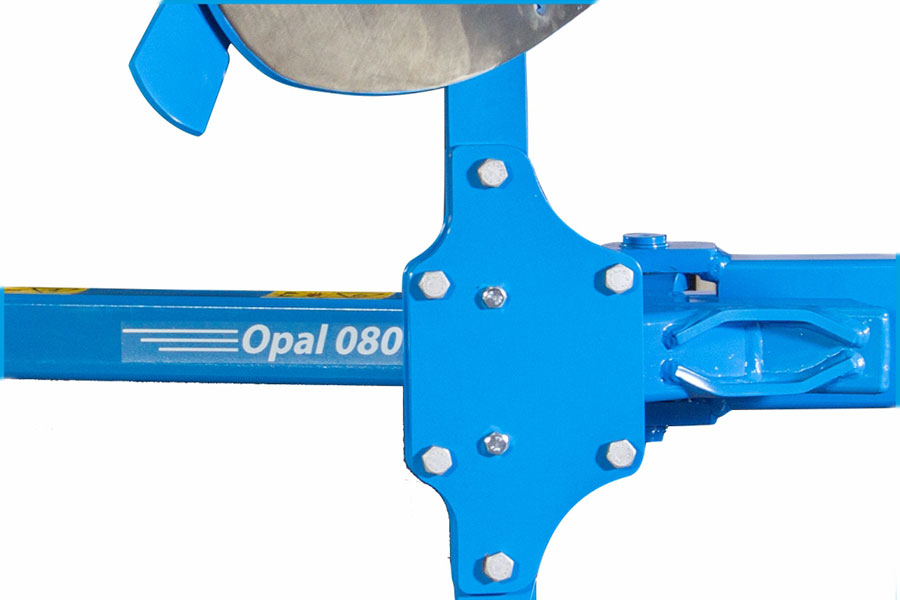

Over Load Security.

Even where the share point is firmly caught under the stone, tree root or rock ridge, all LEMKEN ploughs are protected against damage by an additional shear bolt device as standard. A new shear bolt easily and quickly replaced and the work will not suffer.

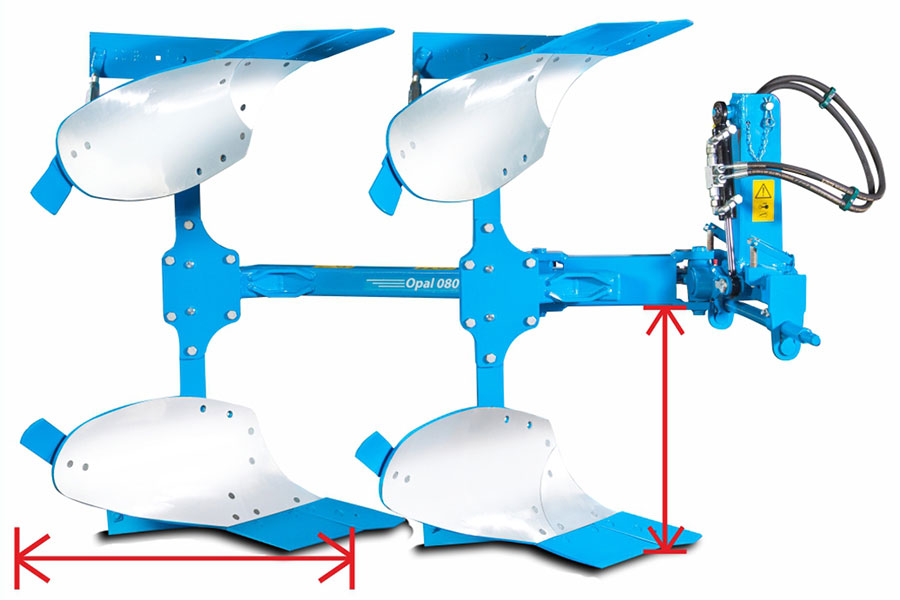

Inter body and under Frame Clearance.

Large inter body and better under frame clearance avoids the blockages even at close settings for furrows.

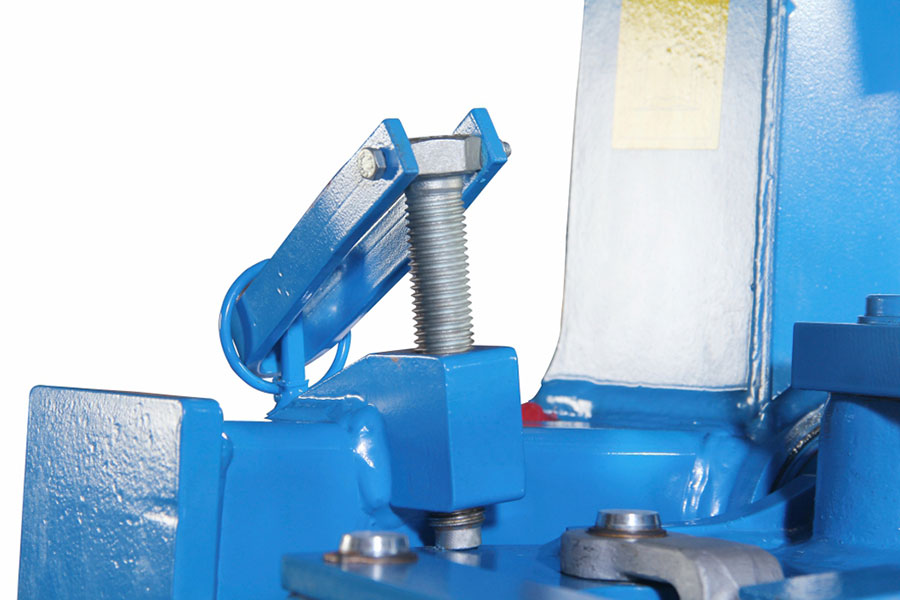

Infinite Angle Adjustment.

Angle adjustment independent for L/H & R/H work. Corrosion resistance adjuster screws always ensure a smooth operation.

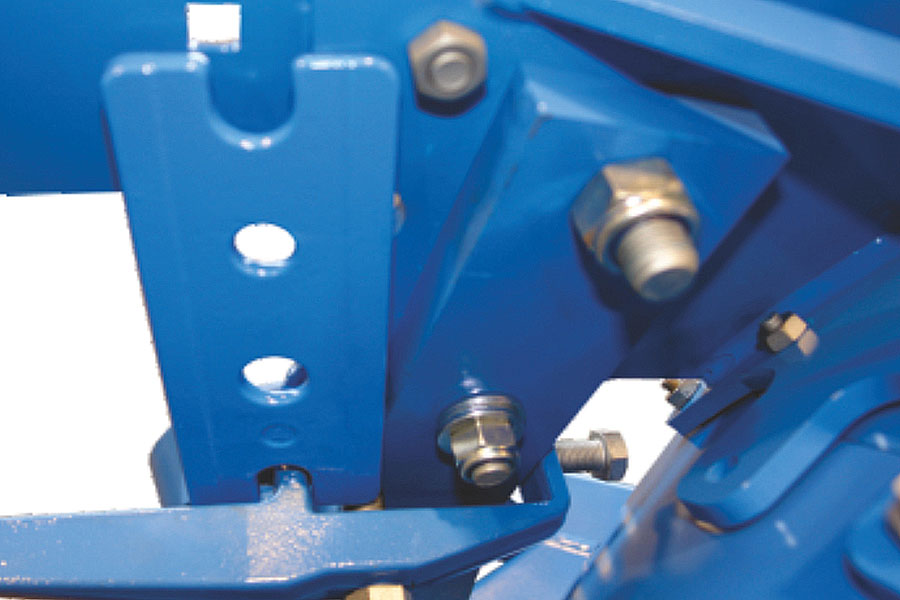

Adjustment for working width.

Soil type, moisture content, ploughing for immediate sowing or good weathering over winter all have different demands on the plough setting and this is the why the simple and quick adjustment of the furrow cutting width with the help of Angle Plate is possible.

Box Section Frame 90 x 90 x 7.1
Number of Furrows 2 MB 3MB (2+1)
Working Width Inches 21 25 29 31.5 37.5 43.5
Milli Meters 530 635 735 800 950 1100
HP Required Light & Medium Soil 50 55 60 65 70 75
Hard Soil 55 60 65 70 75 80
Weight (Kg) 410 550
Working Depth (Inch) Light & Medium Soil 10-14
Hard Soil 10-12
Underframe Clearance (mm)   700 700
All specifications, dimensions and weights are subject to continuous technical development and are therefore not binding. The weight specifications always refer to the basic equipment, subject to change.
