Kyanite 7
Engineered for Efficient and Quality Seedbed Preparation

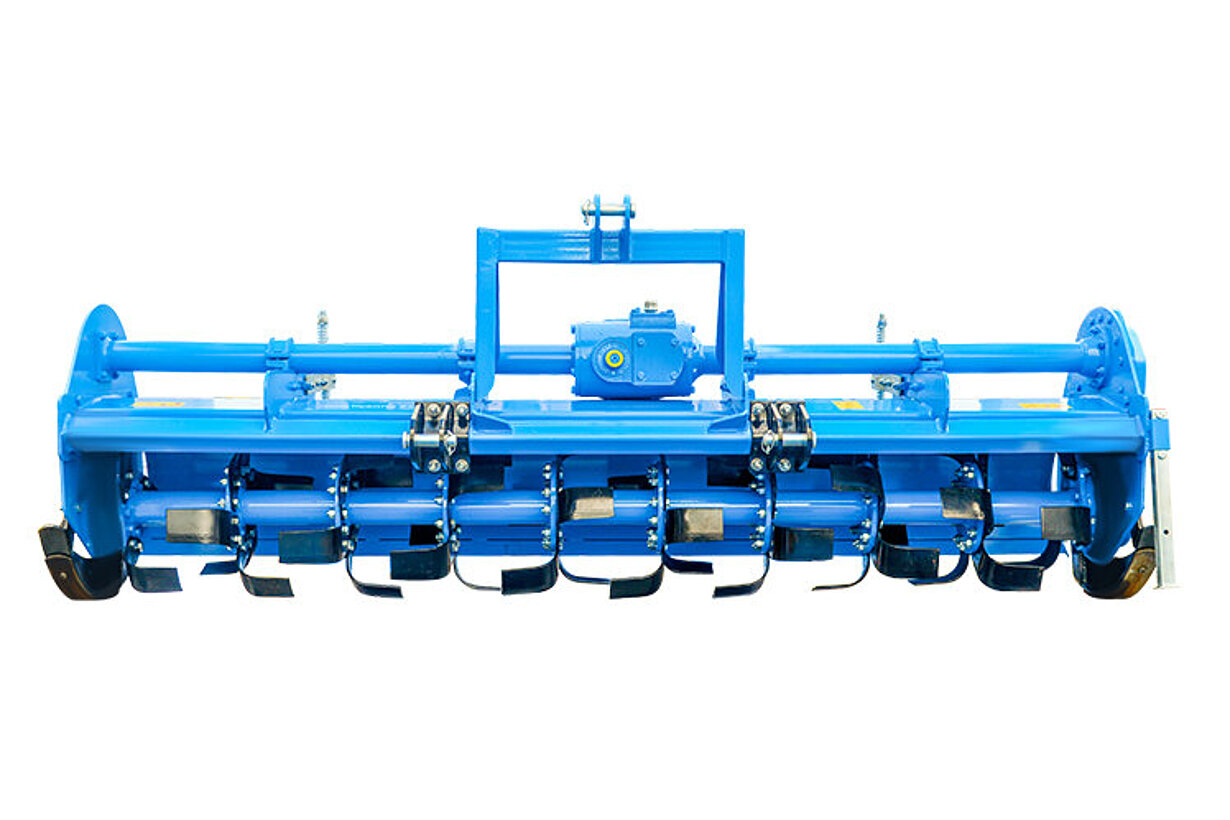

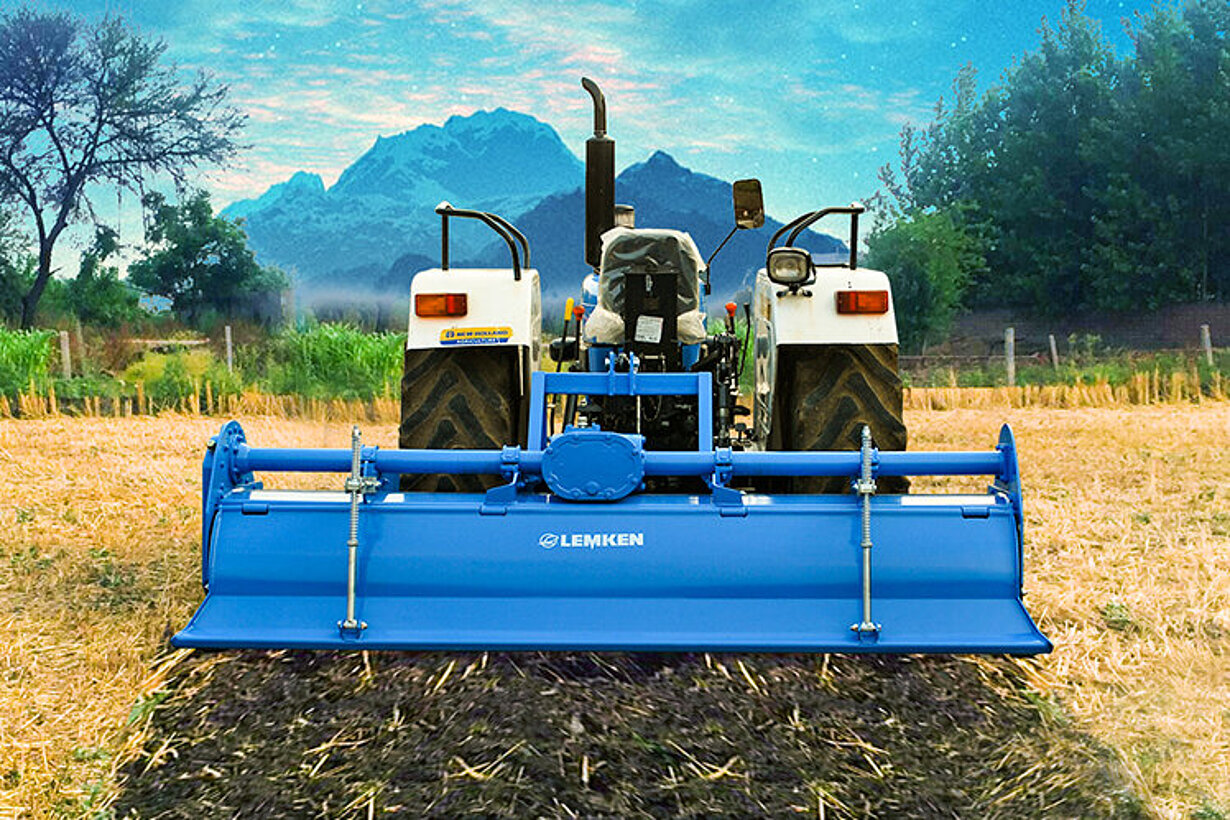

The LEMKEN Kyanite 7 Rotary Tiller is crafted for superior seedbed preparation and land cultivation across a wide range of soil types.
Designed specifically for the needs of Indian agriculture, the Kyanite 7 enhances farm productivity through efficient performance, low maintenance, and superior durability, all while delivering maximum area coverage and fuel savings.
Kyanite 7 at a glance
Features
- Up to 20% Faster.
- Low Maintenance.
- More Durable structure .
- More Area Coverage.
- Save Fuel.
- Optimum weight.
- High Quality Blades.
Key Applications by Series
- SX Series: Engineered for heavy soils, providing deep tillage and thorough soil pulverization.
- DX Series: Ideal for medium soils, ensuring balanced performance for general land preparation.
- EX Series: Best suited for light soils, promoting optimal soil mixing and aeration with minimal compaction.

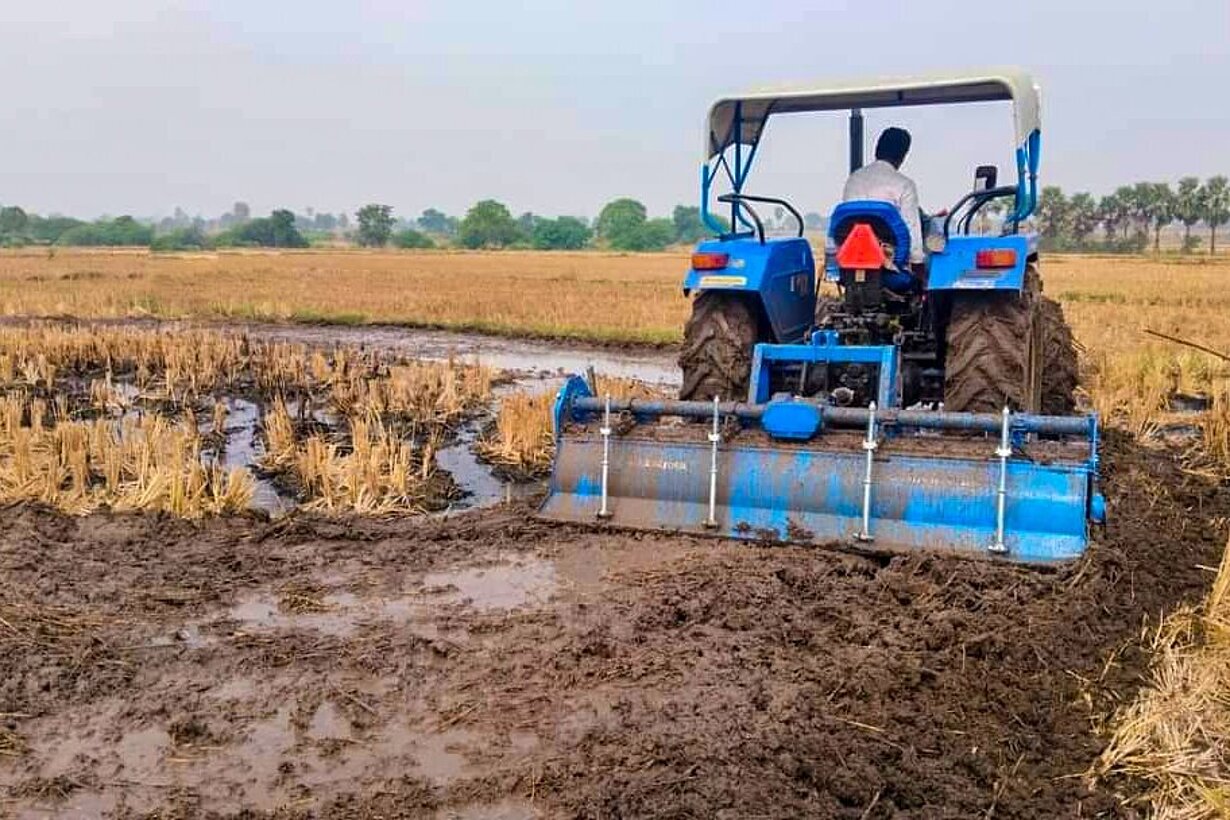

- LX Series: Designed for light and wet puddling conditions, particularly useful for rice cultivation.
„A great product isn't just a collection of features. It's how it all works together.“

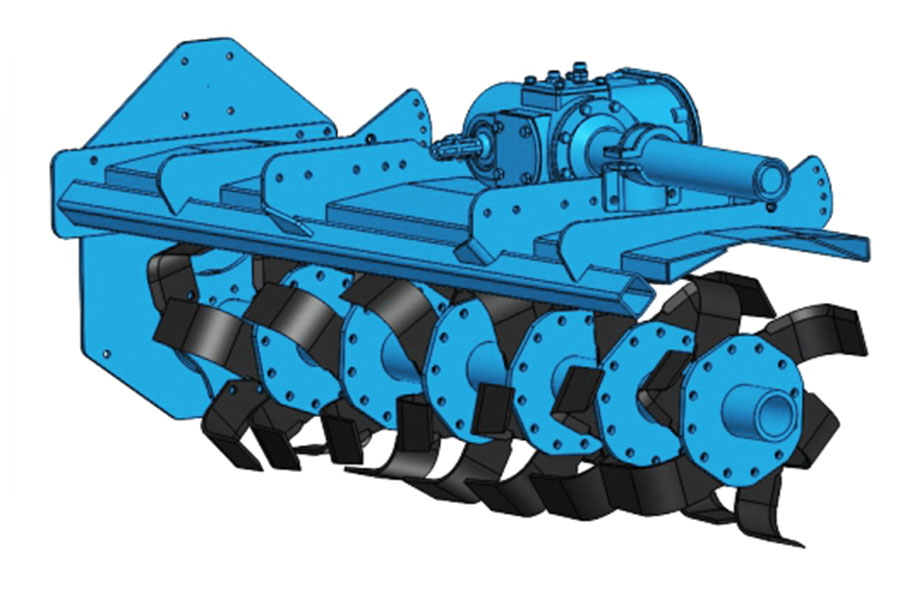

Strong Body Design.
Specially designed & folded mainframe panel with High Stif fness due to forming of two triangular tubular sections & reduces mud clogging. High rigidity by full length reinforce, additional square tube & wider endplates results in High Life & Negligible Dents, No Cracks.

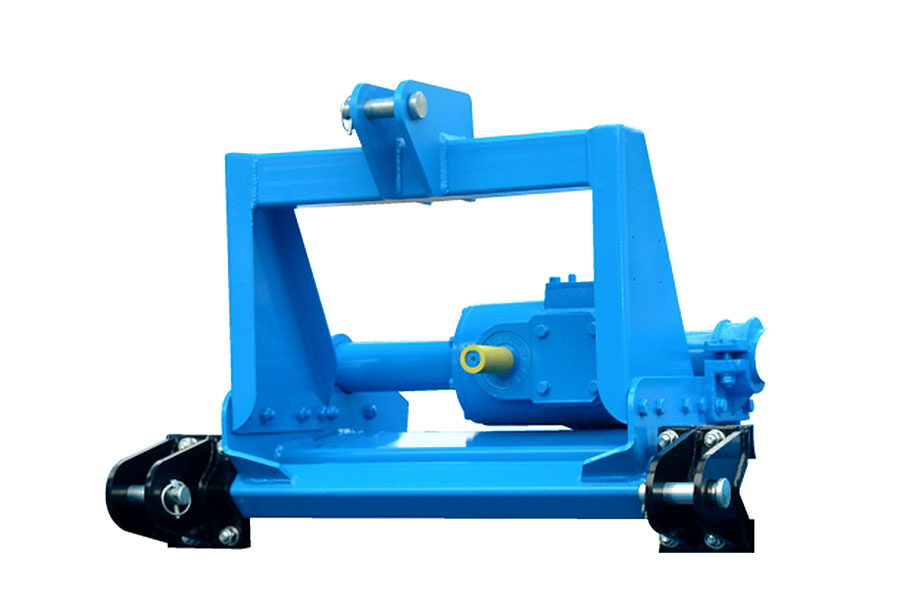

Robust 3-point Linkage.
Hitch Pyramid made with high strength square tubes which provides Stability and Load is evenly distributed on higher length of link with tractor 3 Point linkage.

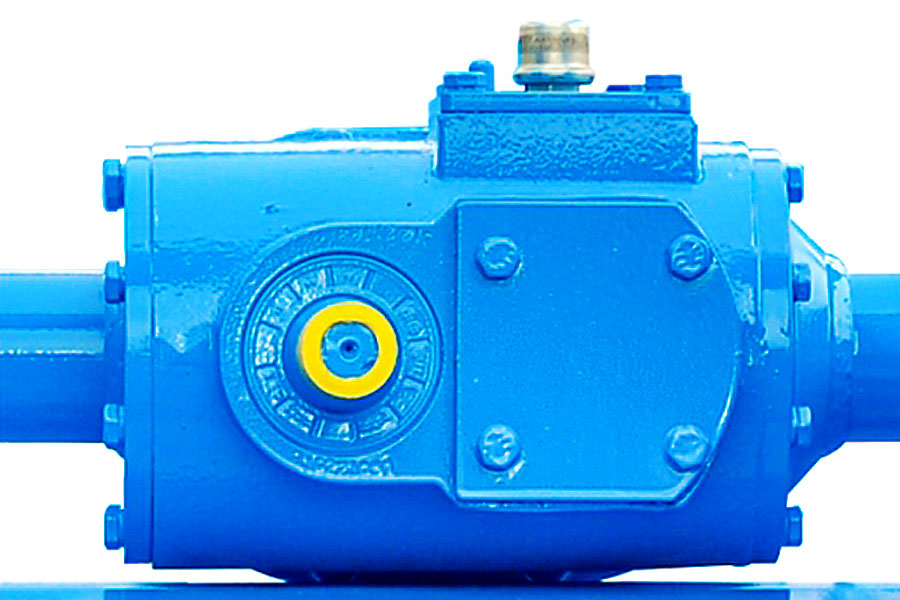

Heavy-duty Gearbox.
Kyanite 7 comes with multi speed Gearbox which is designed with high accuracy and precise profile bevel gears having high face width for Minimal Transmission Losses, low noise & lesser load with high life. Gearbox bearings and seals provides long trouble-free life.

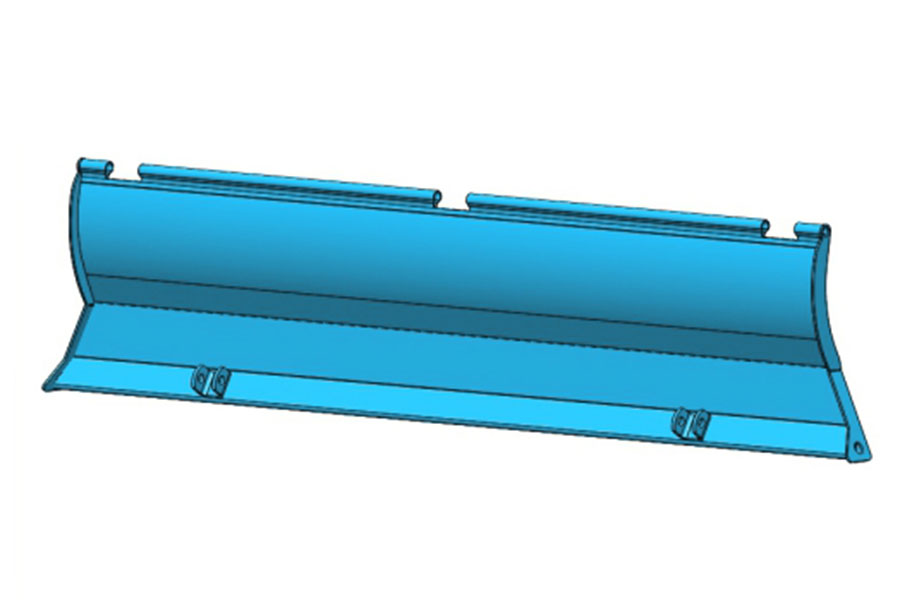

Unique Trailing Board design.
Accurate shape of trailing board for Uniform Spreading of soil during tillage. Tubular section at bottom provides high strength for soil levelling after tillage. Easy setting of Trailing board is possible with Spring rod.

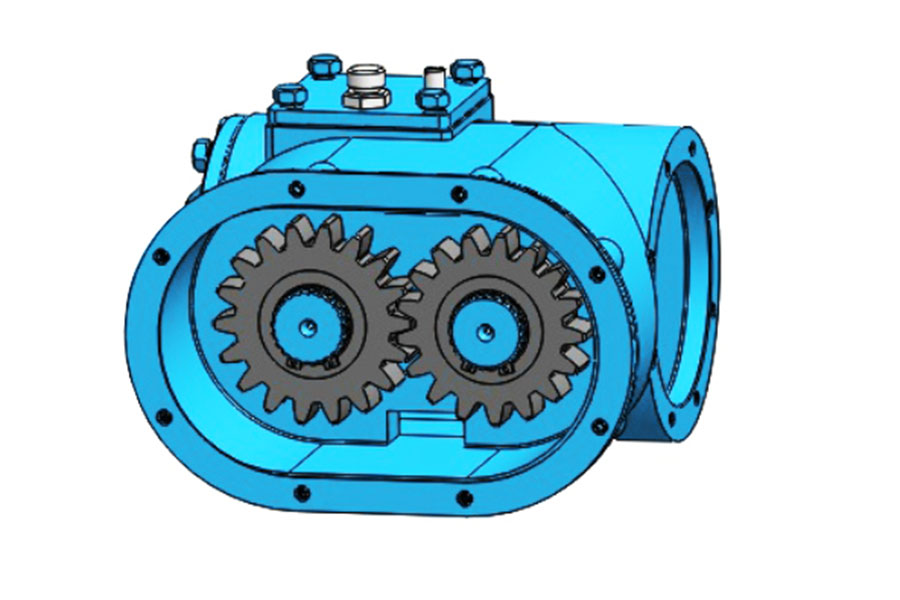

Multi speed combination.
Kyanite 7 gear box offers range of speed options for Light to Heavy soil cultivation operations. Its gearbox is designed for quick change of gears for various speed combinations.
Optimum Clearance.
- Kyanite 7 SX models available with large gap between blade edge and mainframe panel. Which enables easy and Clog Free Movement of soil and crop residue during the operation. Secondary Transmission .
- Kyanite 7 designed with safe and reliable gear drive transmission for secondary transmission.
Secondary Transmission.
Kyanite 7 designed with Safe and Reliable gear drive transmission for secondary transmission.

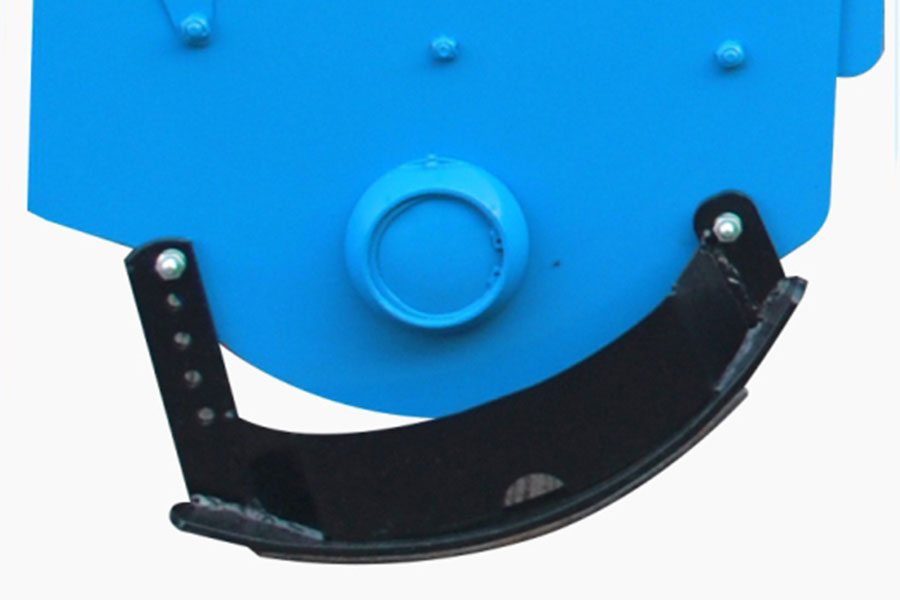

Adjustable Skids.
For different field condition height of Skids can be adjusted using the different combination of holes on Skid assembly. Also it ensure the easy forward movement of machine without deposition of soil or residue on both ends.

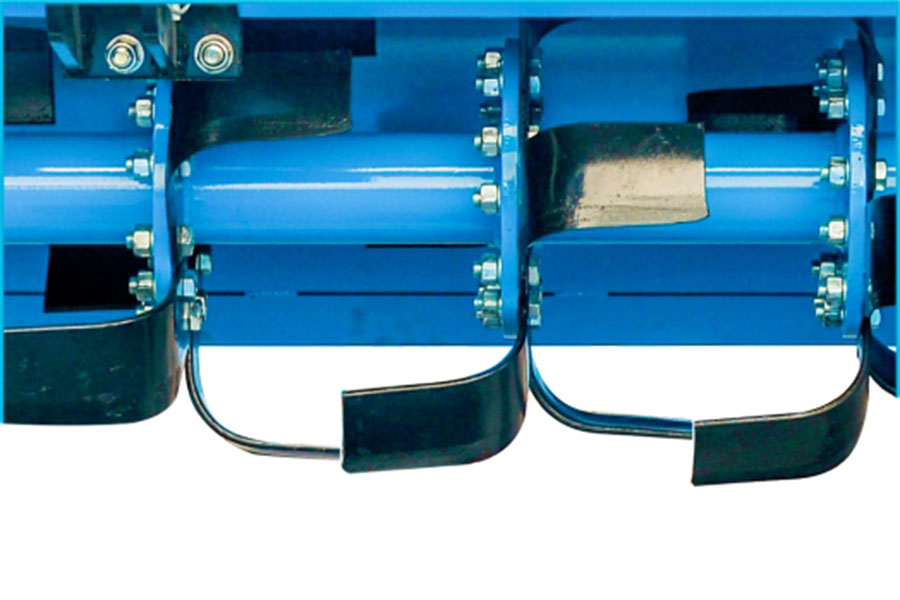

High Quality Rotor Shaft & Blades.
Rotor shaft is made from high strength structural steel Seamless Tube with best in class 10 mm Thickness. High quality Specially Designed Blades made from Boron steel grades and draft reducing design for excellent performance and low wear.

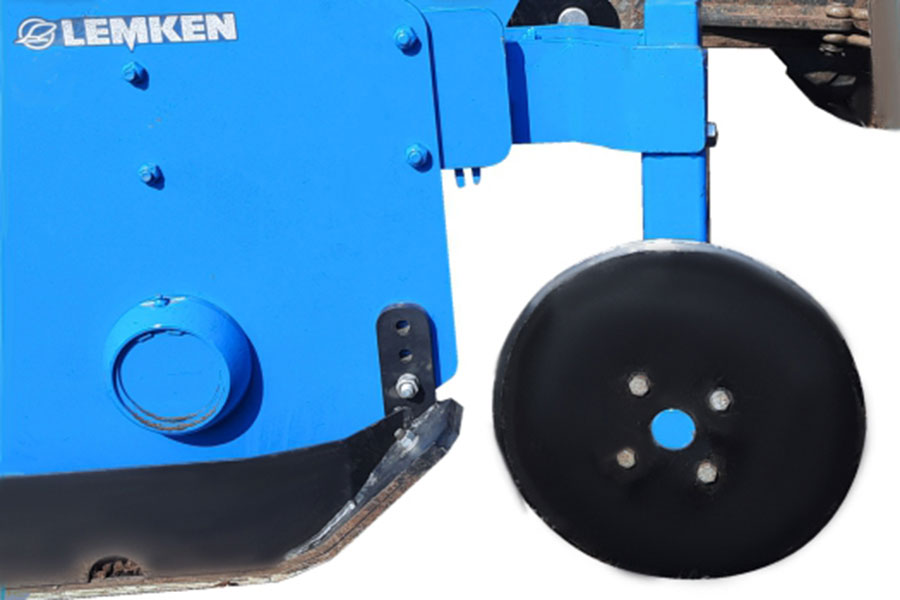

Side Discs.
The disc help accessing of soil and crop residues in to rotor, avoid clogging. Results in to a well levelled seedbed. Available as an additional accessories.
Technical data

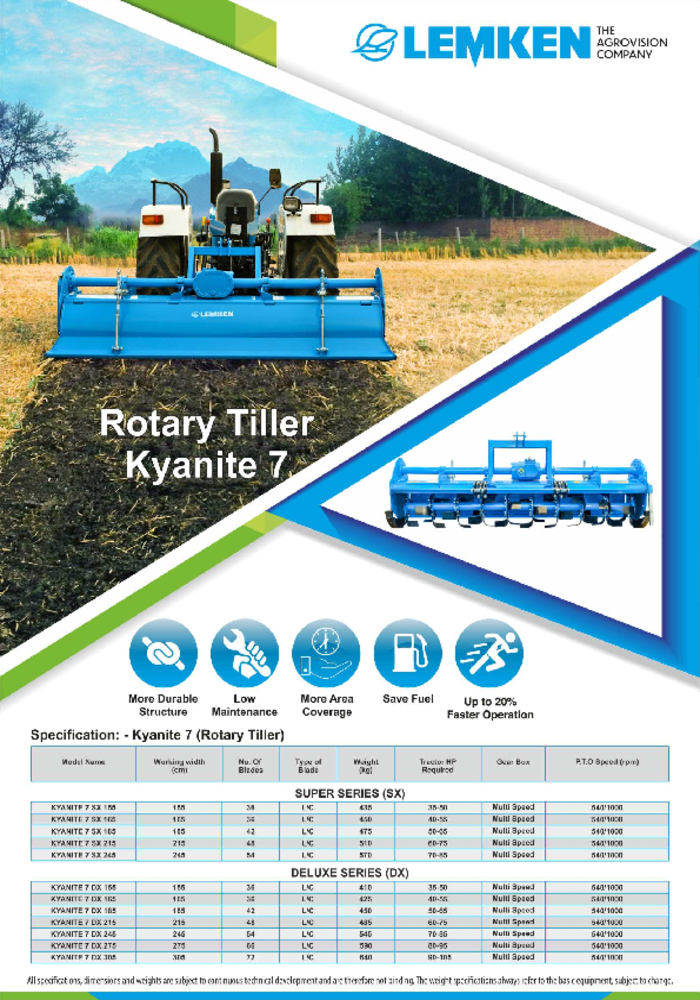

Specification Rotary Tiller Kyanite 7
| Model Name | Working width (cm) | No. of Blades | Type of Blade | Weight | Tractor HP required | Gear Box | P.T.O. Speed (rpm) |
|---|---|---|---|---|---|---|---|
| KYANITE 7 SX 155 | 155 | 36 | L/C | 435 | 35-50 | Multi Speed | 540/1000 |
| KYANITE 7 SX 165 | 165 | 36 | L/C | 450 | 40-55 | Multi Speed | 540/1000 |
| KYANITE 7 SX 185 | 185 | 42 | L/C | 475 | 50-65 | Multi Speed | 540/1000 |
| KYANITE 7 SX 215 | 215 | 48 | L/C | 510 | 60-75 | Multi Speed | 540/1000 |
| KYANITE 7 SX 245 | 245 | 54 | L/C | 570 | 70-85 | Multi Speed | 540/1000 |
| Deluxe Series | |||||||
| KYANITE 7 DX 155 | 155 | 36 | L/C | 410 | 35-50 | Multi Speed | 540/1000 |
| KYANITE 7 DX 165 | 165 | 36 | L/C | 425 | 40-55 | Multi Speed | 540/1000 |
| KYANITE 7 DX 185 | 185 | 42 | L/C | 450 | 50-65 | Multi Speed | 540/1000 |
| KYANITE 7 DX 215 | 215 | 48 | L/C | 485 | 60-75 | Multi Speed | 540/1000 |
| KYANITE 7 DX 245 | 245 | 54 | L/C | 545 | 70-85 | Multi Speed | 540/1000 |
| KYANITE 7 DX 275 | 275 | 66 | L/C | 590 | 80-95 | Multi Speed | 540/1000 |
