Opal 080 E – Perfect Technology for Improved Work Quality Lightweight Strength, Efficient Performance

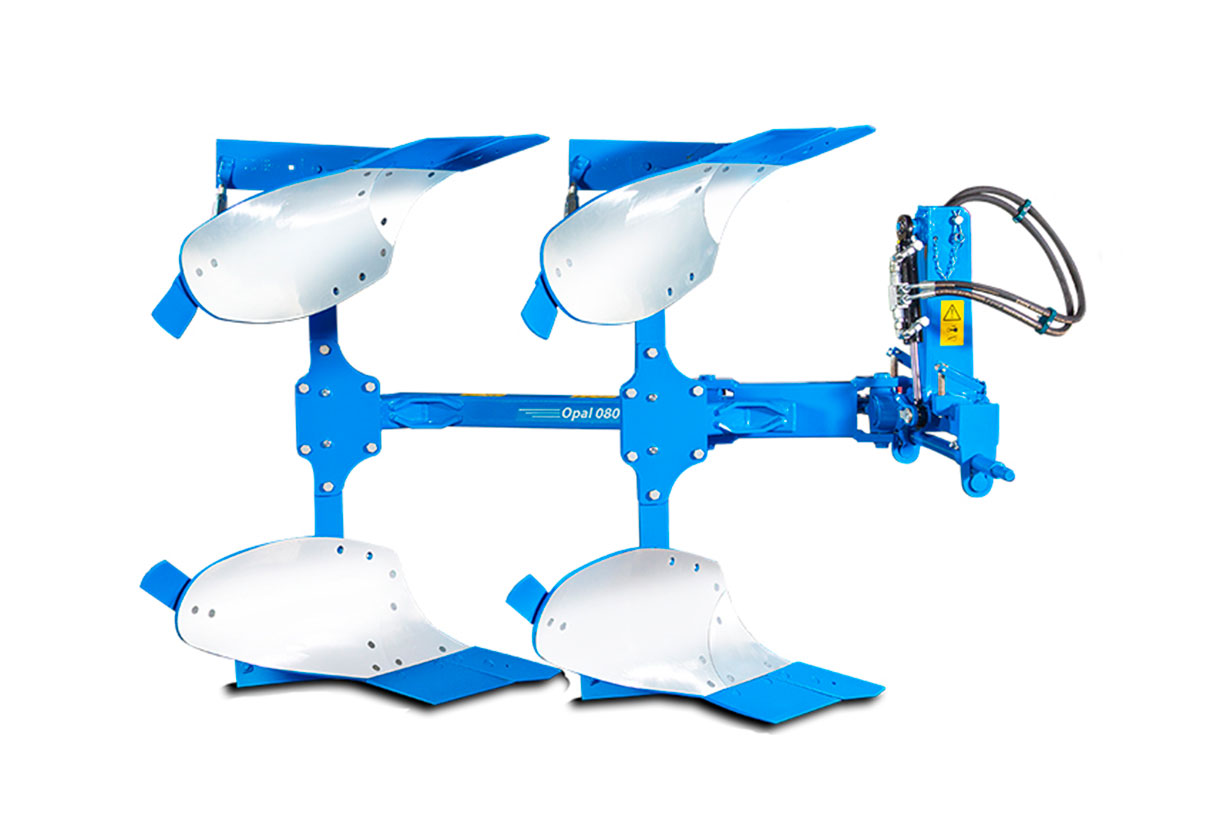

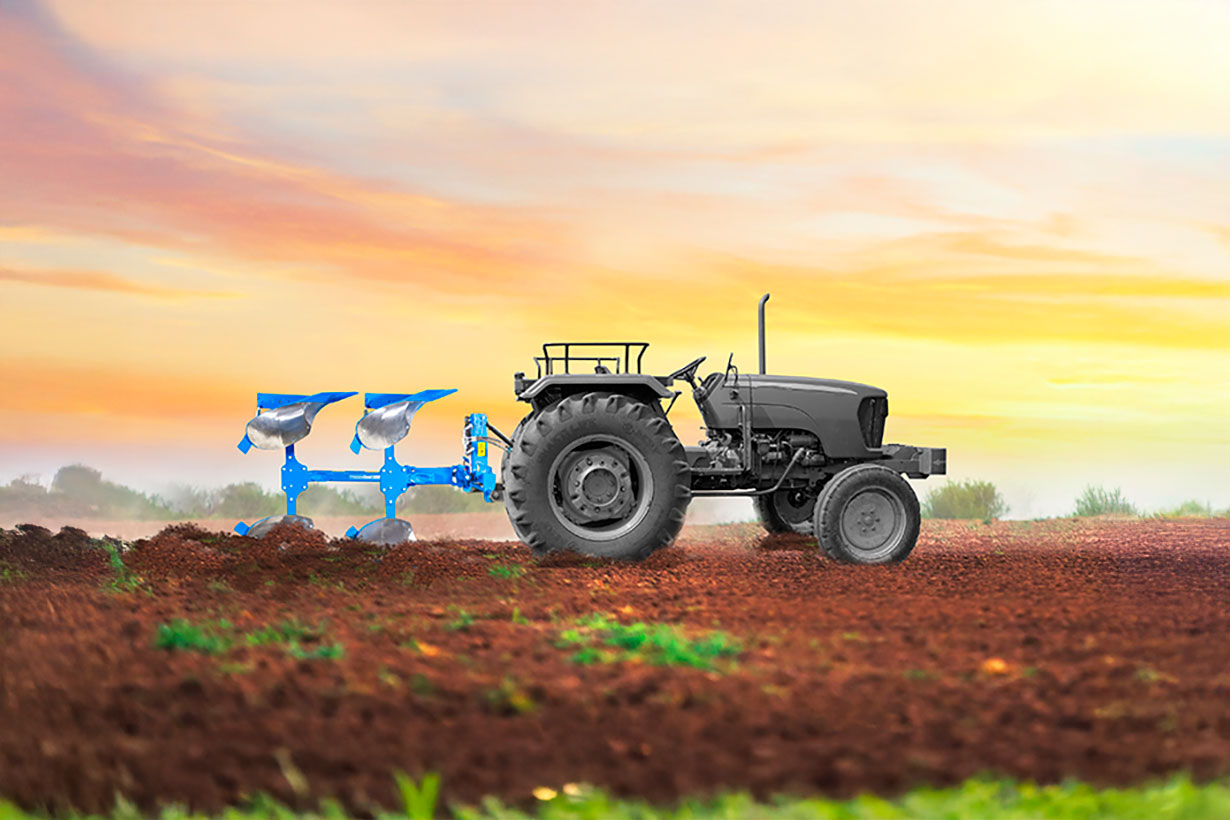

The LEMKEN Opal 080 E mounted reversible plough offers the perfect combination of high strength and low weight, making it ideal for small to medium tractors.

Designed for 42–48 HP tractors, it is exceptionally easy to pull, ensuring efficient fuel usage and high field productivity. Built with robust German engineering, the Opal 080 E brings durability, precision, and ease of use to your fields.

Features

  • The plough body is tempered and thus very strong.
  • The short and strong turnover axle.
  • Protected against damage by shear bolt device.
  • Large interbody and better under frame clearance.

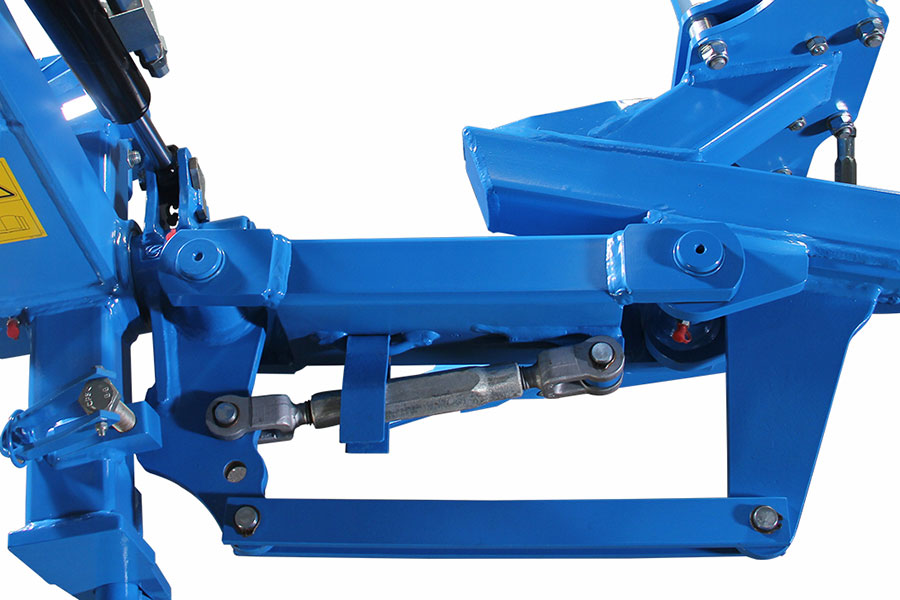

Front Furrow Adjustment.

Adjustment of front furrow width for uniform Ploughing and leveled field furrows.

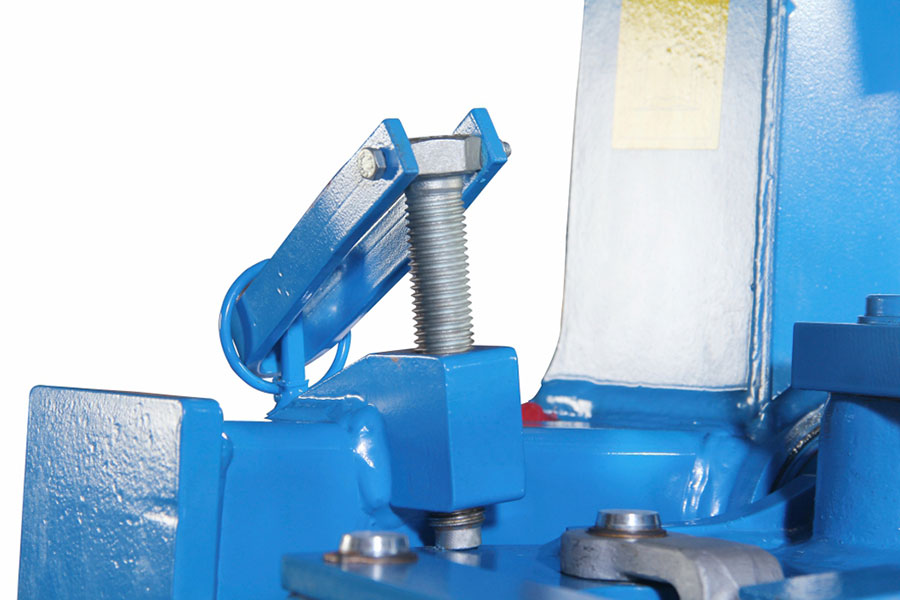

Infinite Angle Adjustment.

Independent angle adjustment of RH and LH Suitable to adjust for different depths & fields during ploughing.

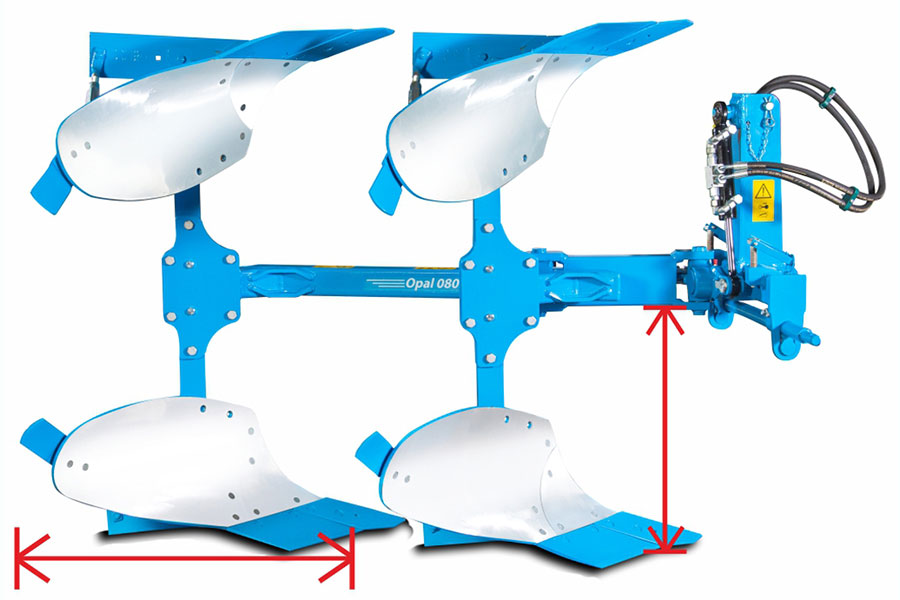

Inter body and under Frame Clearance.

Large inter body and better under frame clearance avoids the blockages even at close settings for furrows.

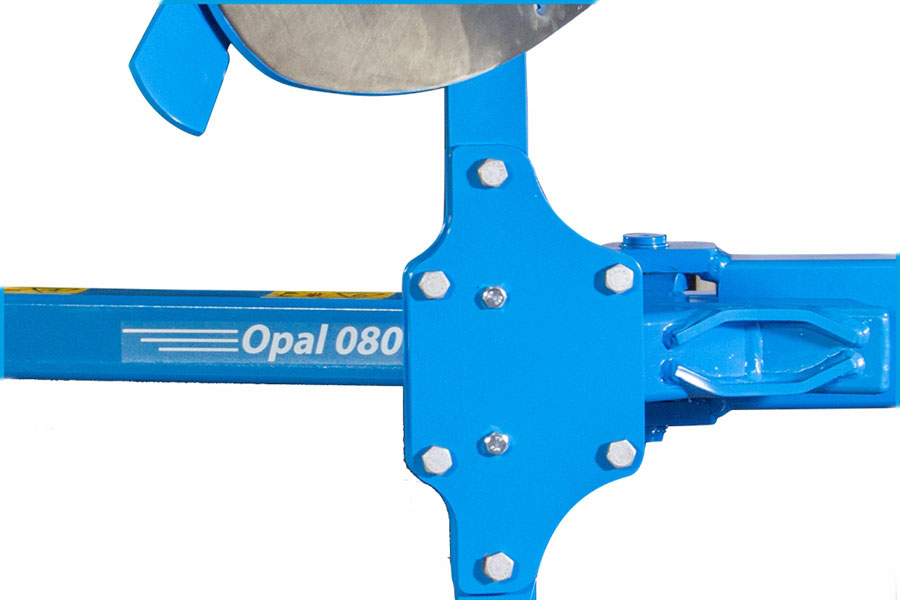

Over Load Security.

Even where the share point is firmly caught under the stone, tree root or rock ridge, all LEMKEN ploughs are protected against damage by and standard shear bolt device. A new shear bolt can be easily and quickly replaced and the work will not suffer.

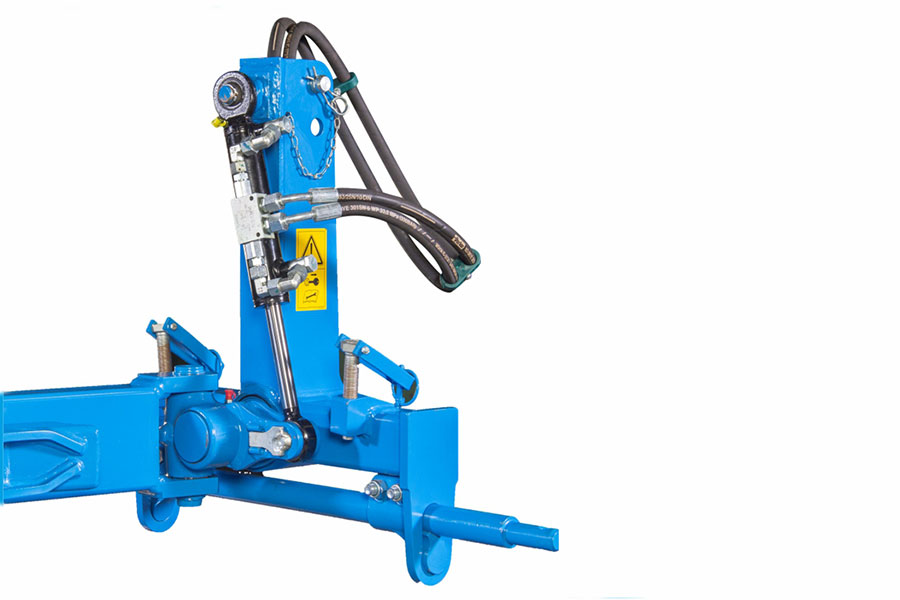

Reliable Turnover Mechanism.

AlI LEMKEN mounted ploughs feature the modern UNITERN hydraulic turnover mechanism with double acting ram which provides precise, safe and quick turnover action. The strong turnover axle with special hardened steel can with stand hard shock loads.

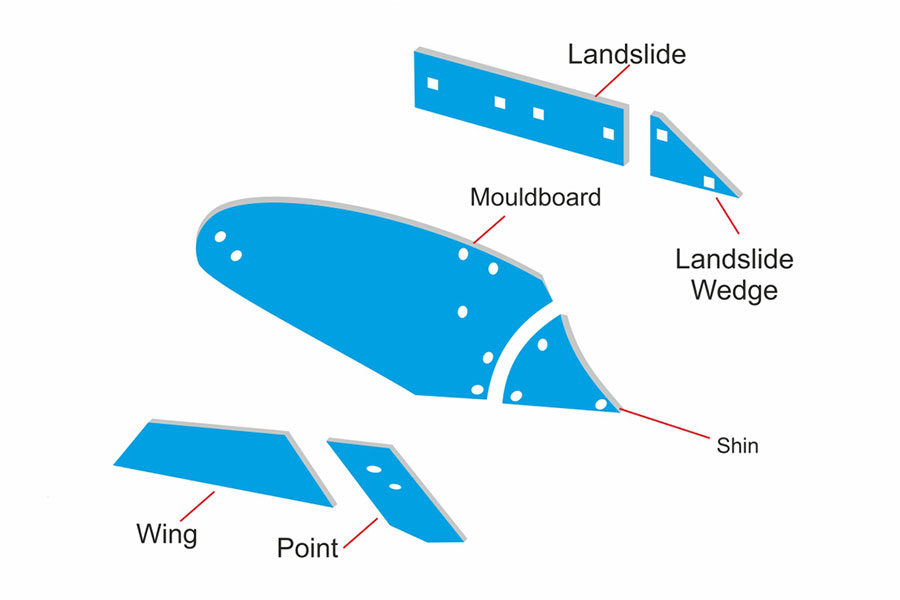

The Plough Body Construction

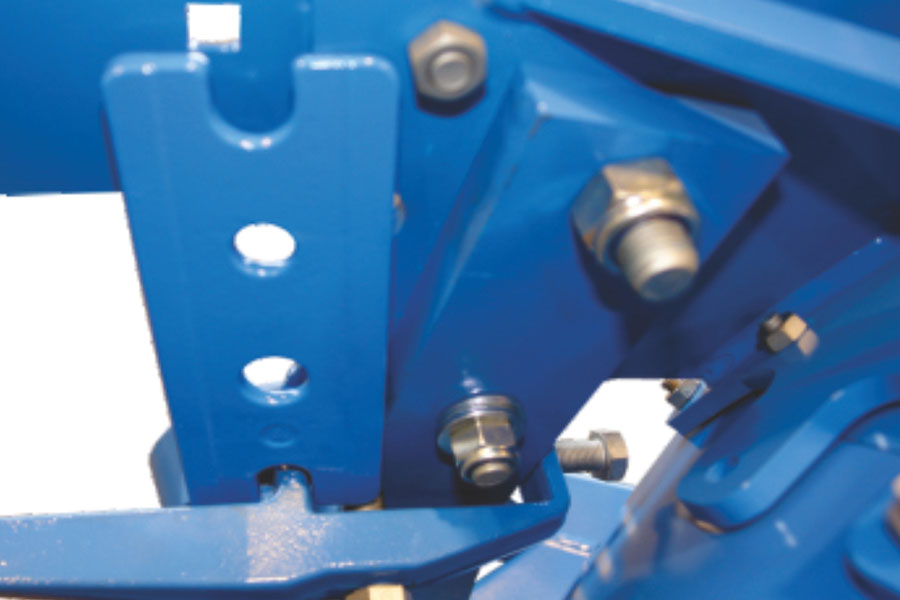

Adjustment for working width.

According to soil type, moisture content and tractor horse power we can increase or decrease the cutting width of LEMKEN plough with the help of wedge plate.

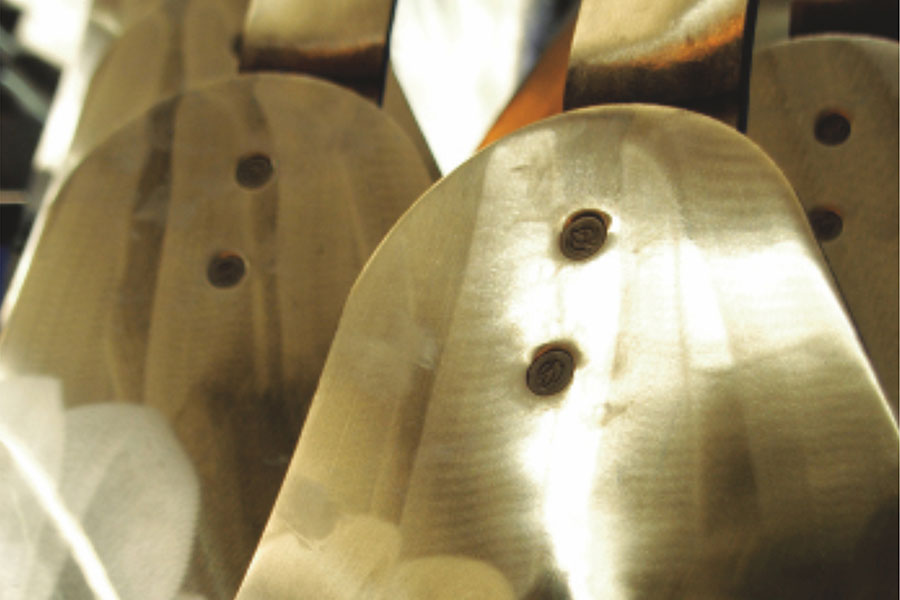

The Plough Body.

The plough body is tempered and thus very strong. Each share is adjustable for pitch and thus always allows a good entry of the plough. The smooth progression from share to mould board and the low resistance offered by the shape of the overall plough body reduce tractive force requirement even more.

Technical data

Opal 080 E, Seamless Box Section Frame 80x80x7.1
Number of Furrows 2 MB
Working Width Inches 21 25 29
Milli Meters 530 635 735
HP Required Light & Medium Soil 40 42 45
Hard Soil 42 45 47
Weight (Kg) 350
Working Depth (Inch) Light & Medium Soil 10 - 12
Hard Soil 8 - 10
All specifications, dimensions and weights are subject to continuous technical development and are therefore not binding. The weight specifications always refer to the basic equipment, subject to change.

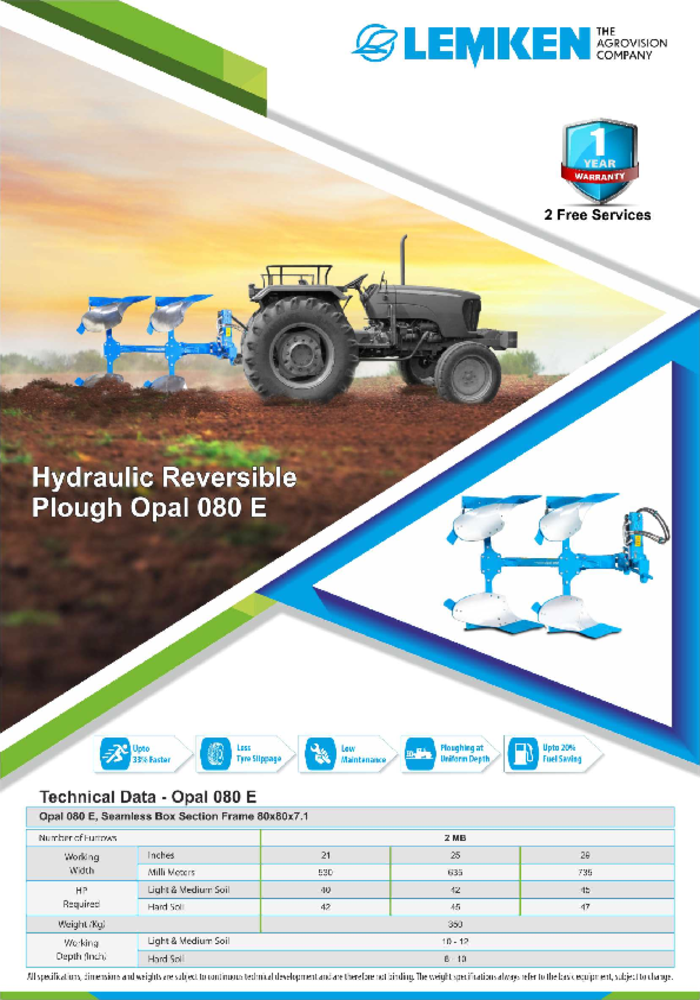

Leaflets
