Perfect Solution for Soil Compaction

Soil compaction seriously affects gas exchange, water infiltration, and nutrient uptake in the soil, leading to poor root growth and substantial yield losses.

The LEMKEN Melior Subsoiler offers a targeted, efficient, and long-lasting solution to combat soil compaction and restore soil health for improved agricultural productivity.

  • Basic frame with a 120 mm seamless square profile tube guarantees high stability.
  • The short and compact design of the Melior ensures a positive center of gravity.
  • large inter-tine and under frame clearance.
  • The hardened chisel shares & the stalk guard.
  • Flat & gradual shape of the Leg makes the Melior particularly easy to pull.
  • Infinitely variable adjustment of the Leg on the frame from 100 – 190 cm.

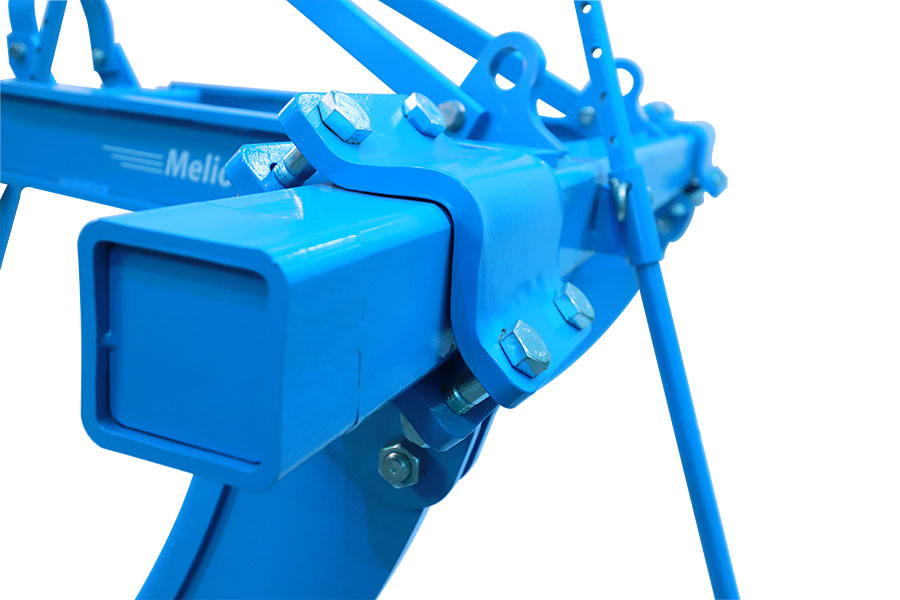

Heavy duty frame & design

A basic frame with 120 mm seamless High strength square tube thus guarantees high strength.

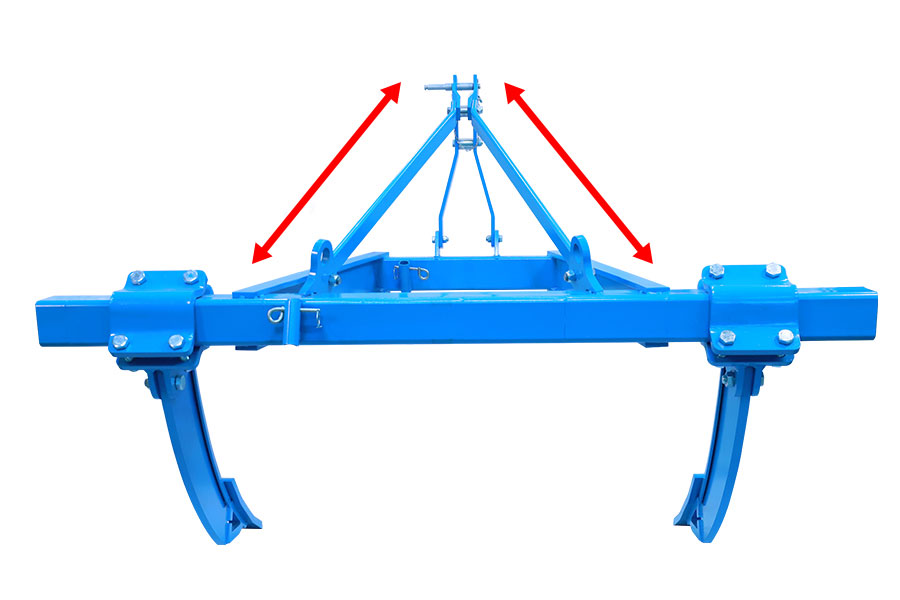

Even load distribution.

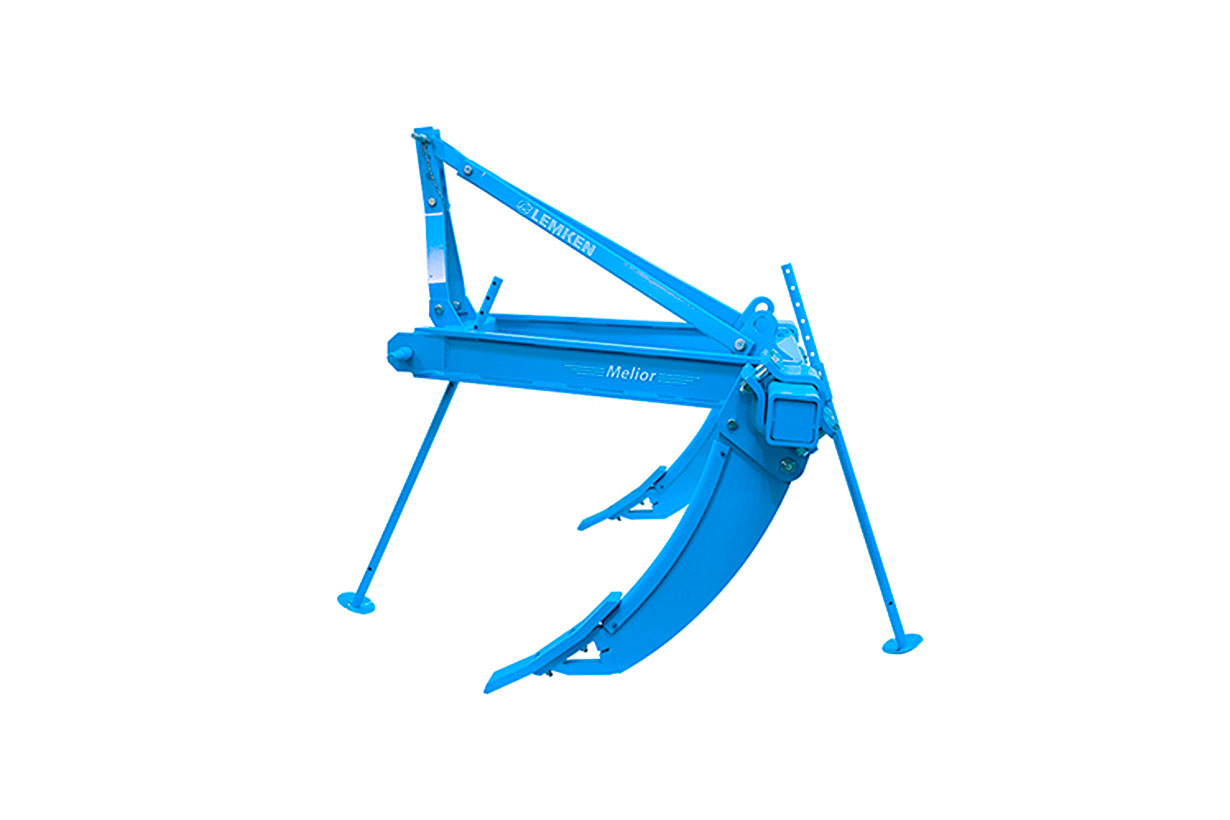

The short and compact design of the Melior ensures a positive center of gravity. The symmetrical positioning of the tynes on the 120 mm square box section frame ensures an even and uniform depth of both tynes.

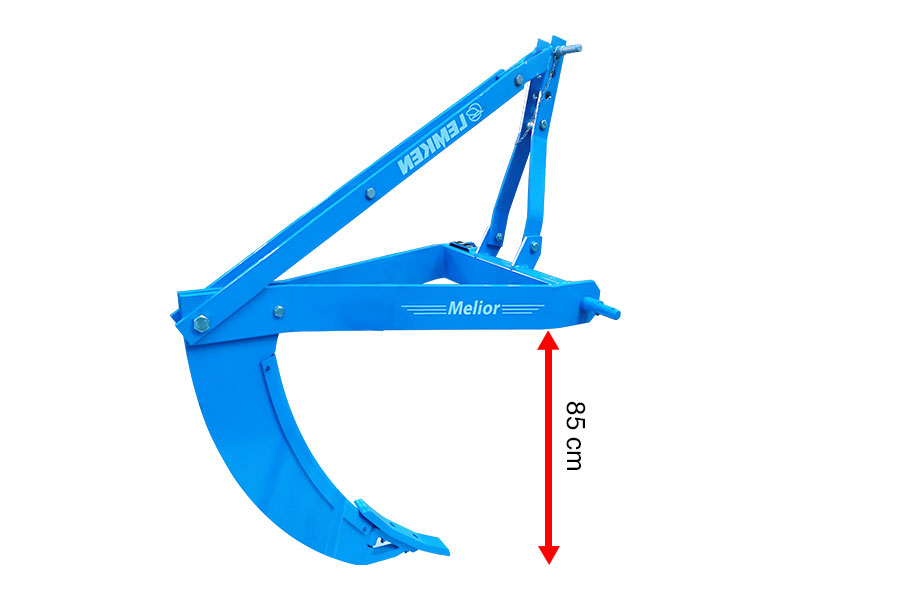

High frame clearance

Large inter-tyne and under frame clearance enables operation in dense trash conditions and virgin lands.

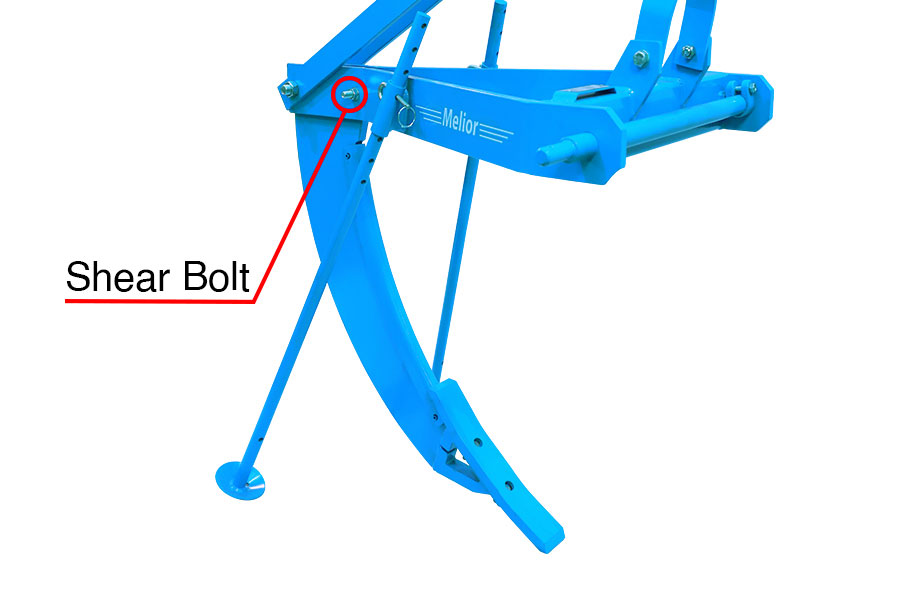

Protection from Damage

Double-cutting shear bolt provide protection from obstacles as it acts as an overload security and protects tractor & implement. Easily replaceable too.

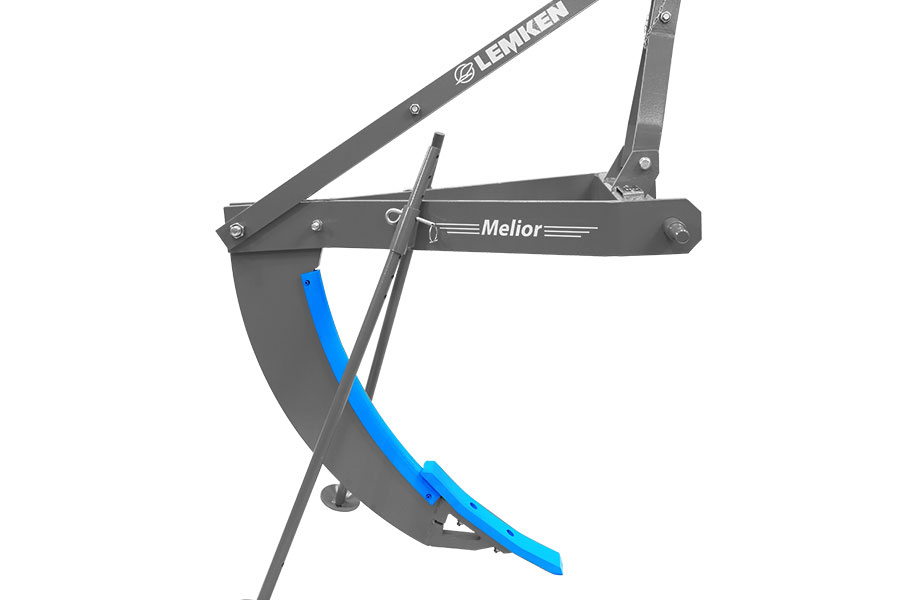

Long life wear parts

The through hardened chisel shares are reversible and thus provide longer use in field. Stalk guard protects Tyne wear and is easily replaceable.

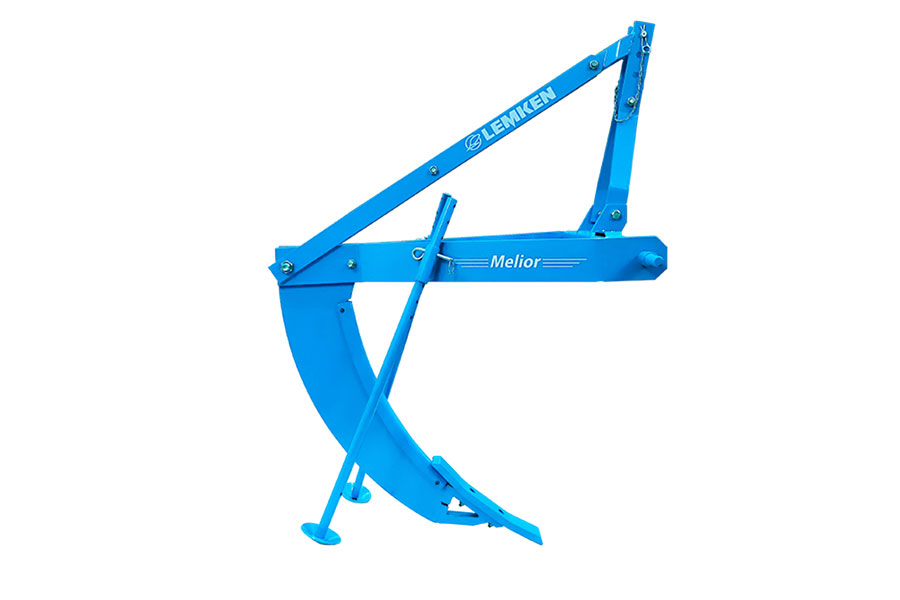

Unique shape of Leg.

The unique flat and gradual shape of the Leg makes the Melior easier to pull. It also ensures that the soil breaks up towards the front and upwards.

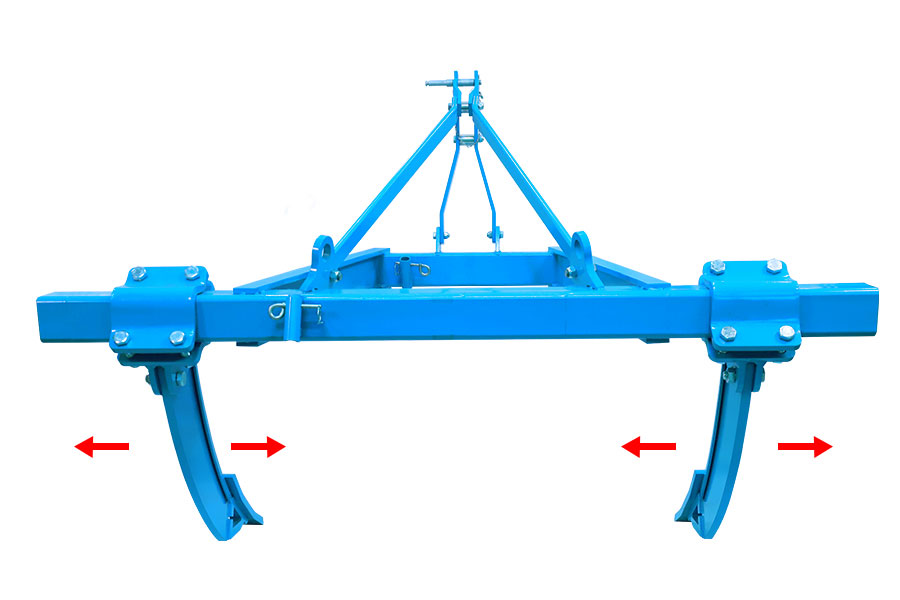

Adjustable Leg positions.

Variable adjustment of the Leg on the frame from 130 to 190 cm for suitable tractor track width. An addition 3rd Leg is available as an accessory for other loosening measures, depending upon Tractor HP and Soil conditions.

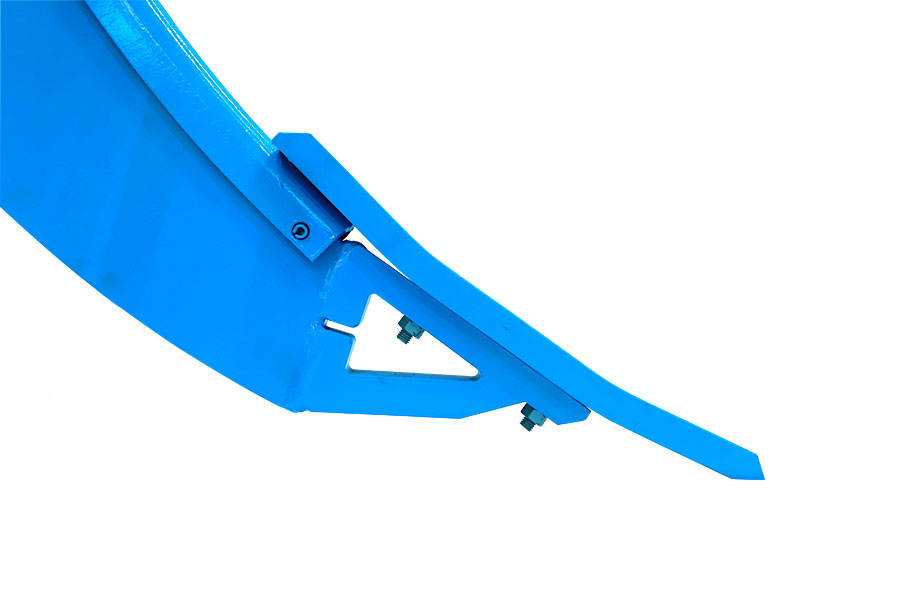

Easy service

All wear parts are bolted on Melior machine, so easily replaceable quickly thus reduces the total maintenance time.

Technical Data
Subsoiler Melior
Model Working Width(cm) No of tynes Underframe  Clearance (cm) Weight (Kg) Tractor HP  Required

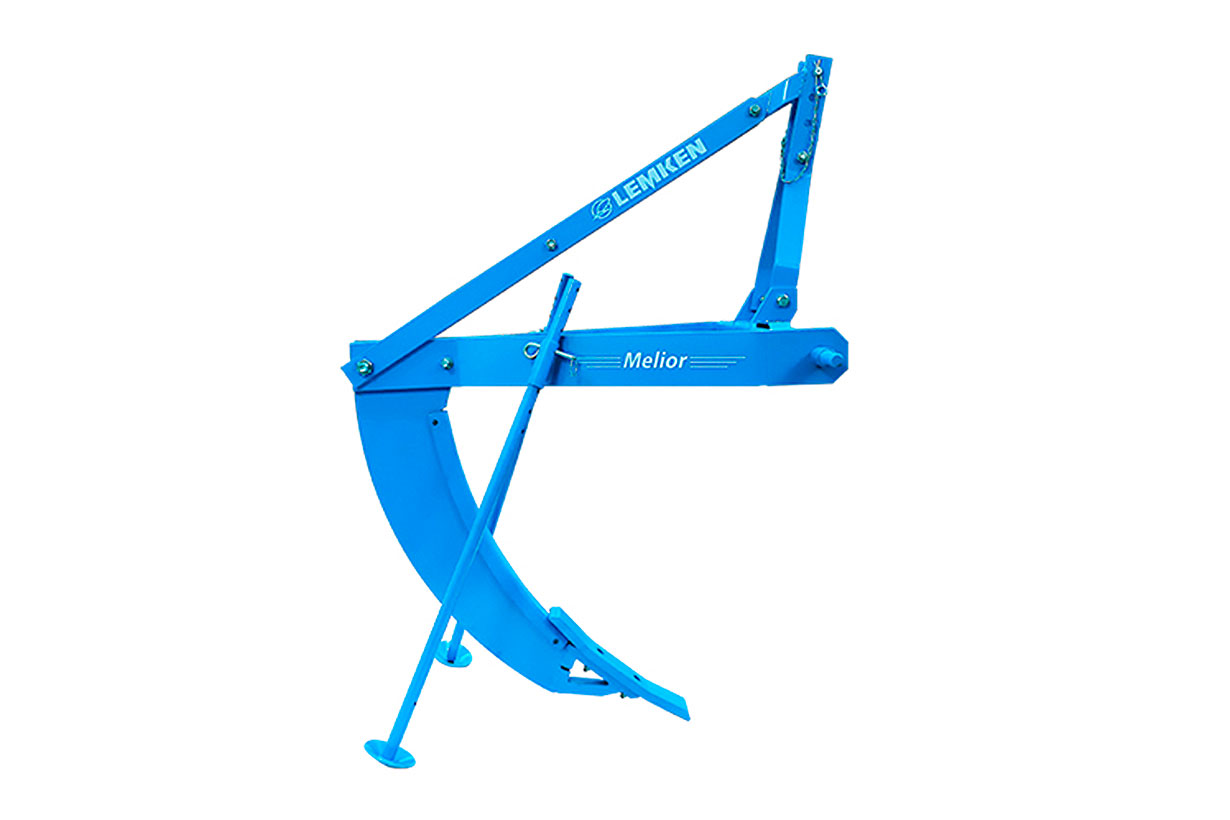

Melior 1/85 E 8 1 85 170 Kg 55 & above
Melior 2/65 E   Min —130 Max —190 2 65 355 Kg 65 & above
All specifications, dimensions and weights are subject to continuous technical development and are therefore not binding. The weight specifications always refer to the basic equipment, subject to change.

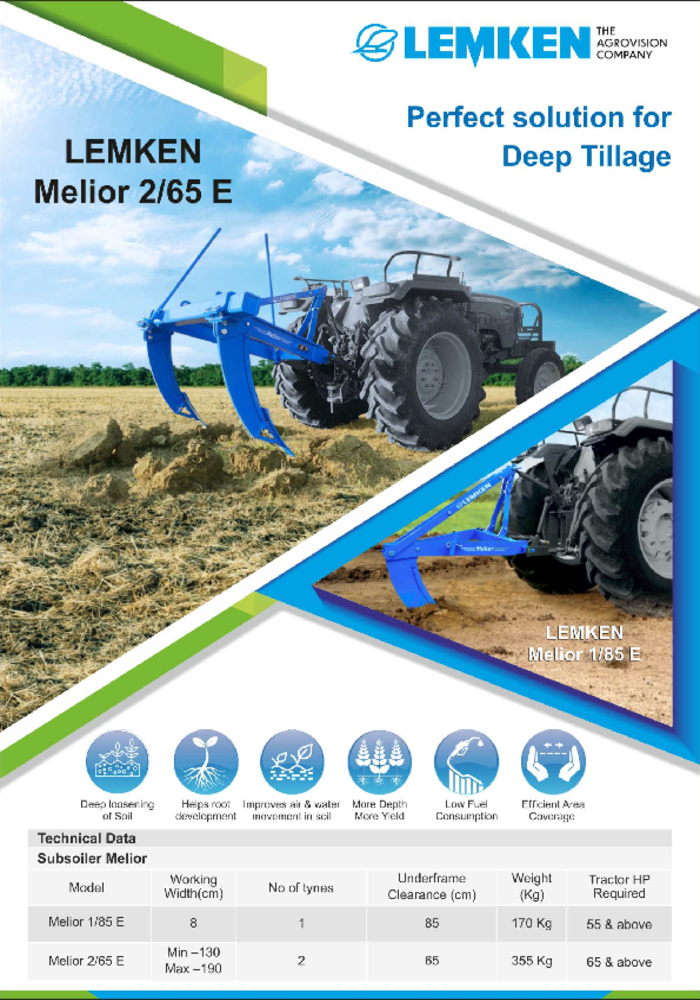

Leaflets
