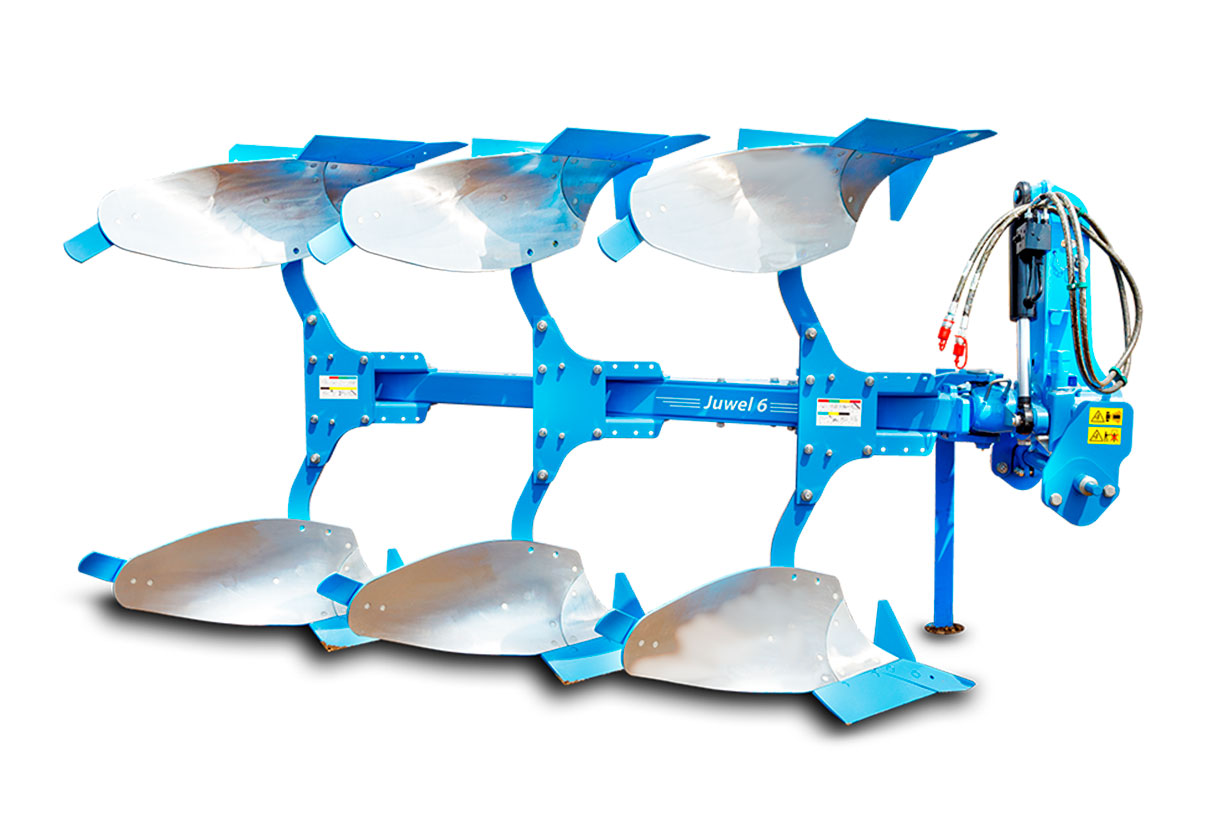

Juwel 6 M

  • From 2 to 4 furrows
  • Tractors between 50 - 75 hp

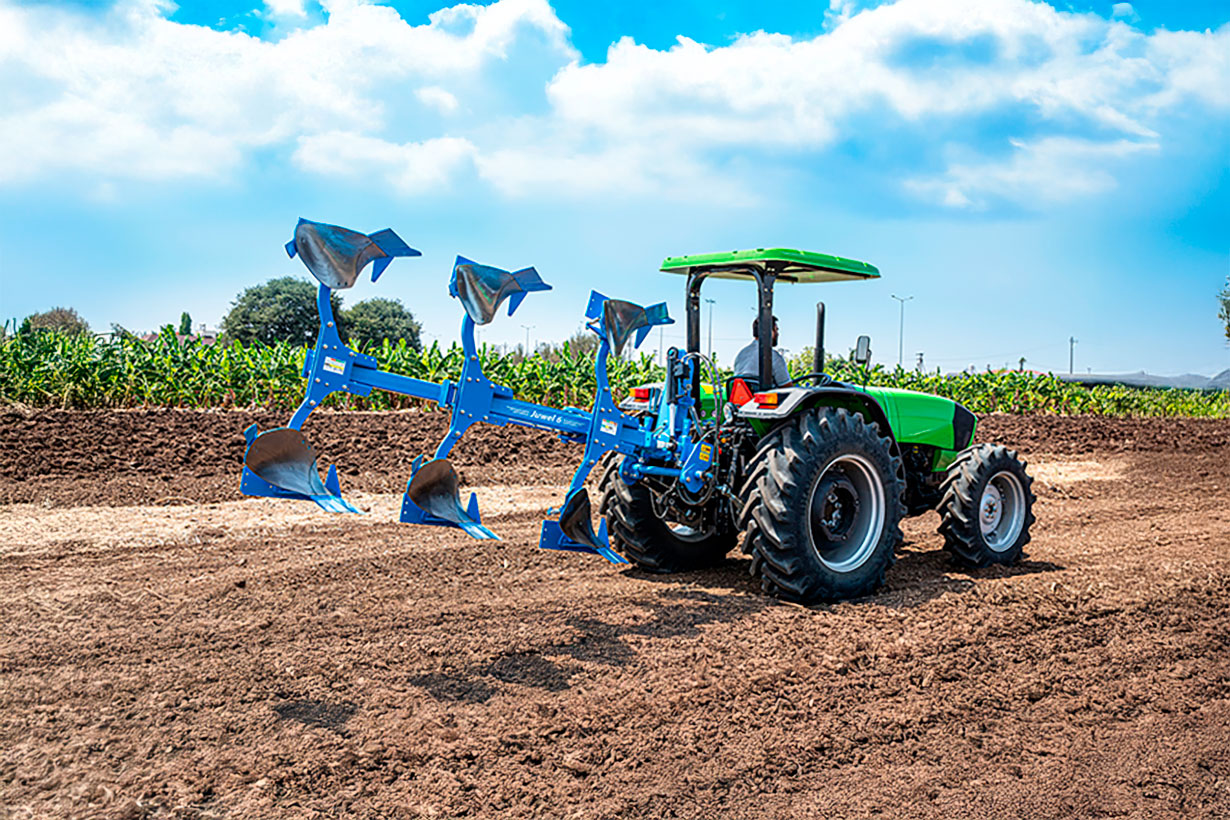

LEMKEN Juwel 6 M – The Strongest Plough for Indian Agriculture

Power. Precision. Performance.

Introducing the LEMKEN Juwel 6 M, our most robust and advanced plough designed specifically for Indian farming conditions. Built for modern, high-horsepower tractors, this plough combines German engineering excellence with localized manufacturing, offering Indian farmers strength, efficiency, and affordability.

Engineered for Indian Fields

Manufactured in India, the Juwel 6 M is tailored for large-scale and mechanized farming. Its high-strength frame, customizable features, and advanced soil preparation capabilities ensure optimum crop yield and efficient fieldwork.

Features

  • Large Underframe and Interbody Clearance: Provides ample space to handle large amounts of soil and crop residues, improving efficiency and preventing clogging.
  • Strong Frame: Constructed using a 110x110 seamless tube, ensuring high durability and the ability to withstand tough soil conditions.
  • Heavy-Duty Turnover Axle: Well-supported for smooth and reliable turnover of the plough, making it highly durable even during intensive use.
  • Adjustable Working Width: Offers four adjustable working widths (30, 35, 40, and 45 cm) via brackets, providing flexibility to farmers based on field conditions and crop type.
  • Optiquick© Adjustment Centre: Patented technology ensuring optimal plough settings, minimizing wear on the plough and reducing fuel consumption by adjusting pulling force precisely.

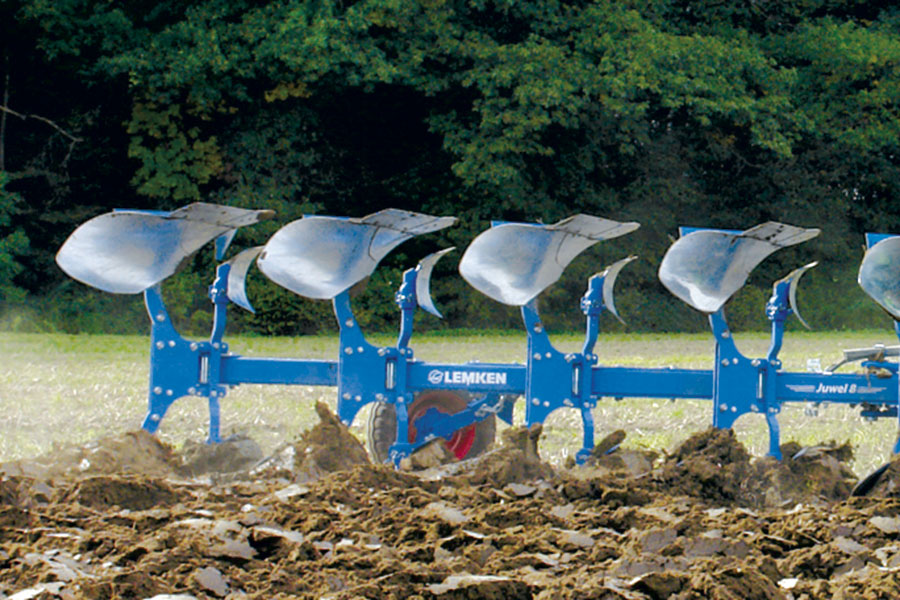

Body Spacing

The long body spacing, plough bodies attached to the side of the frame, and the shape of the legs, create large clearances between the plough bodies and skimmers.Large under frame and inter-body clearance help to avoid blockages even at a narrow working width of plough.

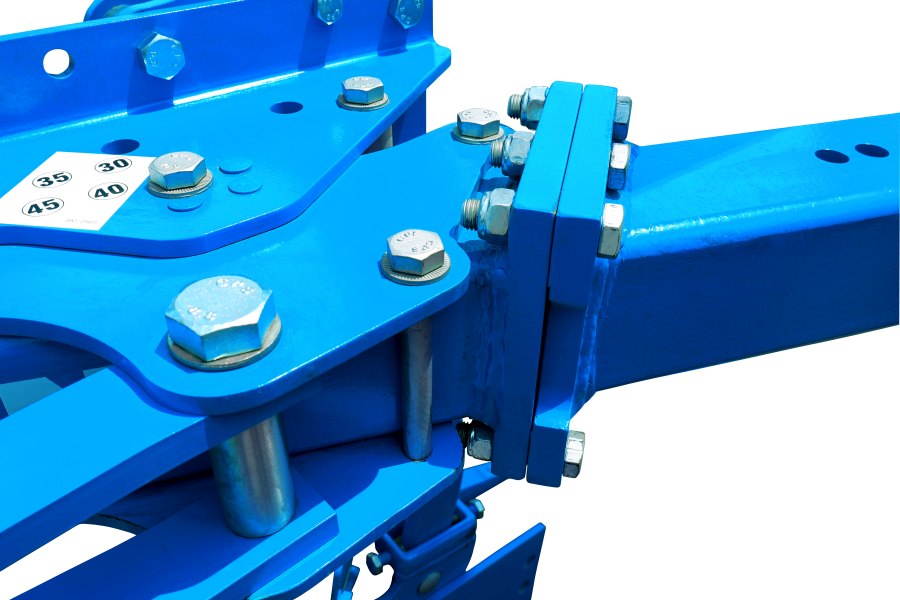

Strong frame structure for all requirements

The robust, thick-walled square tube made of micro-alloyed, fine-grained, special steel provides the strong foundation for the new frame structure.The frame can be extended subsequently by a pair of plough bodies.

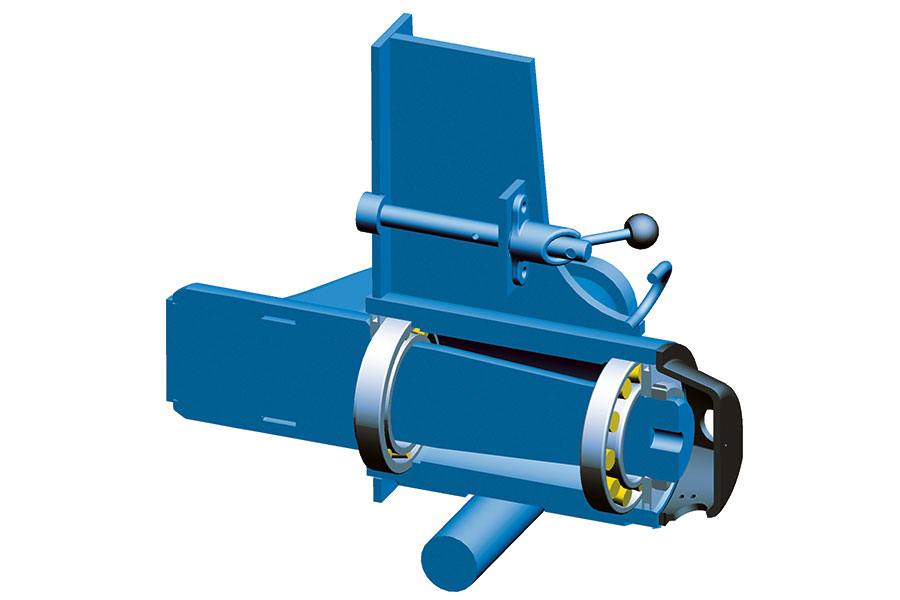

Well supported Turnover axle

The short, stable turnover axle can withstand heavy-duty impact and constant loads. It is shaped for optimum resistance, runs in tapered rollers, and can be lubricated centrally. Due to the heat-treated steel used, the wear-resistant pivot bearing is extremely durable and guarantees a long service life.

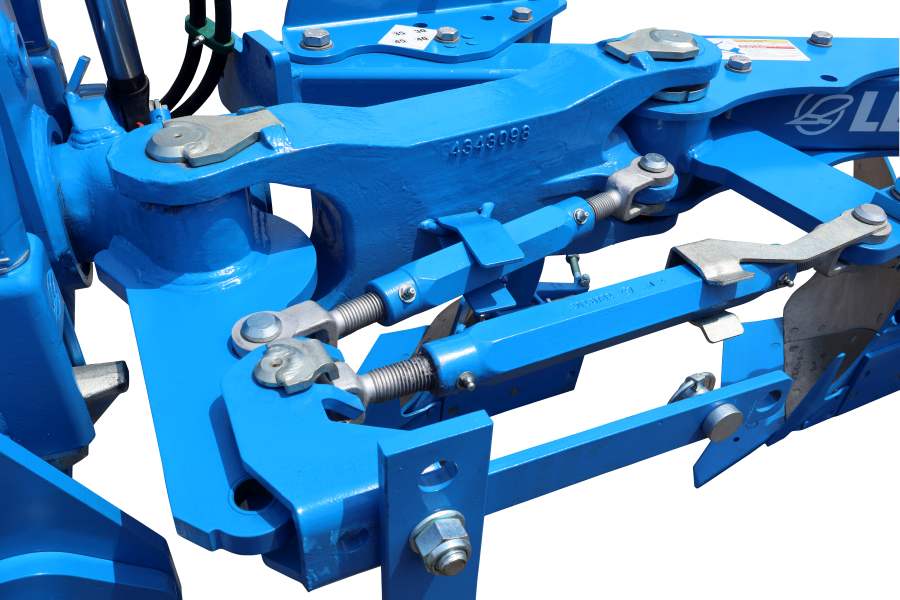

The OptiQuick setting centre

The LEMKEN OptiQuick setting system ensures that ploughing is free from side forces. To ensure high stability and long service life, the bearings have wear resistant bushes and hardened pins. The bearings can be lubricated.• High material density and firm attachment provide for resistance to wear and breakage. The wear zones of the share wings are significantly larger than with conventional shares

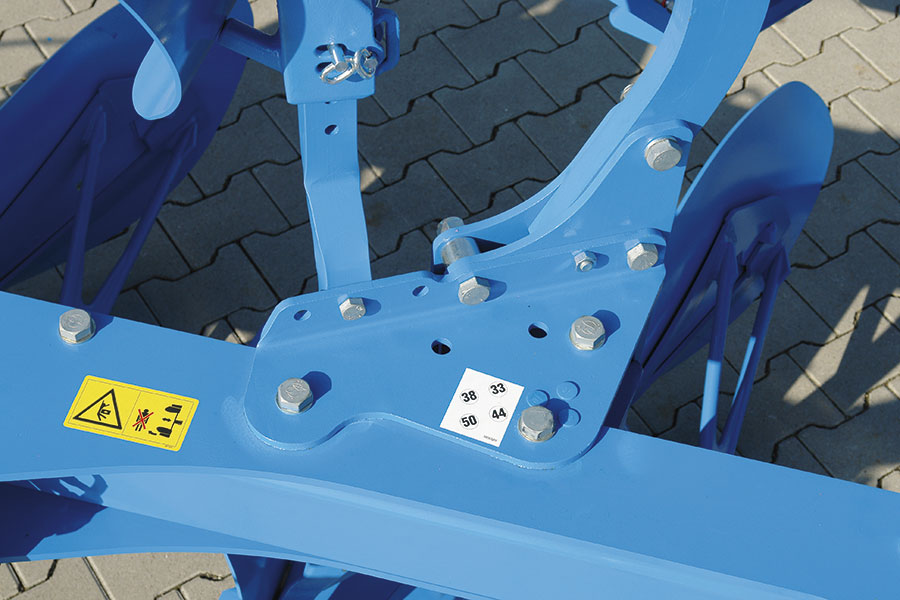

Adjustable working width with brackets

The adjustment brackets securely bolted to the frame provide great strength, reliability, and high fitting accuracy.  When the central bolt has been loosened, four working widths can be set between 30 to 45 cm. Skimmers and disc coulters are adjusted automatically as a new furrow width is set.

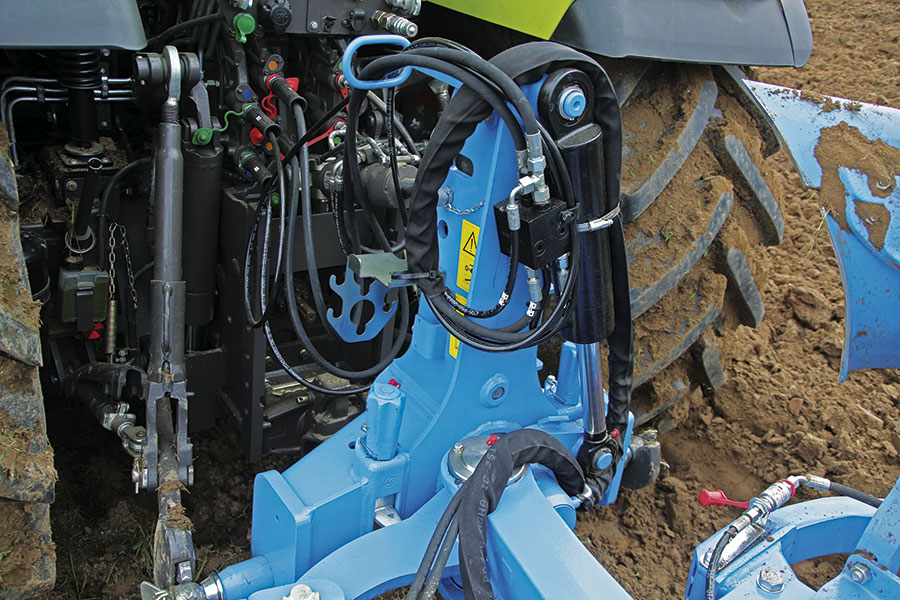

Mechanical tilt adjustment, separate for each side

The tilt of Juwel 6 ploughs is adjusted easily and precisely via a cap nut and stopper; this adjustment can be made separately for each side. They are easy to handle and protect threads against dirt. This ensures that the tilt adjustment will keep operating smoothly.

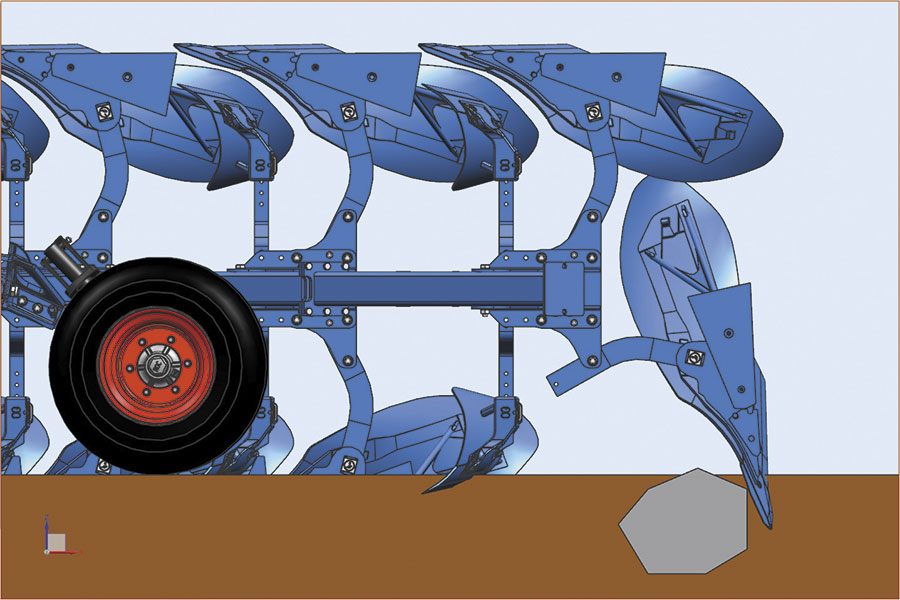

Protection from obstacles

AII LEMKEN overload protection systems protect against damage from the share point colliding with underground obstacles. The overload protection in all Juwel 6 ploughs features double-cut shear-off protection with a shear bolt as standard.

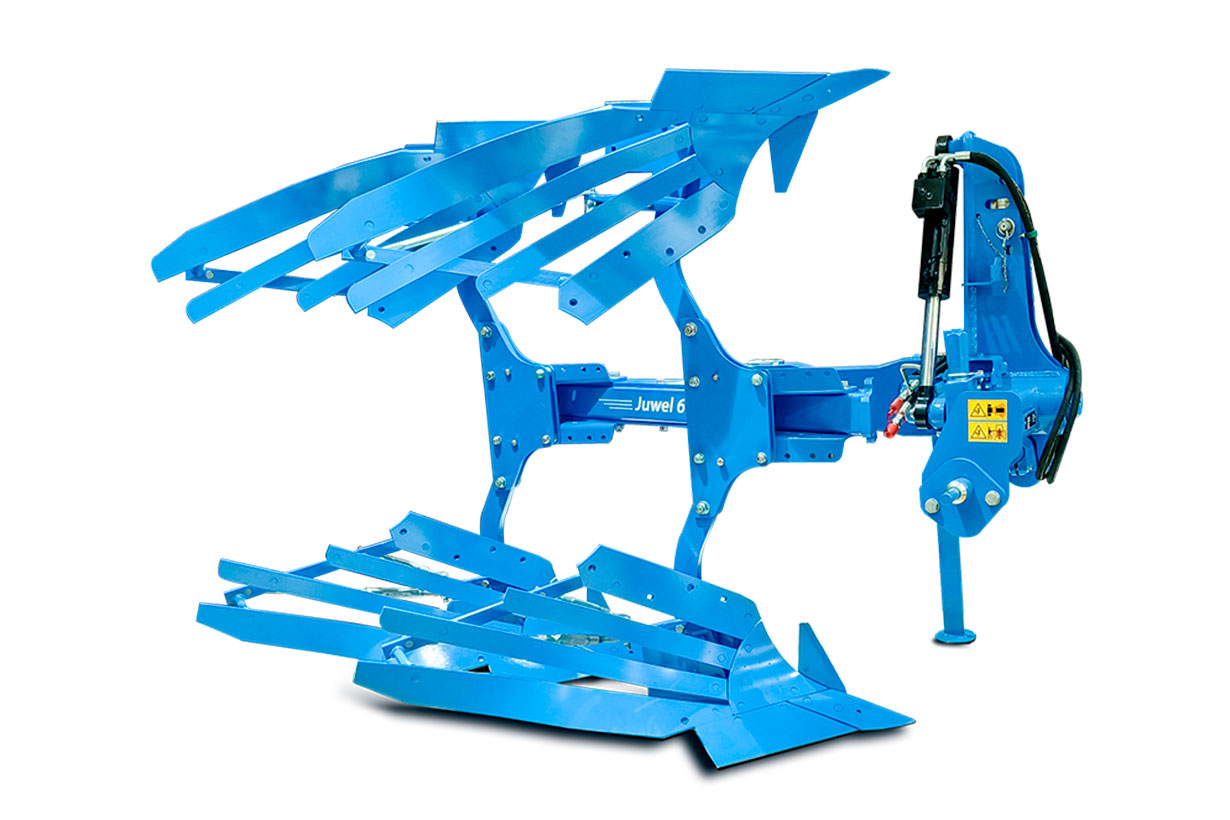

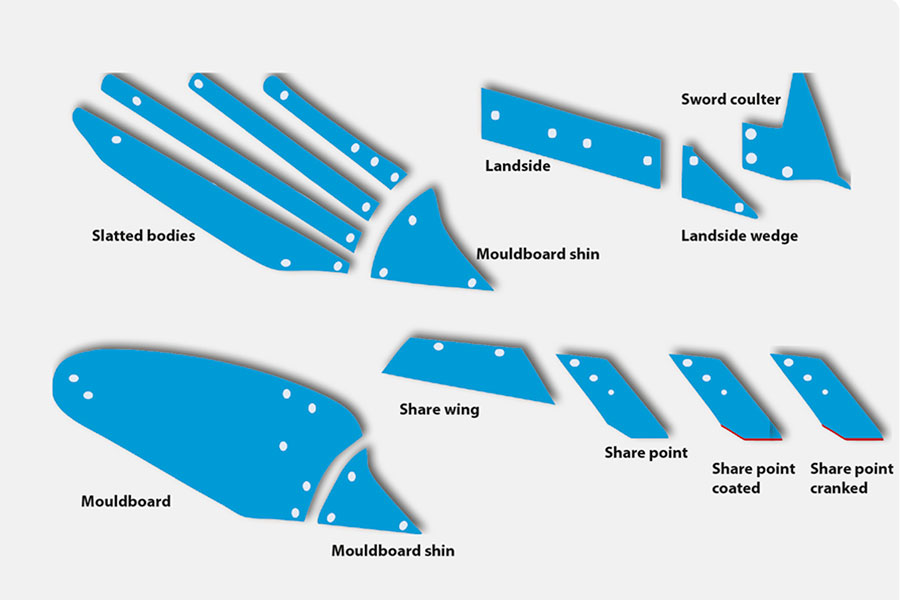

Cost Effective Plough Body.

The frog of the Dural body is tempered and extremely strong. The pitch of the plough bodies is adjustable to ensure consistently good penetration of the plough into the soil. The smooth transition from the share to the mouldboard and the low-resistance shape make the plough eveneasier to pull. The slats of the slatted bodies are made of thick, fully hardened special steel and can be individually replaced.

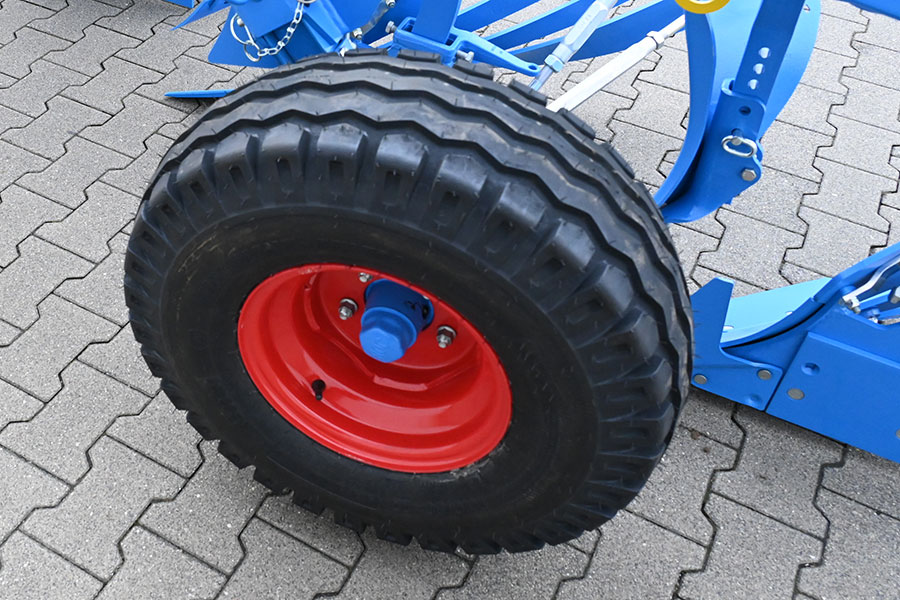

Pendulum Wheel for Depth Control.

The special design of the pendulum wheel guarantees a large ground clearance and ensures an optimum working position and a safe and shock-free swivelling of the wheel during the turning process. Depending on the number of furrows and set working width, it is possible to plough all the way up to ditches, field boundaries, and fences.

Technical Data Juwel 6 M
Interbody Clearance (cm) 90 90 90 90
Underframe Clearance (cm) 80 80 80 80
Working Depth (cm) 15-45 15-45 15-45 15-45
­­­­Weight (Kg) 555 715 710 870
Tractor output (HP) 55-75 65-95 65-95 75-115
Working width (cm) ­­­­­­60-90 90-135 90-135 120-180
Number of furrows 2+1 3 3+1
All specifications, dimensions and weights are subject to continuous technical development and are therefore not binding. The weight specifications always refer to the basic equipment, subject to change.

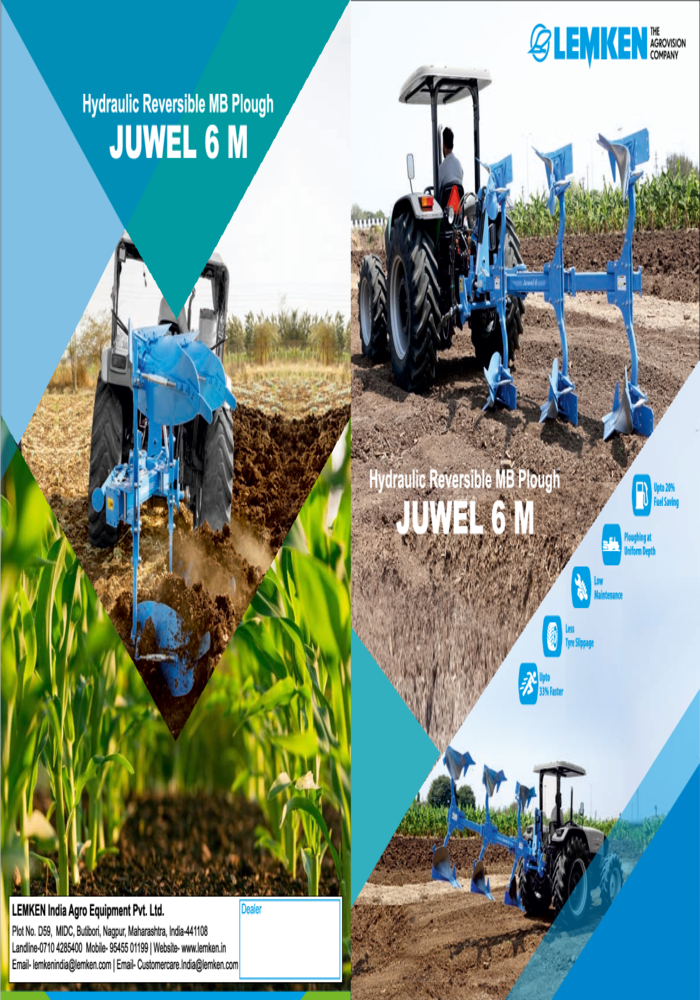

Leaflets
